Locating the connectors on the front of your computer

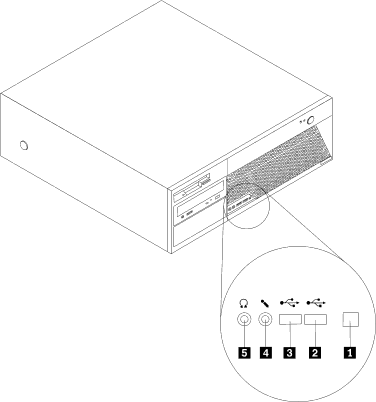

The following illustration shows the locations of the connectors on the front of the computer.

Note: Not all computer models will have the following connectors.

1

3

9

4

1IEEE 1394 connector

4Microphone connector

2USB connector

5Headphone connector

3USB connector



Chapter 1. Installing options 7
