28CHAPTER 2: INSTALLING ACCESS POINT HARDWARE

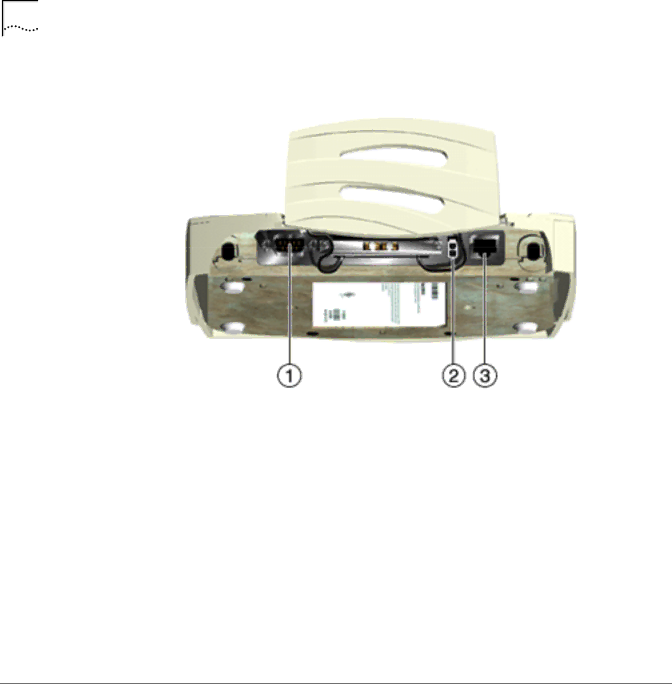

Network Connection Locate the Ethernet port and power plug on the back of the AP, as shown by items 2 (power plug) and 3 (Ethernet port) in the ﬁgure below. Item 1 is the serial port.

Ethernet conﬁgurations vary according to the environment. Determine the

Ethernet wiring to connect the AP, 10BASE-T UTP, or single cell.

10BASE-T UTP Use a 10BASE-T connection for multiple APs or an AP attached to a wired UTP Ethernet hub. Normal 10BASE-T limitations apply.

1Plug the data cable with an RJ-45 connector into the AP Ethernet port.

2Plug the other end of the data cable into the LAN access port (possibly a hub or wall connection).

3Add additional APs as needed.

Single Cell The single-cell connection option allows a single AP to connect wireless clients without a wired network. Wireless clients appear as peers, as in any Ethernet environment.

Power Options	■	Standard power supply: 115/230VAC, 50/60Hz, 24V/14.
		■	US line cord Part Number: 23844-00-00
	■	Remote power distribution system, Part Number: AP-PS-11
		■	Refer to application note AP-PS-01 located on the 3Com Technologies
			web page.
