Linksys WVC54GC manual Power on the Camera Screen

Page 20

Compact Wireless-G Internet Video Camera

6.Plug the included power adapter into the Camera’s Power port. Plug the other end into an electrical outlet. Click the Next button.

7.Make sure the LED is lit on the Camera’s front panel. If it is not lit, make sure the cables are properly connected to the Camera. Click the Next button.

Chapter 5: Setting up and Mounting the Compact Wireless-G Internet Video Camera

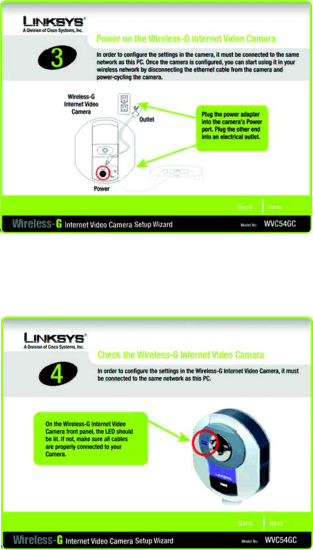

Figure 5-5: Power on the Camera Screen

Figure 5-6: Check the LED Screen

12
