Rosewill user manual Wired Internet Camera RXS-3211

Page 11

Wired Internet Camera RXS-3211		User Manual

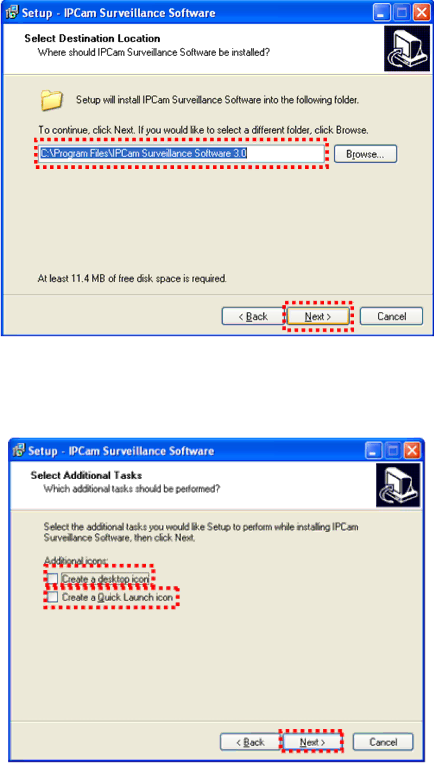

4.You can specify the destination folder of software installation; you can just use the default folder, and click “Next” to continue.

Figure 1.7-3

5.If you need installation program to create a desktop icon or a quick launch icon for you, click all items you need here, and click “Next” to continue.

Figure 1.7-4

10
