CHAPTER 1: Hardware Descriptions
appliance if the power goes out, prompting the appliance to shut itself down properly.
UPS devices from American Power Company (APC) are currently supported by the Firebox
Vclass power management firmware. Check the WatchGuard Web site (www.watchguard.com) for
updated information on complete UPS support.
NOTE
In the event of a power failure, this security appliance, if left connected to the power source, will automatically restart itself after electrical power has been restored. You do not have to press either the Power button on the front or the power supply switch on the back of the appliance.
The Firebox V100 model

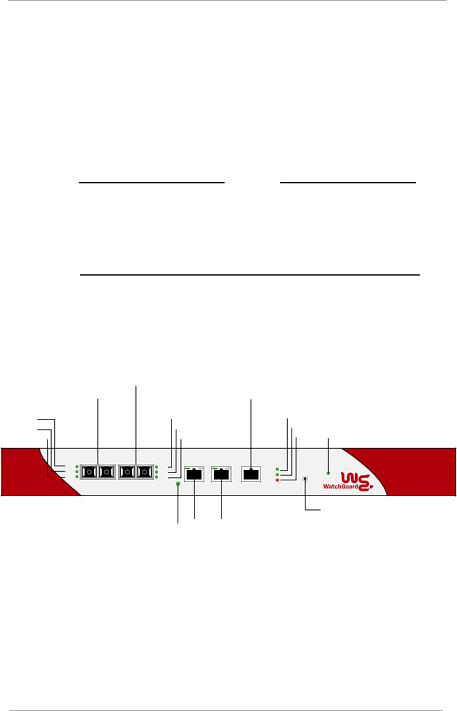

The front panel of the Firebox V100 security appliance con- tains the features shown in the following illustration.
0 (Private) | 1 (Public) |
|
|
| Console Interface |
| ||||||||
|
|
| ||||||||||||
|
|
|
|
|
|
|
|
|
| |||||
|
|
|
|
|
|
|
|
|
| |||||
Rx |
|
|
|
|
|
|
| Rx |
| Ready |
| |||
|
|
|
|
|
| |||||||||
Tx |
|
|
|
|
|
|
| Tx |
| Admin | Power LED | |||
|
|
|
| |||||||||||
Link |
|
|
|
|
|
|
|
|
| Link |
| Alarm |
| |
|
|
|
|
| ||||||||||
Rx | Rx | 100 | 10 | 100 | 10 |
|
|
|
| Ready |
| ||
Tx | Tx |
|
|
|
| |
|
|
| Admin | Power | ||
Link | Link |
|
|
| ||
|
|
| Alarm |
| ||
|
|
|
|
|
| |
|
| HA | HA2 | HA1 | Console | Reset |
|
|
|
|
|
|
Reset port
High Availability |
| High Availability | ||
| ||||
Status LED |
|
|
| (HA Interface) |
Gigabit interfaces
Two Gigabit Ethernet interfaces, labeled 0 and 1 (corresponding to Private and Public), act as the primary conduits through which network traffic
