CHAPTER 1: Hardware Descriptions
Ready
Blinks when the appliance is powering up or powering down. It is steadily lit when the appliance is ready for network traffic.
Admin
Illuminates when a user or system administrator is connected to the Firebox Vclass appliance by means of the Vcontroller or the WatchGuard CLI.
Alarm
Indicates when an alarm is activated. For more information on alarms, see the Firebox Vclass User Guide.
Reset Port
Allows you to insert a straight pin or paperclip and press an internal Reset switch that restarts the appliance. This is an alternative to unplugging and replugging the power cord.
Power LED
Indicates whether the appliance has been fully turned on and is ready for administration or use.

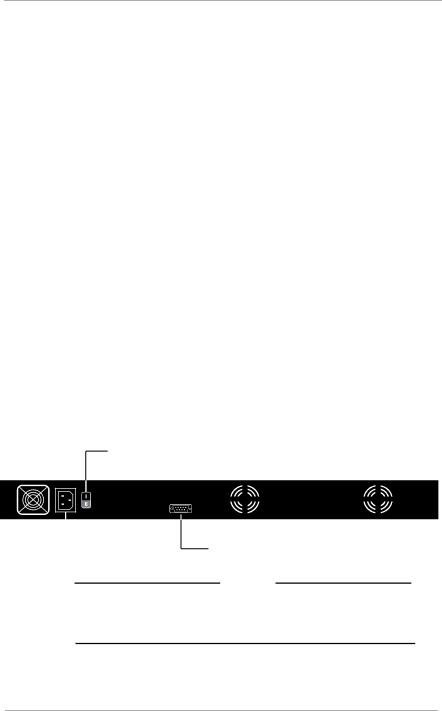

The back panel of a Firebox V100 includes the features shown in the following illustration.l
Power supply switch
AC power cord
"UPS" port
NOTE
Do not connect any Firebox Vclass appliance to a source of power that supplies the wrong voltage. Doing so will damage the appliance and void the warranty.
