Zebra Technologies 980293-001 user manual Load Labels

Page 13

Installation and Operation

Load Labels - continued

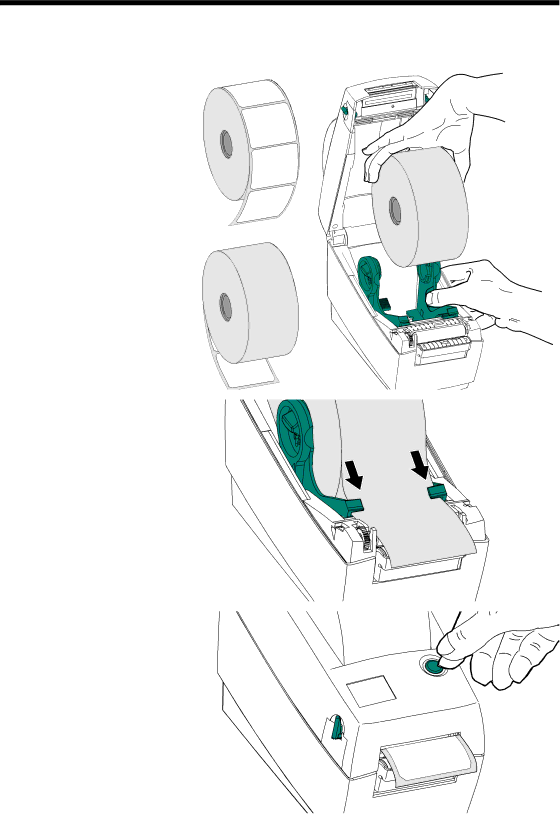

Install Roll

Thread Through

Guides

Close Cover

Tap Feed Button

If the indicator remains dark, see Appendix A -

Troubleshooting.

980293-001 Rev. A

7
