12 HARDWARE INSTALLATION

2.4 Connector Description

2.4.1 Primary/Secondary IDE Connectors

This motherboard supports two 40-pin IDE connectors marked as IDE1 (primary channel) and IDE2 (secondary channel). Each channel supports two IDE devices for a total of four devices. Connect your Hard Disk (the main one if you are using more than one) to the “Master” connector (at the end of the cable) and connect it to IDE1 (see important note below). If your HDD supports Ultra DMA/66, you must use an 80-wire cable, otherwise the HDD won’t be able to reach this speed.

If you intend to operate two IDE devices from the same channel, one device must be set to “Master” mode and the other to “Slave” mode. A Hard Disk Drive, CD ROM Drive or other IDE device can have either setting, depending on device’s jumper setting. Please refer to the device’s manual for more information.

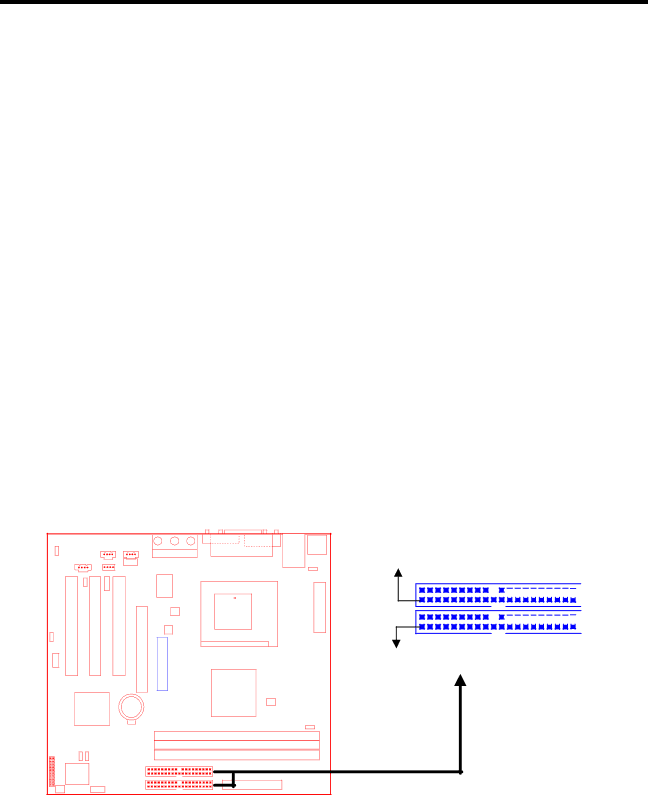

NOTE: The Connectors must be attached to the IDE channels correctly. Make sure that the red stripe on the edge of the ribbon cable (this may be faint and could be a dotted line) is the nearest to PIN 1 (on the left as the motherboard is shown in the picture below).

Transcend

P I N 1 IDE

Secondary IDE Connector

I D E 2

I D E 1

P I N 1

Primary IDE Connector



IDE Connectors

Image 16
