Setup Procedures

Connection to a Macintosh computer

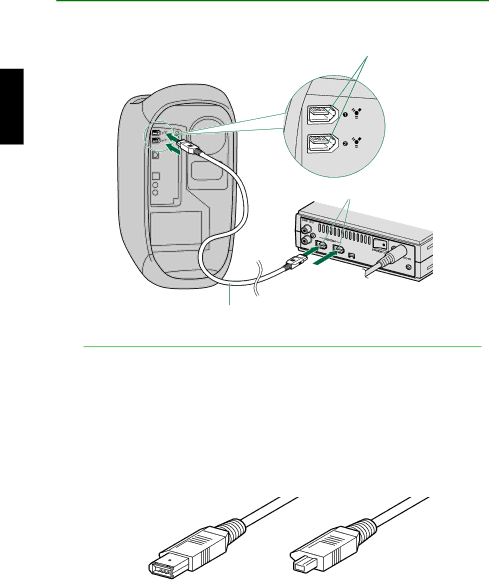

IEEE1394 (FireWire) ports

IEEE1394 ports

IEEE1394 interface cable

Notes

CRW2200IX

rear panel

•You can connect the interface cable to either IEEE1394 port on the CRW2200IX drive.

•The IEEE1394 standard defines the maximum cable length of a single interface cable as 4.5 meters. Bear this in mind if using an interface cable longer than the included one.

If your computer has a 4-pin IEEE1394 port connector (especially common on notebook computers), use a cable with a 6-pin connector on one end and a 4-pin connector on the other.

6-pin IEEE1394 connector

4-pin IEEE1394 connector
