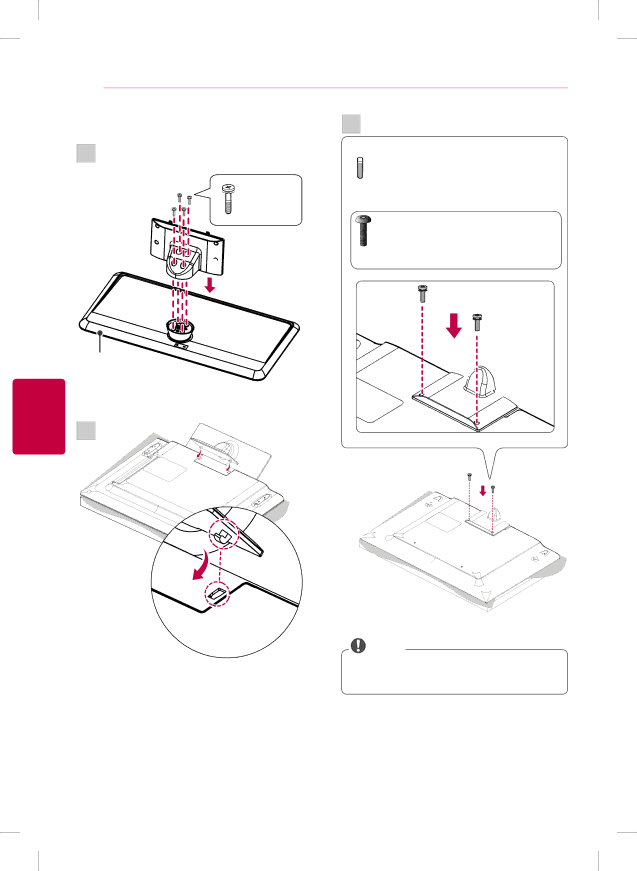

14ASSEMBLING AND PREPARING

(For 32/39LY340H)

1

4 EA

M4 x L20

Stand Body

Stand Base

ENGLISH

2



3

2 EA

M4 x L20

or

Tighten the two Torx screws

2 EA (provided as parts of the TV) with a Torx driver bit (not provided as parts of the TV).

NOTE

••When you install the screws, make certain they are in the correct locations for the model you have.

Image 14
