QIP2500 User Guide

CONNECTING YOUR QIP2500

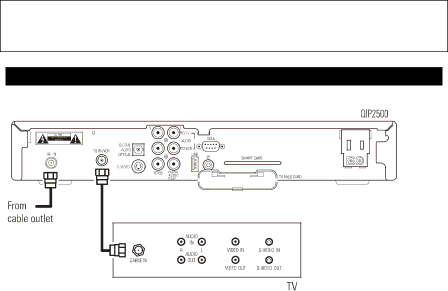

Standard TV Cabling

Use 75-ohm coaxial cables to connect your set-top to a standard TV. This is the most common cable connection and it provides all of the basic features of the QIP2500.

If you connect the and to the coaxial to channel 3 or 4.

coaxial cable to the TO TV/VCR connector on the set-top CABLE IN connector on the TV, you must tune your TV

The method shown will not provide stereo audio. Connect the set-top to the TV using standard RCA audio cables (left and right) to receive stereo audio on all channels, when available.

11
