Connecting to External Equipment

You can connect many types of external equipment to your TV. To view external source images, select the input source from INPUT on the remote control unit or on the TV. (See pages 15 and 23.) For connecting the TV to external equipment, use commercially available cables.

CAUTION

To protect equipment, always turn off the TV before connecting any external equipment.

Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.

Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box

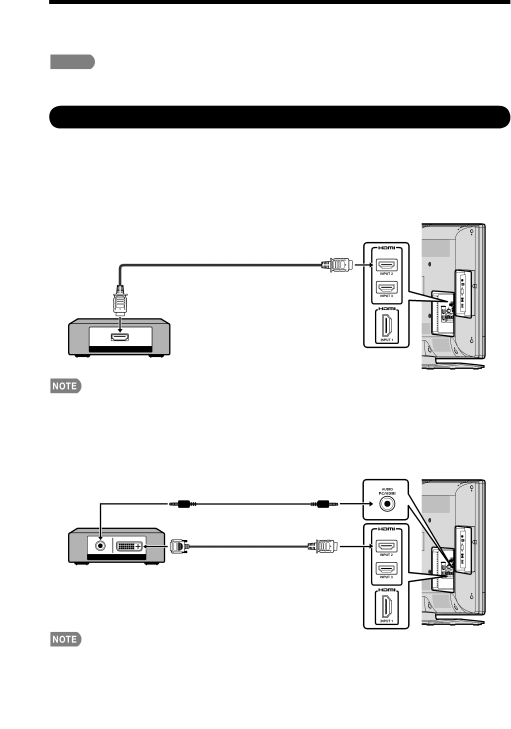

When using HDMI cable (INPUT 1, 2, or 3):

The HDMI (High Definition Multimedia Interface) terminal is an audio-video interface that enables a connection for audio and video signals using a single cable. The HDMI terminal supports high-resolution video input.

Blu-ray disc player • DVD player

• HD cable/satellite set-top box

Back and side panel inputs

HDMI-certified cable

HDMI OUT

To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and set the equipment to 1080p output.

Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

When using DVI-HDMI conversion cable (INPUT 1, 2, or 3):

Blu-ray disc player • DVD playerBack and side panel inputs

• HD cable/satellite set-top box

Ø 3.5 mm stereo minijack cable

DVI-HDMI conversion cable

AUDIO

DVI OUT

When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to connecting a DVI-HDMI conversion cable to the INPUT 1,2,3 (HDMI) terminal, connect a

Ø 3.5 mm stereo minijack cable to the AUDIO PC/HDMI terminal.
