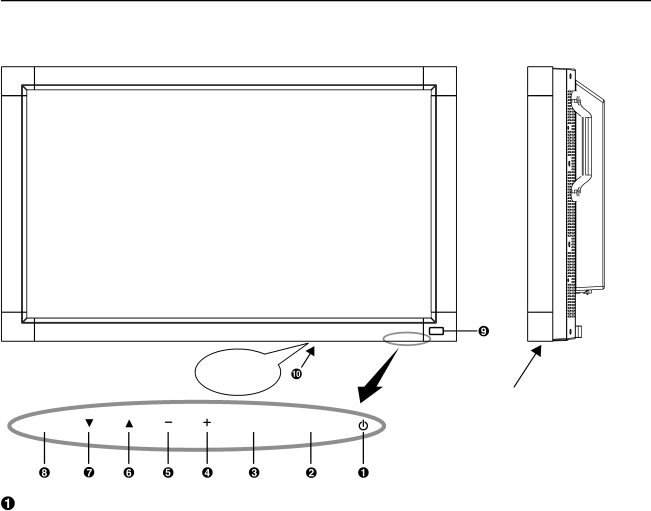

Parts Name and Functions

Control Panel

OFF ON

Button Location

EXIT

INPUT MUTE

POWER button ()

Switches the power on/off. See also page 19.

MUTE button

Switches the audio mute ON/OFF.

INPUT button

Acts as SET button with OSD menu.

(Toggle switches between [RGB1], [RGB2], [RGB3], [DVD/HD], [VIDEO<S>] and [VIDEO] .)

PLUS (+) button

Acts as (+) button to increase the adjustment with OSD menu. Increase the audio output level when the OSD menu is turned off.

EXIT button

Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button to move to previous menu with OSD menu.

Remote control sensor and Power indicator

Receives the signal from the remote control (when using the wireless remote control). See also page 9.

Glows green when the LCD monitor is in active and glows red when the LCD is in POWER OFF mode. When the LCD is in power save mode, it will glow both green and red. When SCHEDULE is enabled, it willl blink green and glow red. See page 20. In the case of where a failure is detected, it will blink red.

MINUS (-) button

Acts as (-) button to decrease the adjustment with OSD menu. Decreases the audio output level when the OSD menu is turned off.

UP () button

Activates the OSD menu when the OSD menu is turned-off. Acts as button to move the highlighted area up to select the adjustment with OSD menu.

Main Power Switch

On/Off Switch to turn main power on/off.

NOTE: Control Key Lock Mode

This control completely locks out access to all Control Key functions. To activate the control key lock function, press both of “” and “” and hold down simultaneously for more than 3 seconds. To resume back to user mode, press both of “” and “” and hold simultaneously for three (3) seconds.

DOWN () button

Activates the OSD menu when the OSD menu is turned-off. Acts as button to move the highlighted area down to select the adjustment with OSD menu.

1-7
