Panasonic NV-HS830, NV-HS880 operating instructions Auto Setup Function

Page 7

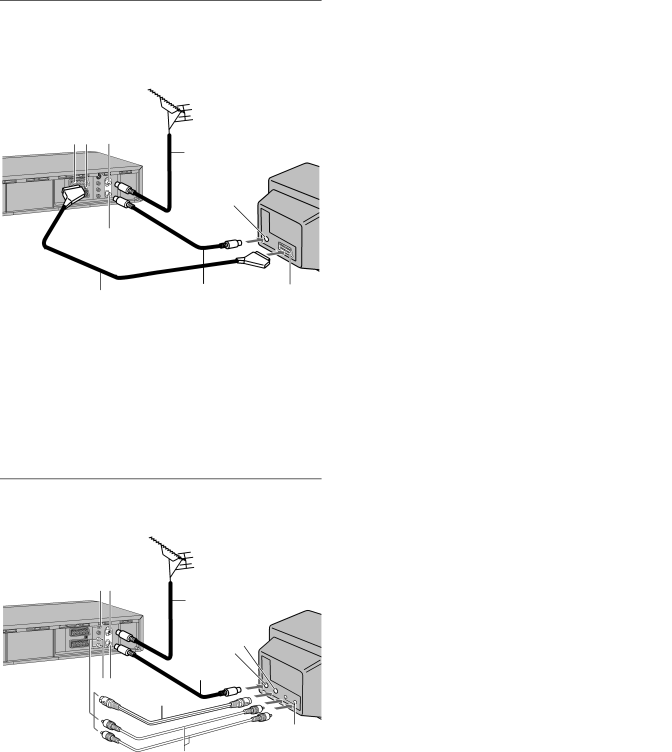

If you are connecting your VCR to a TV using RF coaxial cable and 21-pin Scart cable, then follow the steps.

(AV Connection)

RF Coaxial cable must be connected to watch TV channels even if 21-pin Scart cable is used to connect VCR to TV.



5



1 2

3





6

7





Auto Setup Function

The Auto Setup function automatically tunes all available TV stations and sets the VCR’s clock to the current date and time.

1) Press the [VCR-ON/OFF] (1) to

Country

Panasonic VCR

turn on the VCR.

Belgien

Deutschland

Belgique

Österreich

The Country setting menu

België

Portugal

Danmark

Suomi

appears on the TV screen.

España

Sverige

Ελλάδα

Schweiz



France

Suisse

2) Press the [Cursor] (38) 3421.

Italia

Svizzera

Nederland

others

Select the country where you are

Norge







using the VCR.







8



4





11

10

9





1 AV1 21-pin Scart socket

7 TV (not supplied)



3)Press the [OK] (24). The VCR’s Auto Setup automatically starts and tunes all available TV stations and also sets the clock. This takes about 5 minutes.

When the indication appears on the VCR display, the Auto Setup is complete.

Auto-Setup

Panasonic VCR

Country

: others

Tuning

: Ch 21













2

Normal/S-Video Output

8

Aerial Input socket

3

Aerial Input socket

9

21-pin Scart socket

4

Aerial Output socket

10

RF Coaxial cable (supplied)

5

Aerial (not supplied)

11

Fully-wired 21-pin Scart cable

6

Aerial lead (not supplied)



(not supplied)

Hint:

If the TV set is equipped with a 21-pin Scart socket that features Y/C signal separation, set the [Normal/S-Video Output] switch on the rear panel to [S-VIDEO OUT] so that you can play back with high picture quality and use a fully-wired 21-pin Scart cable (not supplied) to connect the VCR to the TV.

If you are connecting your VCR to a TV using S-Video cable, then follow the steps. (S-Video Connection)

RF Coaxial cable must be connected to watch TV channels.

5

1 3







6

7















9









8





2 4



13















12













10





11



1

S-Video Output socket

8

Aerial Input socket



2

Audio Output socket

9

S-Video Input socket



3

Aerial Input socket

10

Audio Input socket



4

Aerial Output socket

11

Audio cables (not supplied)

5

Aerial (not supplied)

12

S-Video cable (not supplied)

6

Aerial lead (not supplied)

13

RF Coaxial cable (supplied)

7TV with S-Video Input socket (not supplied)

4)Press the [MENU] (7) for more than 5 seconds.

The RF output channel number appears on the VCR display.

The initial setting is channel 36.

5)Press the [Numeric] (2) [0].

The displayed RF output channel number changes to [– –].

6)Press the [OK] (24) to conclude the setting.

To cancel the Auto Setup before it has finished Press the [EXIT] (27).

When the clock setting menu appears after Auto Setup has finished

1)Press the [Cursor] (38) 3421 to set the correct time and date.

2)Press the [OK] (24) to conclude the setting.

To confirm that the TV stations have been tuned correctly by the Auto Setup function

See page 18.

When no station has been set, confirm all connections of the VCR again and restart the Auto Setup

See page 19.

When the station names and/or channel numbers have not been set correctly

See page 18.

Hint:

If you select [Schweiz], [Suisse] or [Svizzera] on the Country setting menu, the other setting menu appears automatically to let you set [Power save] to [ON]. In this setting, the VCR’s power consumption is minimised when it is off (Standby mode). To turn the VCR on, keep the [VCR-ON/OFF] (1) pressed on the VCR main unit, not with the remote control.

(continues on the next page)

7
