JVC HR-J4003UM manual Front Display Panel, Remote Control Provided

Page 37

37

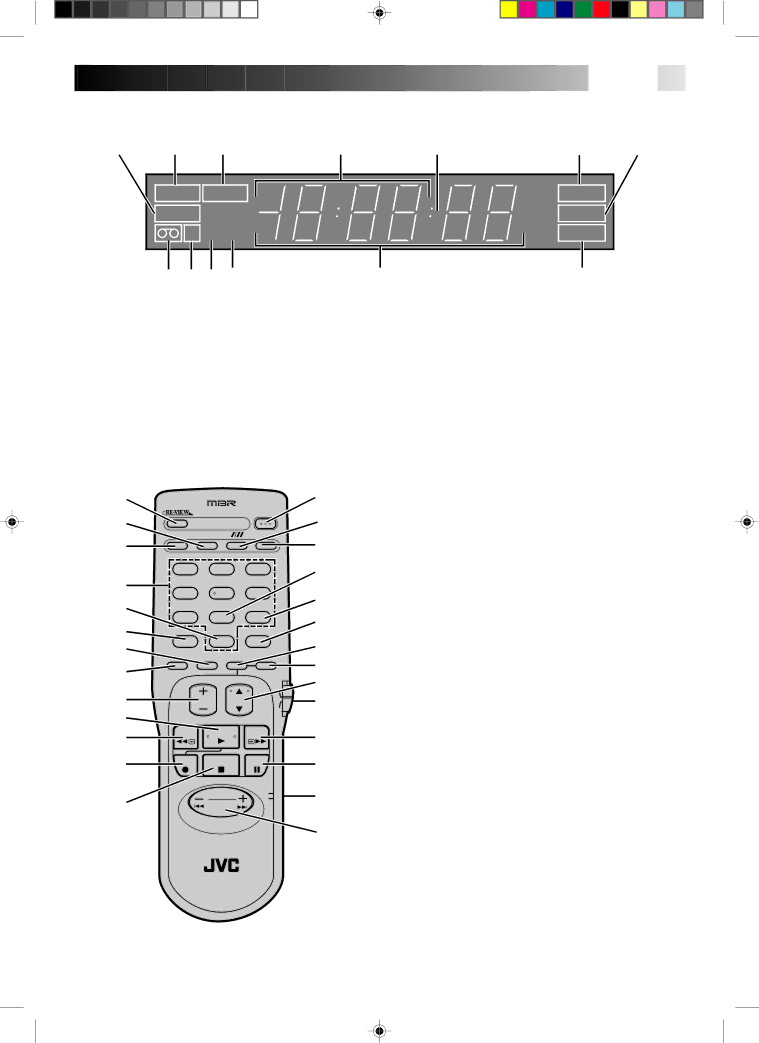

FRONT DISPLAY PANEL

1

2

3

4

5

6

7

I T R TIMER







R E C

VIDEO SPAM







PLAY

M EP

H

M

S

PAUSE

PM



8 90 !

@

#

1 Video Mode Indicator (pg. 5)



8 “Cassette Loaded” Mark

2 Instant Timer Recording Indicator (pg. 22)



9 Counter Memory Mark (pg. 16)

3 Timer Mode Indicator (pg. 23)



0 Tape Speed Indicators (pg. 11)

4 Clock Display (pg. 6)



! AM/PM Indicators (pg. 6)

5 Counter Display (pg. 16)



@ Channel Display [“AU” for AUX mode]

6 Recording Mode Indicator (pg. 11)



(pg. 27)

7 Play Mode Indicator (pg. 10)



# Pause Mode Indicator (pg. 11)

REMOTE CONTROL (Provided)

1

2

3

4

5

6

7

8

9

0

!

@

#

TV/VIDEO DISPLAY

1

2

4

5



DAILY(M-F)

7

8

C.RESET/CH SKIP

AUX

CANCEL

0

SKIP

SEARCH C.MEMORY OK

ADD

TV CH

VOL.

REW PLAY

REC STOP

PUSH JOG



$

POWER

%

ENTER

^

OSD



3

&



6

*

WEEKLY

9

(



TIMER

)



MENU

q



TV

w

VCR

e

FF

r



PAUSE

t



A

y

B





u

1 Instant REVIEW Button (pg. 16)

2 DISPLAY Button (pg. 16)

3 TV/VIDEO Button (pg. 5)

4 NUMBER Buttons (pg. 6)

5 “AUX” Mode Select Button (pg. 27)

6 CANCEL Button (pg. 24) Counter [C.] RESET (pg. 16) Channel [CH.] SKIP Button (pg. 9)

7 Counter [C.] MEMORY Button (pg. 16) ADD Button (pg. 9)

8 SKIP SEARCH Button (pg. 15)

9 Volume [VOL] +/– Buttons (pg. 31)

0 PLAY Button (pg. 10)

! Rewind [REW] Button (pg. 10)

@ Record [REC] Button (pg. 11)

# STOP Button (pg. 10)

$ POWER ON/OFF Button (pg. 5)

% Recording Speed [SP/EP] Button (pg. 11)

^ ENTER Button (pg. 11)

On-Screen Display [OSD] Button (pg. 14)

& DAILY Timer Recording Button (pg. 23)

* WEEKLY Timer Recording Button (pg. 23)

( TIMER Button (pg. 23)

) OK Button (pg. 5)

q MENU Button (pg. 5)

w Channel [CH] Buttons (pg. 5)

e TV/VCR Switch (pg. 31)

MULTI BRAND

REMOTE CONTROL UNIT

r Fast-Forward [FF] Button (pg. 10)

t PAUSE Button (pg. 11)

y A/B Code Select Switch (pg. 28)

u PUSH JOG Button (pg. 12)
