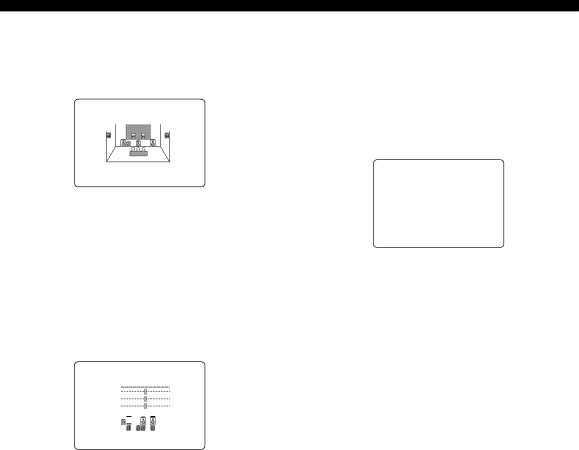

Yamaha RX-V650 owner manual 02ASUBWOOFER Phase, Speaker distance CSP Distance

Page 60

SET MENU

Subwoofer phase SUBWOOFER PHASE

If bass sounds are lacking or unclear, use this feature to switch the phase of your subwoofer.

Choices: NORMAL (normal), REVERSE (reverse)

02ASUBWOOFER PHASE

)NORMAL

Select NORMAL if you do not want to reverse the phase of your subwoofer.

Select REVERSE to reverse the phase of your subwoofer.

Speaker level B)SPEAKER LEVEL

Use these settings to manually balance the speaker levels between the front left or surround left speakers and each speaker selected in SPEAKER SET (page 56).

Choices: –10.0 dB to +10.0 dB

B)SPEAKER LEVEL

.

FR adjusts the balance of the front left and front right speakers.

C adjusts the balance of the front left and center speakers.

SL adjusts the balance of the front left and surround left speakers.

SBL* adjusts the balance of the surround left and surround back left speakers.

SBR* adjusts the balance of the surround left and surround back right speakers.

SR adjusts the balance of the surround left and surround right speakers.

SWFR adjusts the balance of the front left speaker and subwoofer.

PRES adjusts the balance of the front and presence speakers.

*SB will be displayed if you selected only one surround back speaker in SURR B L/R SP (page 57).

y

To calibrate, use the test tone feature (see page 53).

Speaker distance C)SP DISTANCE

Use this feature to manually input the distance of each speaker and adjust the delay applied to respective channel. Ideally, each speaker should be the same distance from the main listening position. However, this is not possible in most home situations. Thus, a certain amount of delay must be applied to the sound from each speaker so that all sound will arrive at the listening position at the same time.

C)SP DISTANCE

. UNIT;;;;;;meters

;;;;3.00m

;;;;3.00m

;;;;;3.00m

p

p

Unit UNIT

Choices: meters (m), feet (ft)

Initial setting:

U.S.A. and Canada models: feet (ft)

Other models: meters (m)

Select meters to input speaker distances in meters.

Select feet to input speaker distances in feet.

Speaker distances

Choices: 0.3 to 24.00 m

FRONT L adjusts the distance of the front left speaker. Initial setting: 3.0 m

FRONT R adjusts the distance of the front right speaker. Initial setting: 3.0 m

CENTER adjusts the distance of the center speaker. Initial setting: 3.0 m

SURR L adjusts the distance of the surround left speaker. Initial setting: 3.0 m

SURR R adjusts the distance of the surround right speaker. Initial setting: 3.0 m

SB L* adjusts the distance of the surround back left speaker. Initial setting: 2.10 m

SB R* adjusts the distance of the surround back right speaker. Initial setting: 2.10 m

SWFR adjusts the distance of the subwoofer. Initial setting: 3.0 m

PRES L adjusts the distance of the presence left speaker. Initial setting: 3.0 m

PRES R adjusts the distance of the presence right speaker. Initial setting: 3.0 m

*SURR B will be displayed if you selected only one surround

back speaker in SURR B L/R SP (page 57).

58
