HTC SM-TP001-0704 service manual HTC Corporation

Page 34

HTC Corporation

.

Doc. Title

Blackstone Service Manual

Doc. No.

Issued Date

Revised Date

Page

DOC-00045694 REV.

2008/8/21

A01

2008/11/6

34 of 96

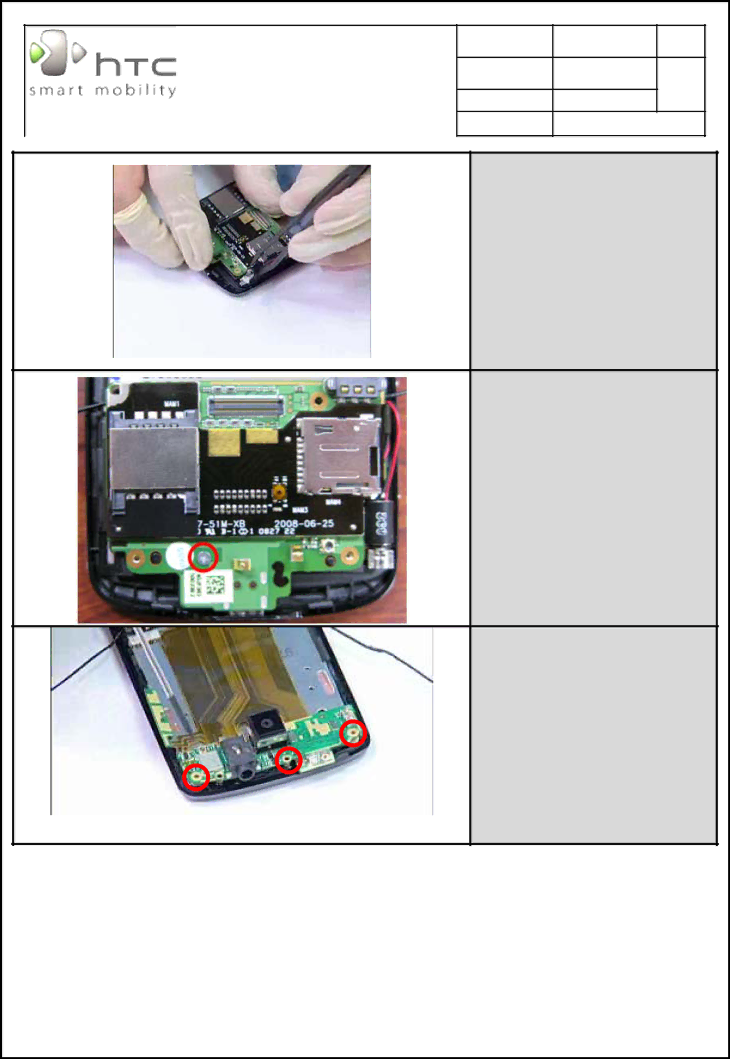

Assemble the vibrator on bezel as shown

Fasten the screw at the location indicated

Tool: Phillip screw-driver 0

P/N: 72H01266-00M

Torque: 0.7±0.1kgf-cm

Put the Rigid flex board on the bezel.

Note: The three holes of Rigid flex Board must align with the hole on the bezel.

HTC CONFIDENTIAL

SM-TP001-0704

Image 34
