Page 21

HTC Corporation

.

Doc. Title

Blackstone Service Manual

Doc. No.

Issued Date

Revised Date

Page

DOC-00045694 REV.

2008/8/21

A01

2008/11/6

21 of 96

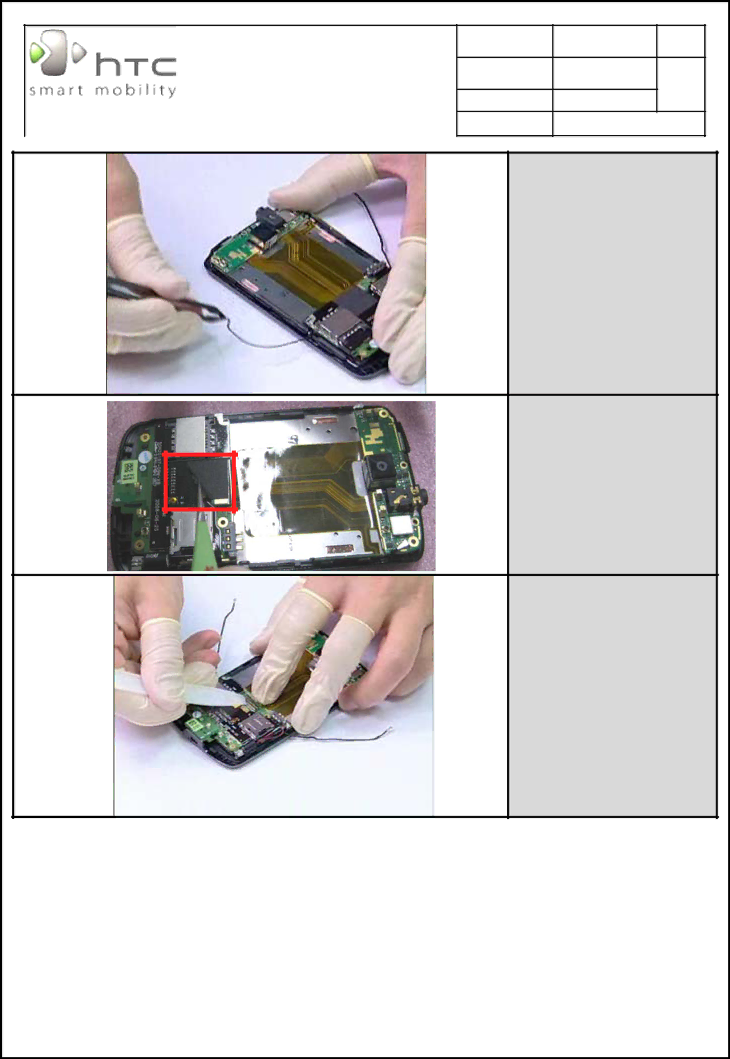

Disconnect the BT/WLAN coaxial cable from Rigid-flex Board as shown.

Remove the black Mylar as show

Remove the FPC connector as shown

HTC CONFIDENTIAL

SM-TP001-0704

Page 20 Page 22
Image 21
Page 20 Page 22
