5.2.3The components of the "SureStep" and the "Stability Lock" system

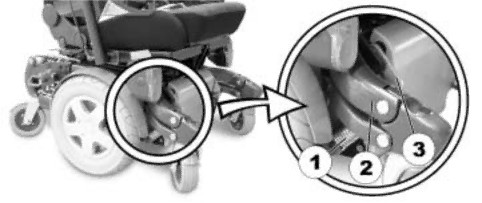

The diagram below shows the components in the "SureStep" system with the side panels removed.

(1) Anti-Dive Spring, (2) Walking Beam und (3) Stability Lock.

5.2.4Maximum obstacle height

Your wheelchair can overcome obstacles and kerbs with the following heights.

•10 cm

27
