Invacare Electric wheelchair manual Electrically disengaging GB motors

Page 32

6.2Electrically disengaging GB motors

CAUTION! Danger of the wheelchair rolling away!

•The motor brakes do not function in disengaged condition (push mode)! The pushbutton for disengaging the motors must never be fixed in its pushed-in position using adhesive tape etc!

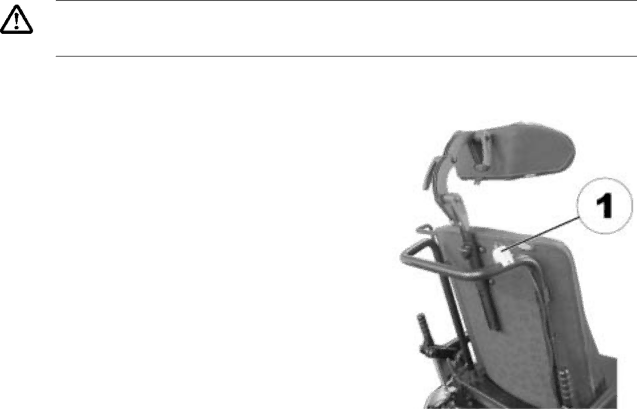

The pushbutton for disengaging the motors is located on the push handle.

Disengaging motors:

•Press key (1). A peep tone will sound for about one second. The motors remain disengaged until a key is pressed (if you cannot hear the peep tone, or the peep tone stops after around one second, there is an error. In this case please contact your dealer.).

Re-engaging motors

•Release key (1) again. The motors are now re- engaged.
