Tripp Lite APS PowerVerter warranty Diagrams/Esquemas

Page 32

Diagrams/Esquemas

1.21.1

1

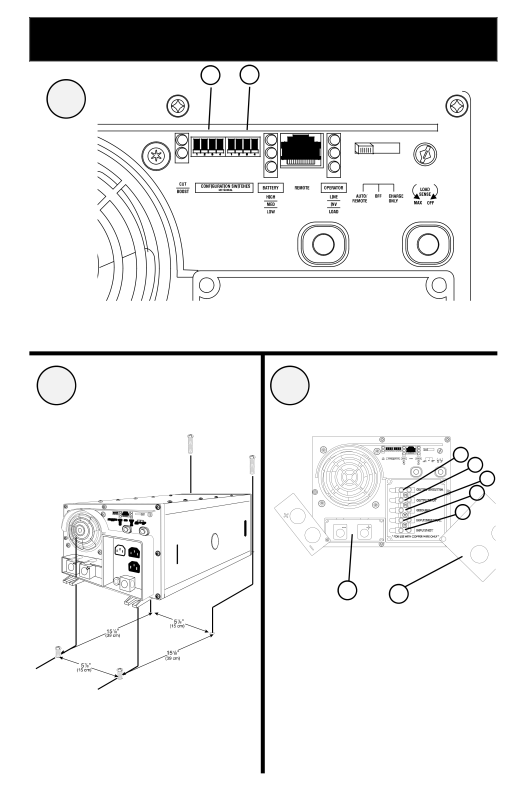

See “Configuration”, pg. 5. 1.1 is DIP Switch Group A. 1.2 is DIP Switch Group B.

Refiérase a la sección “Configuración”, página 20. 1.1 representa el Grupo A de Interruptores DIP. 1.2 representa el Grupo B de Interruptores DIP

2

3

3.3

3.4

3.5

3.6

3.7

3.23.1

See Hardwire Electrical Connections, pg. 9. 3.1 is the cover plate, 3.2 is the five-position terminal strip, 3.3 is the output neutral (white), 3.4 is the output hot (black), 3.5 is the ground (green), 3.6 is the input neutral (blue) and 3.7 is the input hot (brown).

Refiérase a la sección “Conexiones Eléctricas Directas al Circuito”, página 24. 3.1 representa la cubierta;

3.2representa la barra de terminales de 5 posiciones;

3.3representa la terminal neutra de salida (blanca);

3.4representa la terminal positiva de salida (negra);

3.5representa la terminal de conexión a tierra (verde);

3.6representa la terminal neutra de entrada (azul) y

3.7representa la terminal positiva de entrada (café).

32

Page 31 Page 33
Image 32
Page 31 Page 33
