HP DV6-3225DX manual Left-side components

Page 14

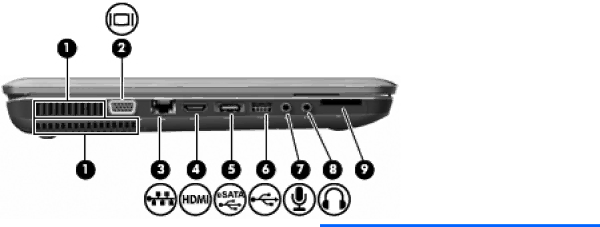

Left-side components

Item

Description

Function







1

Vents (2)

Enable airflow to cool internal components.





NOTE: The computer fan starts up automatically to





cool internal components and prevent overheating. It is





normal for the internal fan to cycle on and off during





routine operation.







2

External Monitor port

Connects an external VGA monitor or projector.







3

RJ-45 (network) jack

Connects a network cable.







4

HDMI port

Connects an optional video or audio device, such as a





high-definition television, or any compatible digital or





audio component.







5

eSATA/USB port (select models only)

Connects an optional high-performance eSATA





component, such as an eSATA external hard drive, or





connects an optional USB device.





NOTE: Depending on the computer model, the





computer might include only a USB port.







6

USB port

Connects an optional USB device.







7

Audio-in (microphone) jack

Connects an optional computer headset microphone,





stereo array microphone, monaural microphone.







8

Audio-out (headphone) jack

Produces sound when connected to optional powered





stereo speakers, headphones, ear buds, a headset, or





television audio.







9

SD card reader

Reads SD cards that are inserted into the reader.







8 Chapter 1 Features
