INSTALLATION

Continued

INSTALLATION ITEMS

Before installing heater, make sure you have the items listed below.

•for propane/LP gas, external regulator (supplied by installer)

•piping (check local codes)

•sealant (resistant to propane/LP gas)

•equipment shutoff valve *

•ground joint union

•test gauge connection*

•sediment trap

•tee joint

•pipe wrench

*A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. The optional CSA design- certified equipment shutoff valve can be purchased from your dealer. See Accessories, page 21.

LOCATING HEATER

WARNING: Maintain the minimum clearances shown in Figure 4. If you can, provide greater clearances from floor, ceiling and joining wall.

You can locate heater on the floor, away from a wall. A wall mounting bracket and floor base stand are included with this heater. Determine which method is best for your application.

CEILING

36"

6"Minimum Minimum

From Sides Of Heater

Left

Right

Side

Side

2" Minimum To

Top Surface

FLOOROf Carpeting,

Tile Or Other

Combustible

Material

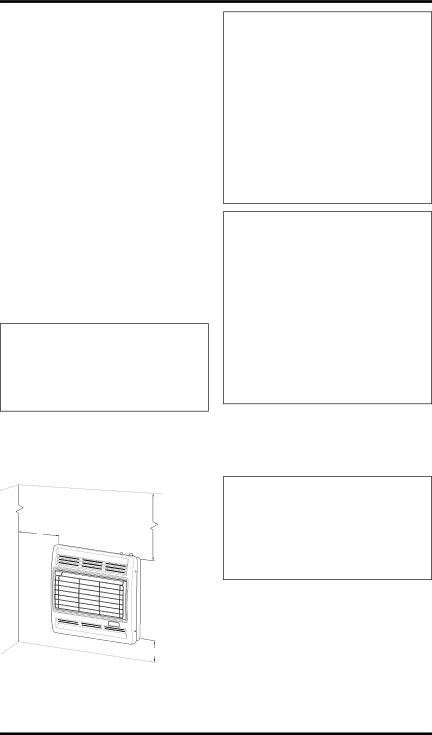

Figure 4 - Mounting Clearances As

Viewed From Front of Heater

WARNING: Never install the heater

•in a bedroom or bathroom

•in a recreational vehicle

•where curtains, furniture, clothing or other flammable objects are less than 36" from the front, top or sides of the heater

•as a fireplace insert

•in high traffic areas

•in windy or drafty areas

CAUTION: This heater cre- ates warm air currents. These currents move heat to wall sur- faces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning flu- ids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, page 5.

CAUTION: If you install the heater in a home garage

•heater pilot and burner must be at least 18" above floor

•locate heater where moving vehicle will not hit it

For convenience and efficiency, install heater

•where there is easy access for operation, inspec- tion and service

•in coldest part of room

An optional fan kit is available from your dealer. See Accessories, page 21. If planning to use fan, locate heater near an electrical outlet.
