Instructions for Building In

For problem-free functioning of the built- in appliance, the kitchen unit or the recess into which the appliance is built must have suitable dimensions.

In accordance with the regulations in force, all parts which ensure the shock protection of live and insulated parts must be fastened in such a way that they cannot be undone without tools.

These also include the fixing of any end walls at the beginning or end of a line of built-in units.

The shock protection must in any case be ensured by the building in of the appliance.

The appliance can be placed with its back or a side wall against higher kitchen units, appliances or walls. However, only other appliances or units of the same height as the appliance can be placed against the other side wall.

Fig. A

Fig. B

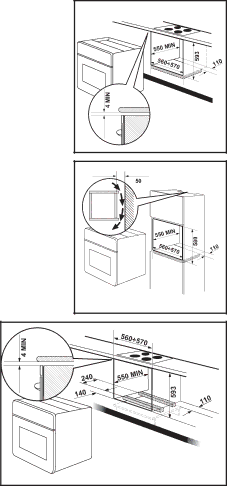

Oven dimensions (Fig. A)

Instructions for Building In

For problem-free functioning of the built- in appliance, the kitchen unit or the recess into which the appliance is built must have suitable dimensions (Fig. B- C).
