Page 16

Setting Up

Connecting the Acoustimass® module to the Model 20 music center

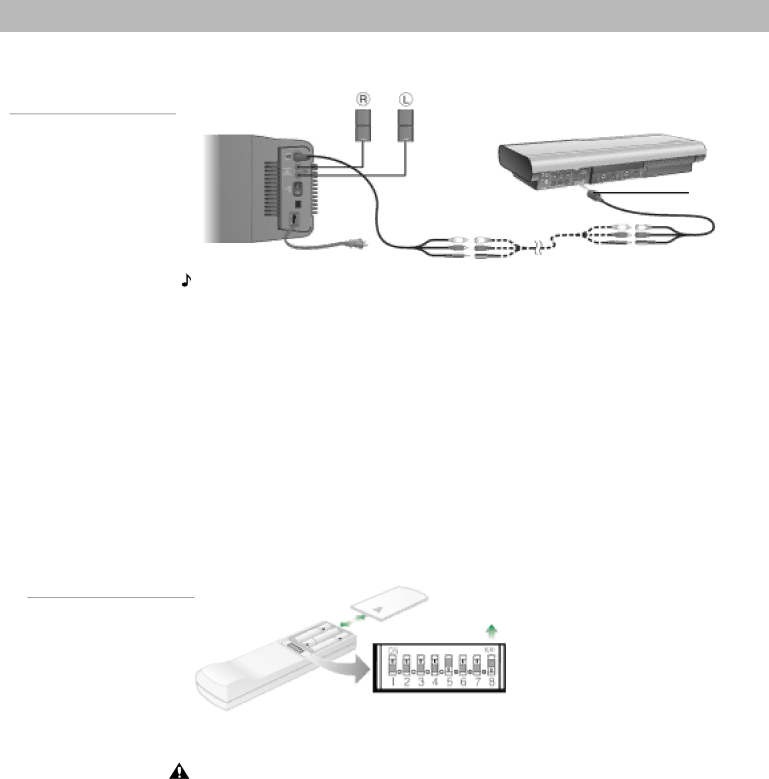

Figure 15

Connecting the speakers to your Model 20 music center

VAR

Note: To extend the length of the cables, use the supplied 50-foot extension cable (shown in the dotted line above). This cable connects between the 30-foot audio input cable and the 3-foot VAR adapter cable (Figure 15).

To connect the Acoustimass 5 or 20 powered speakers to your system (Figure 15), follow these steps:

1.Using the supplied 30-foot audio input cable, insert the round DIN connector into the Acoustimass module, and the RCA plugs into the supplied 3-foot adapter cable labeled VAR on the single-connector end.

2.Attach the end of the 3-foot VAR adapter cable to the ZONE 2 output jack on the rear of the Model 20 music center.

Setting up the remote control

You need to set up a second remote control to operate the ZONE 2 outputs.

1.Remove the remote control battery cover and locate the miniature switches (Figure 16).

2.Make sure that the house code settings (switches 1, 2, 3, and 4) match those on your first remote.

3.Set switch 8 up for ZONE 2.

Figure 16

Setting up the remote control

Connecting power to your system

CAUTION: If you purchased a dual-voltage system, it is important that you set the speakers to the correct voltage. To do this, refer to “Selecting the correct voltage” on page 6.

Follow these steps to connect power to your Acoustimass powered speaker system:

1.Plug the power cord from the Acoustimass module into an AC power (mains) outlet.

2.Insert the power cords of the Lifestyle® system into an AC power (mains) outlet.

3.Turn the Acoustimass module power switch to the On position.

14
