Bakers Pride Oven C, L manual Figure B

Page 8

IV. ILLUSTRATIONS:

(i)See Figure “F” for typical Top View and Front Views of a Cabinet Style Broiler. Both Radiant and Glo-



Stone type are

shown and so are Single and Double Burners, Lighter Tubes and Carry-Over

Lighter

Tube to illustrate and identify the various components utilized. For more details see Figures

B, C, D



and E.

V. REPLACEMENT PARTS

A complete list of Replacement Parts available for this series of Gas Char Broilers is included under separate cover. Always give the Model number, Serial number and type of Gas when ordering Replacement Parts.

VI. SERVICE CENTERS:

A complete list of Bakers Pride Factory Authorized Service Centers is included under separate cover. Always have the Model Number, the Serial Number and type of Gas available before calling for Service.

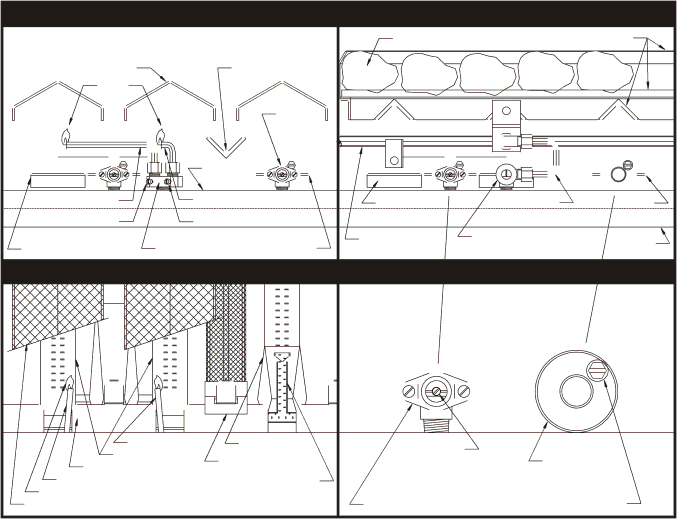

FIGURE “B”



FIGURE “C”









GLO-STONES



GLO-STONE FRAME

RADIANTS



GREASE CATCH (OPT)









PILOT













FLAMES

















MAIN













BURNER













VALVES











MANIFOLD









LH LIGHTER TUBE

RH LIGHTER TUBE

DOUBLE



LIGHTER GAS

SINGLE

LH PILOT FLAME

RH PILOT FLAME

BURNER



SUPPLY TUBING

BURNER









ADJUST. SCREW

ADJUST. SCREW

CARRY-OVER

CARRY-OVER LIGHTER

MANIFOLD







DOUBLE BURNER

PILOT VALVE

SINGLE BURNER

LIGHTER TUBE



TUBE VALVE





FIGURE “D”



FIGURE “E”





RH LIGHTER TUBE

SINGLE BURNER

LOW FLAME







DOUBLE BURNER











ADJUST. SCREW



MAIN BURNER





GREASE CATCH (OPT)





RADIANT SUPPORT



TURN C.W. TO DECREASE

AIR MIXER CAP



LH LIGHTER TUBE

CARRY-OVER LIGHTER TUBE



TURN C.C.W. TO INCREASE





PILOT FLAME

TIP FOR SINGLE BURNER









CAP LOCKING SCREW

RADIANTS





MAIN BURNER VALVE









8







Image 8
