SECTION 2 - INSTALLATION

D. Installing Griddle on Accessory Stand.

NOTE: If you are installing the griddle on a counter do not do Step D. Go directly to Step E.

Accessory stands are available for all Accu-Miser Griddles. See the following Accessory Stand List.

GRIDDLE ACCESSORY STAND LIST

Griddle

Accessory

Description

Model Number

Number



AM24

7324ES

Stand. Mount on 6" casters not included.

AM36

7336ES

Stand. Mount on 6" casters not included.

AM48

7348ES

Stand. Mount on 6" casters not included.

All Models

ACCS06J

Casters. Set of four, NSF approved, adds 6-1/4"

to height of unit. 2 locking casters and 2 non-locking casters.

Stand Assembly:

1.Unpack the stand which is made up of two sets of legs.

2.Assemble the casters into the legs. The casters without brakes are installed on the rear legs and the casters with brakes are installed on the front legs.

Install the casters as follows (refer to Figure 2-1):

a. Before inserting the caster into the leg, snug the knurled knob until the caster fits snugly into leg tube. b. Insert caster into leg.

c. Tighten main bolt located under caster 1 to 2 turns.

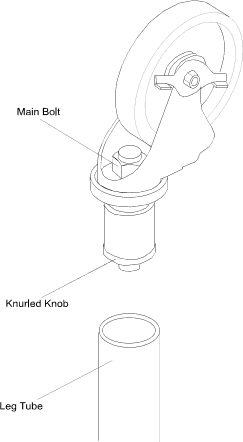

Figure 2-1
