Control buttons



Control buttons

This hood is equipped with an electronic motor and lamp control.

The control is able to set 4 different fan speeds, turn ON/OFF light and has a timer function.

In the following drawing are described the main key functions.

1

2

3

4

5



















1.Light Button

•Press lamp button to turn ON the light (Lamp state previously OFF).

•Press lamp button to turn OFF the light (Lamp state previously ON).

2.Timer Button

•The default timer setting is 10 minutes, and it can be adjusted between 20 minutes and 1minute.

•After pressing the timer button, the control enters to a timer setup mode, and user can

adjust the timer countdown time with the

“” and “” buttons within 5 seconds. The timer can be initiated immediately

pressing the timer button, after setting the timer duration or pressing the timer button twice (default 10 minutes setting).

•If no action occurs within 5 seconds, the countdown will start.

•During the timer setup the “” and “” buttons are dedicated to the timer and no

motor action will occur.

•Once the timer is initiated, it can be cancelled by pressing the timer button again.

3.Display

•Shows the hood settings.

4.“” Button. Speed Decrease / OFF

•This button is used to decrease the fan speed, or turn OFF the fan.

•The fan will turn OFF if the “” button is pressed and the hood was in the first speed.

•If the fan is at second speed and the “” button is pressed, the fan will be set to first

speed.

•If the fan is at third speed and the “” key is pressed, the fan will be set to second speed.

•If the fan is at fourth speed and the “” button is pressed, the fan will be set to third

speed.

•If the fan is OFF and the “” button is pressed, the control backlight will light up.

5.“” Button. Speed Increase / ON

•This button is used to increase the fan speed, or turn ON the fan.

•The fan will turn ON if the “” button is pressed and the hood was OFF.

•If the fan is at first speed and the “” button is pressed, the fan will be set to second

speed.

•If the fan is at second speed and the “” button is pressed, the fan will be set to third

speed.

•If the fan is at third speed and the “” button is pressed, the fan will be set to fourth

speed.

•If the fan is at fourth speed and the “” button is pressed, a beep will sound.

IMPORTANT: If the hood doesn’t switch ON, before calling for service, check if the internal General ON/ OFF Pushb-utton Switch is switched ON.

General ON/OFF

Push button Switch

Frontside of the hood

Back side of the hood

Page 15 Page 17
Image 16
Page 15 Page 17

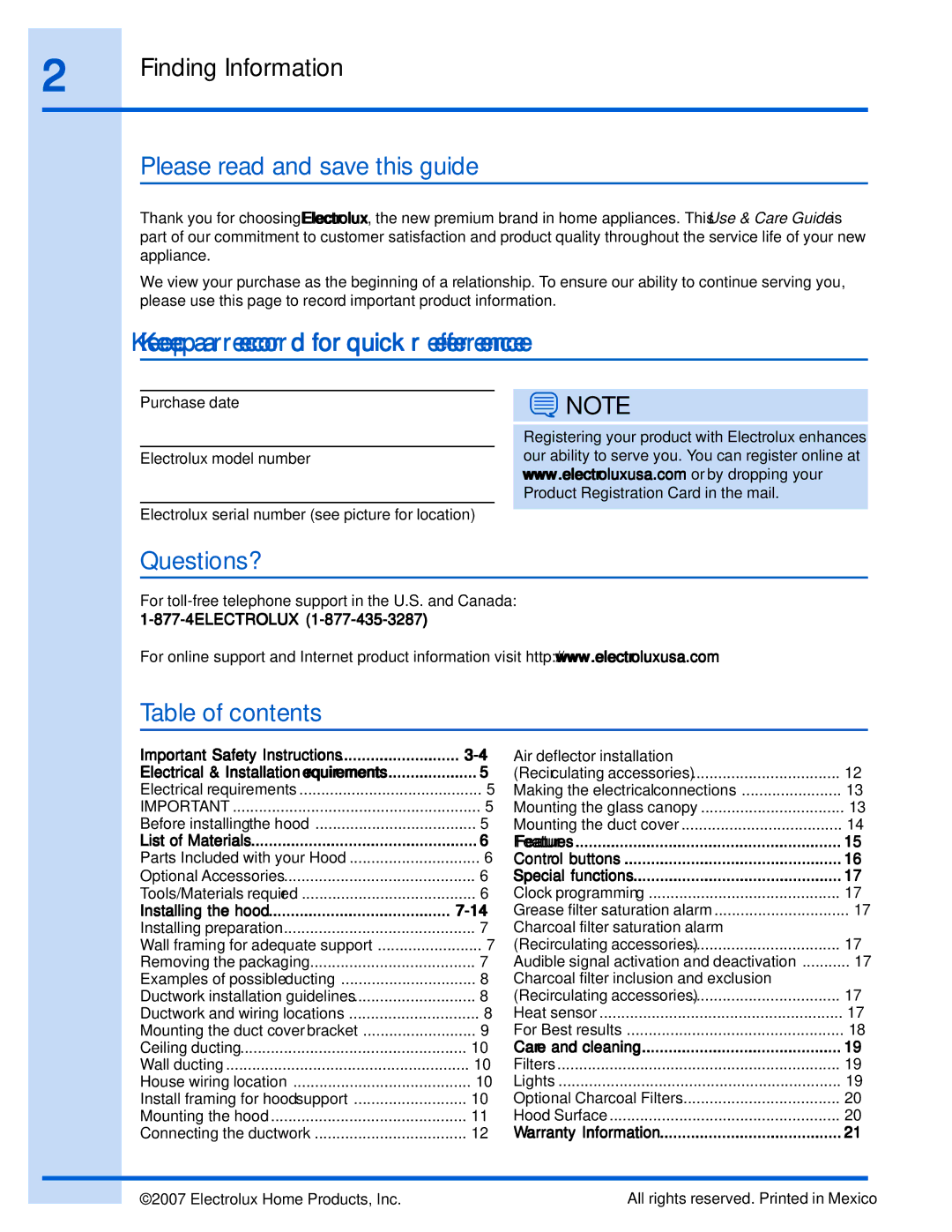

Contents Installation, Use & Care Guide Table of contents Please read and save this guideKeep a record for quick reference Questions?Important Safety Instructions Read and Save These Instructions Electrical & Installation requirements Electrical requirementsOptional accessories List of MaterialsParts Included with your Hood Tools/Materials requiredInstalling the hood Installing preparationWall framing for adequate support Removing the packagingDuctwork and wiring locations Ductwork installation guidelinesExamples of possible ducting House wiring location Mounting the duct cover bracketCeiling ducting Wall ductingMounting the hood Install framing for hood supportIMPORTANT- Framing must be capable of supporting 100 lbs Installing the hood Connecting the ductwork Air deflector installation Recirculating accessoriesMaking the electrical connections Mounting the glass canopy120 VAC, 15 or 20 Amp circuit required Failure to do so can result in death or electrical shockMounting the duct cover Features Control buttons Special functions For Best results Lights Care and cleaningFilters Charcoal filter placement Recirculating accessories CleaningOptional Charcoal Filters Hood SurfaceRESPONSIBILITIESresponsible for the items listed below Exclusions This warranty does not cover the followingElectrolux Home Products North America
