HOW TO FINISH UNPACKING

￿Place appliance next to the cabinet in which it will be installed.

￿Remove the appliance packing except for bottom tray which should be left in position until the appliance is ready to be fitted into its cabinet.

￿Ensure the owner is given these operating instructions.

TOOLS REQUIRED

The following tools will be needed and it helps to assemble them before starting to install your oven:

A terminal screwdriver (3mm wide blade) A pozidrive screwdriver

Pliers Wirestrippers Knife Sidecutters Adhesive tape Tape Measure

MAKE THE ELECTRICAL CONNECTIONS

Important: Switch off at mains, miniature circuit breaker and if appropriate, remove fuse before commencing any electrical work.

PREPARING CABLE

We recommend you use a new length of cable to ensure your safety.

￿Ensure you have the correct length of cable appropriate to the wiring method you are using. When fitting new cable allow sufficient cable for removal of the unit at a later date, should it be necessary.

￿Score, but do not cut through, around the sheathing with a knife 100mm (4in) from each end of the cable and break through to the encased wires by bending the cable backwards and forwards to fatigue the sheathing.

￿Carefully score down from each end of the cable sheathing along the length of the bare earth wire (if a cut was made along the length of the live or neutral wires, it might cut into their sheathing) to the cuts already made.

￿Carefully prise open the sheathing at each end of the cable to expose the encased wiring.

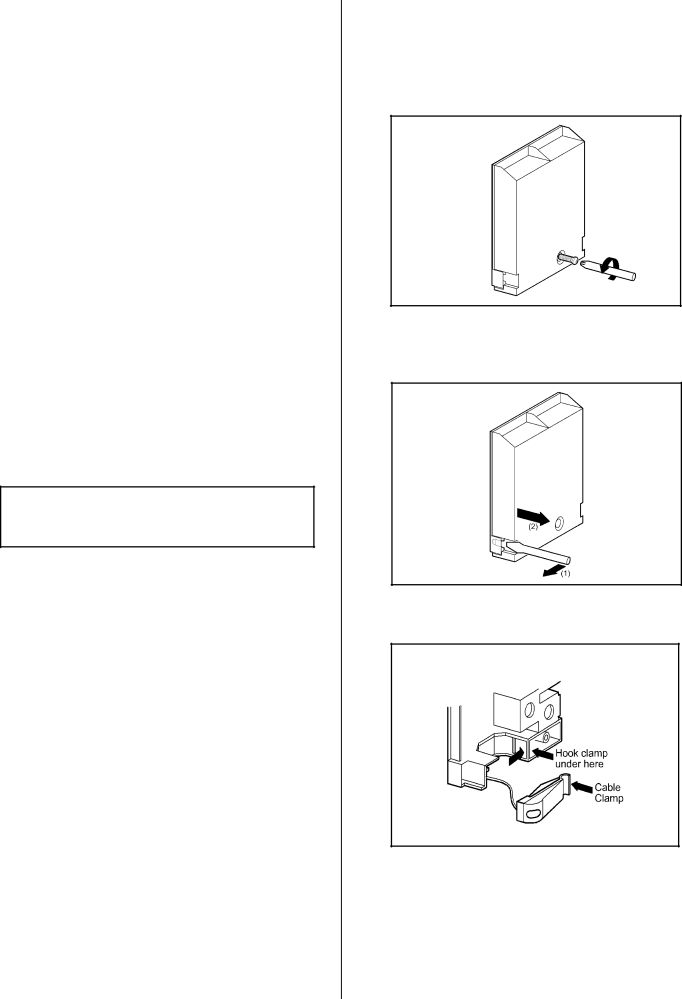

TO REMOVE COVER OF MAINS TERMINAL

From the rear of the appliance, remove mains input terminal cover to gain access to terminal block.

￿First remove retaining screw with pozidrive screwdriver. See Fig. 3.

Fig. 3

￿Prise cover loose using screwdriver in position

(1)then lever off with screwdriver in position (2) at either side. See Fig. 4.

Fig. 4

￿Lift cover and remove screw from cable clamp. See Fig. 5.

Fig.5

9
