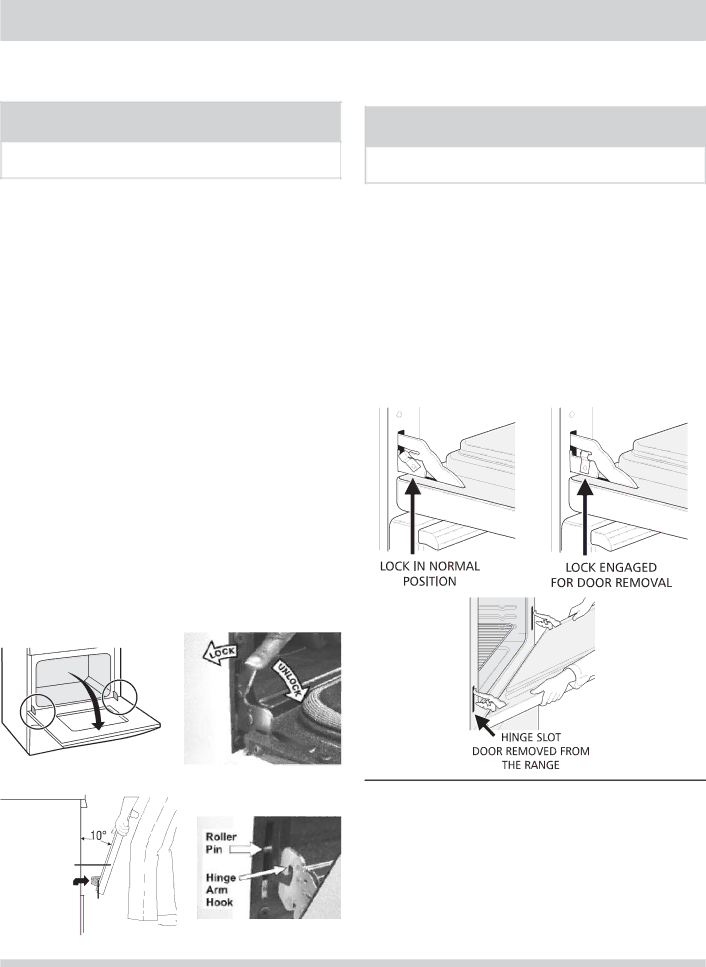

Page 26

CARE & CLEANING

Removing and replacing the main oven door (some models)

CAUTION

The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down.

To Remove Oven Door:

1.Open oven door completely (horizontal with floor - See Figure 1).

2.Pull the door hinge locks on both left and right door hinges down from the oven frame completely towards the oven door (See Figure 2). A tool such as a small flat-blade screwdriver may be required.

3.Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Figure 3).

4.Close the door to the broil stop position (the oven door will stop into this position just before fully closing).

5.With the oven door in the broil stop position, lift the oven door hinge arms over the roller pins located on each side of the oven frame (See Figure 4).

To Replace Oven Door:

1.Firmly grasp both sides of oven door along the door sides (Do not use the oven door handle - See Figure 3).

2.Holding the oven door at the same angle as the removal position, seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (See Figure 4). The hook of the hinge arms must be fully seated onto the roller pins.

3.Fully open the oven door (horizontal with floor - See Figure 1).

4.Push the door hinge locks up towards and into the oven frame on both left and right oven door hinges (See Figure 2) to the locked position.

5.Close the oven door.

Door Hinge locations



with oven door fully open

Figure 2

Figure 1



Around

Oven door

Hinge

Figure 4 26 Figure 3

To remove and replace the main oven door (some models)

CAUTION

The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down.

1.Open the door to the fully opened position.

2.Pull up the lock located on both hinge supports and engage it in the hinge levers. You may have to apply a little downward pressure on the door to pull the locks fully over the hooks.

3.Grab the door by the sides, pull the bottom of the door up and toward you to disengage the hinge sup- ports. Keep pulling the bottom of the door toward you while rotating the top of the door toward the range to completely disengage the hinge levers.

4.To replace the door, reverse the door removal steps. Make sure the hinge supports are fully engaged before unlocking the hinge levers.

Special door care instructions - Most oven doors contain glass that can break.

Read the following recommendations:

1.Do not close the oven door until all the oven racks are fully in place.

2.Do not hit the glass with pots, pans, or any other ob- ject.

3.Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.
