Dixon 13089-0601 manual Changing the Engine OIL

Page 38

CARE AND MAINTENANCE

	CAUTION	Hot oil may cause burns. Allow
	CAUTION	engine to cool before draining oil.
		engine to cool before draining oil.

CHANGING THE ENGINE OIL:

1.The “Dapco” oil drain valve is located on the left side of the engine crankcase.

2.Place a suitable container under the drain valve. The fitting of a short piece of hose will help direct the oil.

3.To drain, turn hex head valve stem counter-- clockwise with 10mm wrench or socket. Open to full open (approximately 7 turns).

4.After engine is drained, tighten hex stem.

NOTE: Refer to engine manufacturer’s recommendations for frequency of oil changes.

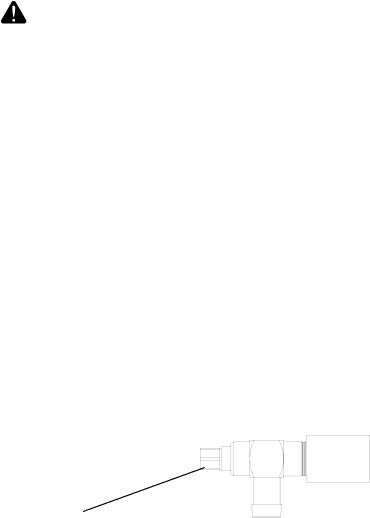

Hex Head Valve Stem

38
