Exmark Metro 21 Series manual Worn or damaged blade can break

Page 31

Blade

Anti-Scalp Cup

Bolt and Lock Washer

Blade



G0218









Accelerator

G0233





Blade Nuts



Accelerator























































Figure 24

Figure 25







(Blade Brake Clutch Units Only)

(Units without a Blade Brake Clutch Only)

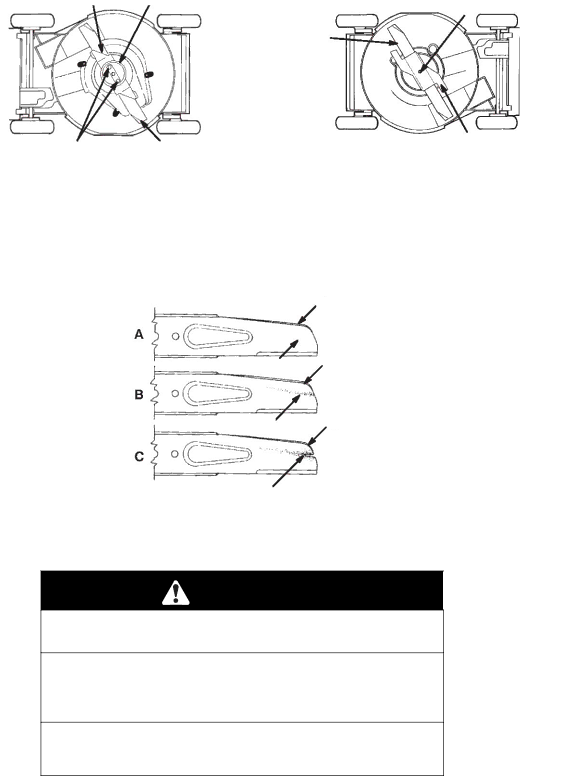

5.Inspect the Blade for sharpness and wear, especially where the flat and the curved parts meet (Fig. 26A). Because sand and abrasive material can wear away the metal that connects the flat and curved parts of the blade, check the blade before using the lawn mower. If you notice a slot or wear (Fig. 26B and 26C), replace the blade.

Sail

Flat Sail

Wear Sail

Slot G0219

Figure 26

NOTE: For the best performance, install a new blade before the cutting season begins. During the year, file down any small nicks to maintain the cutting edge.

DANGER

POTENTIAL HAZARD

♦A worn or damaged blade can break.

WHAT CAN HAPPEN

♦A piece of the blade could be thrown into the operator’s or bystander’s area, resulting in serious personal injury or death.

HOW TO AVOID THE HAZARD

♦Inspect the blade periodically for wear or damage.

♦Replace a worn or damaged blade.

If it is necessary to remove the blade for replacement or sharpening, complete the following steps:

6.Remove the blade. Make sure to grasp the end of the blade using a rag or a thickly padded glove.

For Blade Brake Clutch Units: Remove the blade nuts, anti-scalp cup, accelerator, and the blade (Fig. 24)

For Units without a Blade Brake Clutch: Remove the blade bolt, lockwasher, accelerator, and blade.

-26 -

Page 30 Page 32
Image 31
Page 30 Page 32
