Ruby Combo Hard Drive
RCHDSAES & RCHDSAEU
User’s Guide
Version 1.0
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try and correct the interference by one or more of the following suggestions.
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to a different power outlet other than the one where receiver is connected
Consult a certified television or radio technician

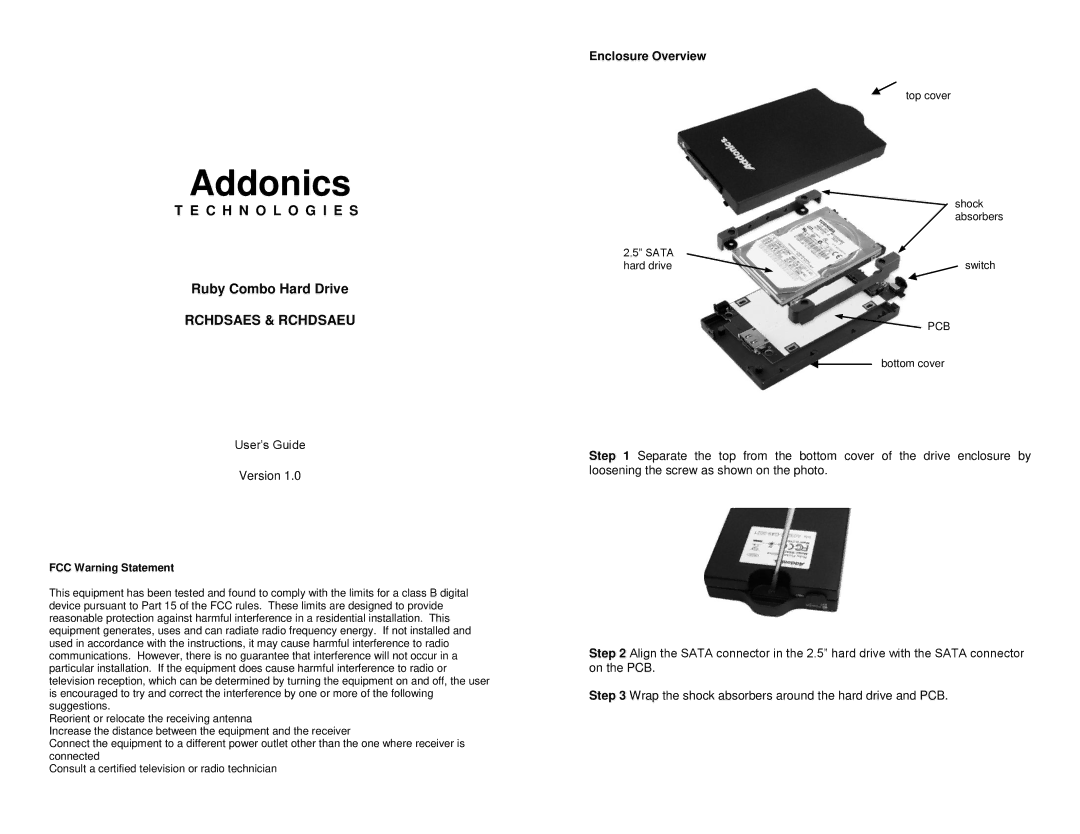

Enclosure Overview
top cover
| shock |
| absorbers |
2.5” SATA |
|
hard drive | switch |
| PCB |
| bottom cover |
Step 1 Separate the top from the bottom cover of the drive enclosure by loosening the screw as shown on the photo.
Step 2 Align the SATA connector in the 2.5” hard drive with the SATA connector on the PCB.
Step 3 Wrap the shock absorbers around the hard drive and PCB.
