Installing an AirPort Extreme Card

Installing an AirPort Extreme Card

AirPort offers an affordable and easy way to provide wireless Internet access anywhere in the home, at work, or in the classroom. You can install an AirPort Extreme Card in your Power Mac G5.

Important: You must install an AirPort Extreme Card. Older AirPort Cards will not work in the Power Mac G5.

1Open your computer following the directions on page 42.

2Position the AirPort Extreme Card with the Apple logo facing up, insert the card into the card slot, and press it firmly into the connector.

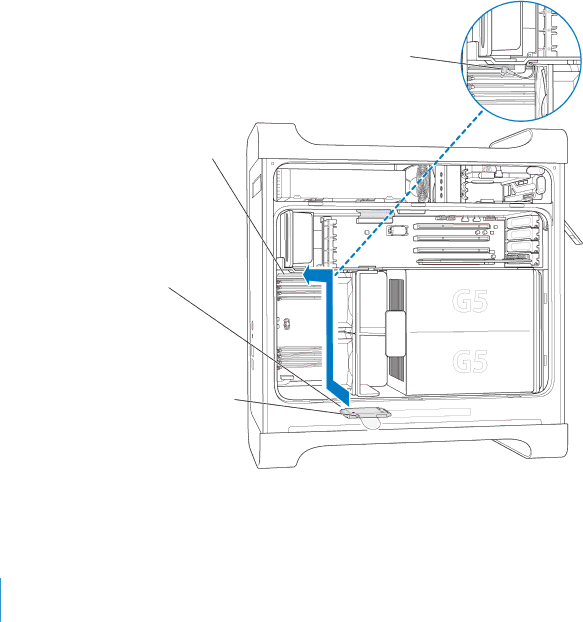

The AirPort Extreme Card slot is located underneath the sheet metal divider.

With the Apple logo facing up, insert the AirPort Extreme Card into the card slot. Press the card firmly into the connector.

The AirPort Extreme Card antenna wire is stowed underneath the sheet metal divider with a clip. Remove the wire from the clip before attaching it to the card.

66

Plug the antenna wire into the hole in the end of the AirPort Extreme Card.

3Carefully connect the coaxial antenna wire to the port on the end of the AirPort Extreme Card.

Chapter 3 Working Inside Your Computer
