Belkin satellite U400 manual Toshiba recommends Windows Vista Home Premium, Art. No. PX1417E-1NCA

Toshiba recommends Windows Vista® Home Premium

Toshiba EasyMedia	Satellite U400-10I		Satellite U400-11L	Satellite U400-10J	Satellite U400-112	Satellite U400-10L	Satellite U400-10M	Satellite U400-10N	Satellite U400-10O
Easy Entertainment	HDMI-CEC, S/PDIF, internal HD 720p support				HDMI-CEC, S/PDIF, internal HD 720p support, Dolby® Sound Room™
Easy Connectivity	Integrated Bridge Media Adapter, Diversity Antenna, built-in			Toshiba ConfigFree™, integrated Bridge Media Adapter, Diversity Antenna, built-in web camera & microphone, Toshiba Face Recognition, Bluetooth® 2.1 with EDR
	Web Camera & microphone, Bluetooth® 2.1 with EDR
Easy Usability	Easy Keys, USB Sleep'n Charge, Toshiba Flash Cards			Easy Keys, USB Sleep’n Charge, Smart Display Support, Google Pack (Google Toolbar for Internet Explorer, Google Desktop, Picasa, Google Earth),
					McAfee® Internet Security Suite 2008 – Toshiba Edition (includes free Internet updates for 30 days), Toshiba Flash Cards

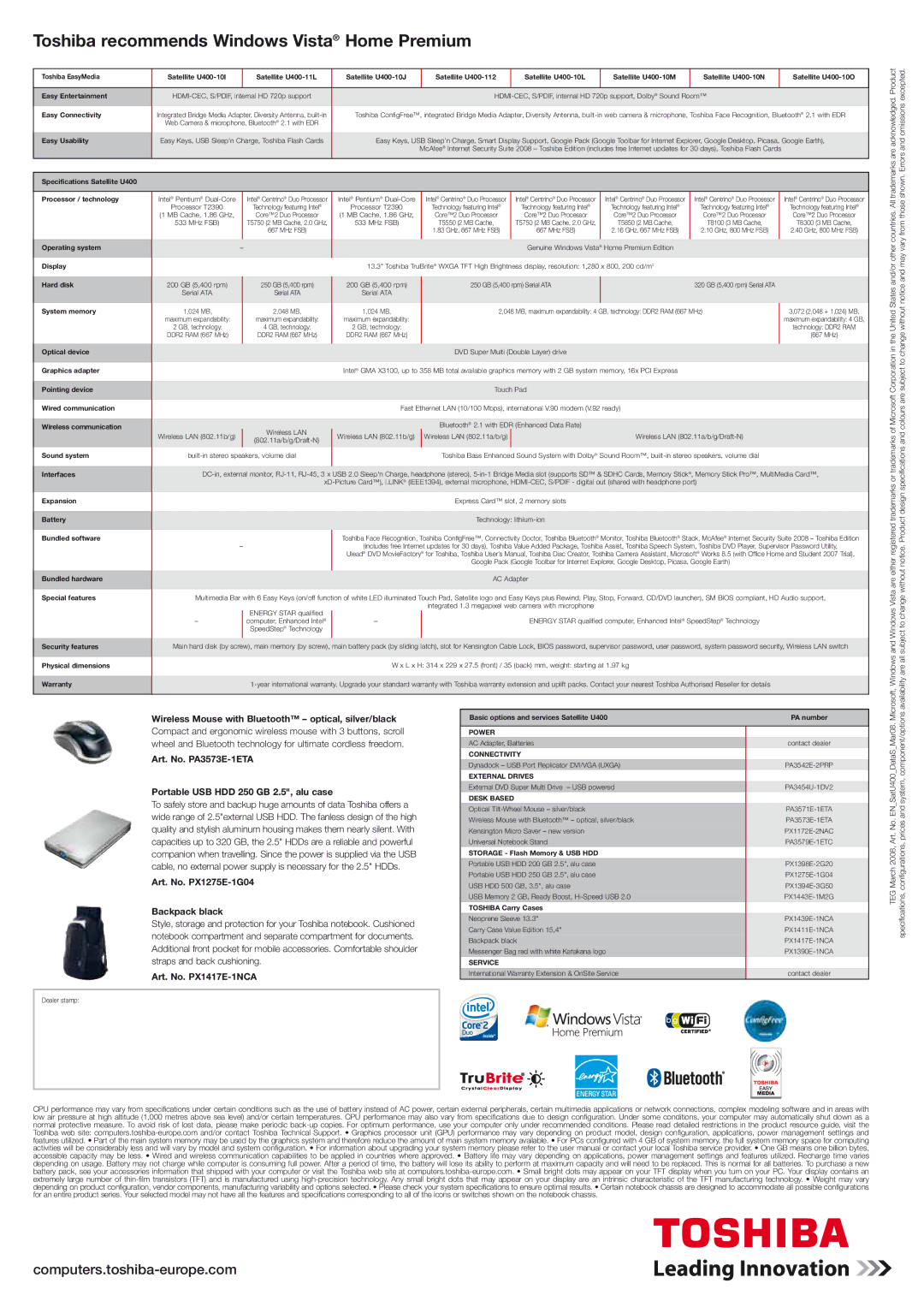

Specifications Satellite U400
Processor / technology	Intel® Pentium® Dual-Core		Intel® Centrino® Duo Processor	Intel® Pentium® Dual-Core	Intel® Centrino® Duo Processor	Intel® Centrino® Duo Processor	Intel® Centrino® Duo Processor	Intel® Centrino® Duo Processor	Intel® Centrino® Duo Processor
	Processor T2390		Technology featuring Intel®	Processor T2390	Technology featuring Intel®	Technology featuring Intel®	Technology featuring Intel®	Technology featuring Intel®	Technology featuring Intel®
	(1 MB Cache, 1.86 GHz,		Core™2 Duo Processor	(1 MB Cache, 1.86 GHz,	Core™2 Duo Processor	Core™2 Duo Processor	Core™2 Duo Processor	Core™2 Duo Processor	Core™2 Duo Processor
	533 MHz FSB)		T5750 (2 MB Cache, 2.0 GHz,	533 MHz FSB)	T5550 (2 MB Cache,	T5750 (2 MB Cache, 2.0 GHz,	T5850 (2 MB Cache,	T8100 (3 MB Cache,	T8300 (3 MB Cache,
			667 MHz FSB)		1.83 GHz, 667 MHz FSB)	667 MHz FSB)	2.16 GHz, 667 MHz FSB)	2.10 GHz, 800 MHz FSB)	2.40 GHz, 800 MHz FSB)
Operating system		–				Genuine Windows Vista® Home Premium Edition
Display				13.3" Toshiba TruBrite® WXGA TFT High Brightness display, resolution: 1,280 x 800, 200 cd/m2
Hard disk	200 GB (5,400 rpm)		250 GB (5,400 rpm)	200 GB (5,400 rpm)	250 GB (5,400 rpm) Serial ATA			320 GB (5,400 rpm) Serial ATA
	Serial ATA		Serial ATA	Serial ATA
System memory	1,024 MB,		2,048 MB,	1,024 MB,	2,048 MB, maximum expandability: 4 GB, technology: DDR2 RAM (667 MHz)				3,072 (2,048 + 1,024) MB,
	maximum expandability:		maximum expandability:	maximum expandability:					maximum expandability: 4 GB,
	2 GB, technology:		4 GB, technology:	2 GB, technology:					technology: DDR2 RAM
	DDR2 RAM (667 MHz)		DDR2 RAM (667 MHz)	DDR2 RAM (667 MHz)					(667 MHz)
Optical device					DVD Super Multi (Double Layer) drive
Graphics adapter				Intel® GMA X3100, up to 358 MB total available graphics memory with 2 GB system memory, 16x PCI Express
Pointing device					Touch Pad
Wired communication				Fast Ethernet LAN (10/100 Mbps), international V.90 modem (V.92 ready)
Wireless communication			Wireless LAN		Bluetooth® 2.1 with EDR (Enhanced Data Rate)
	Wireless LAN (802.11b/g)			Wireless LAN (802.11b/g)	Wireless LAN (802.11a/b/g)		Wireless LAN (802.11a/b/g/Draft-N)
			(802.11a/b/g/Draft-N)
Sound system	built-in stereo speakers, volume dial				Toshiba Bass Enhanced Sound System with Dolby® Sound Room™, built-in stereo speakers, volume dial
Interfaces	DC-in, external monitor, RJ-11, RJ-45, 3 x USB 2.0 Sleep'n Charge, headphone (stereo), 5-in-1 Bridge Media slot (supports SD™ & SDHC Cards, Memory Stick®, Memory Stick Pro™, MultiMedia Card™,
			xD-Picture Card™), i.LINK® (IEEE1394), external microphone, HDMI-CEC, S/PDIF - digital out (shared with headphone port)
Expansion					Express Card™ slot, 2 memory slots
Battery					Technology: lithium-ion
Bundled software				Toshiba Face Recognition, Toshiba ConfigFree™, Connectivity Doctor, Toshiba Bluetooth® Monitor, Toshiba Bluetooth® Stack, McAfee® Internet Security Suite 2008 – Toshiba Edition
		–		(includes free Internet updates for 30 days), Toshiba Value Added Package, Toshiba Assist, Toshiba Speech System, Toshiba DVD Player, Supervisor Password Utility,
				Ulead® DVD MovieFactory® for Toshiba, Toshiba User’s Manual, Toshiba Disc Creator, Toshiba Camera Assistant, Microsoft® Works 8.5 (with Office Home and Student 2007 Trial),
					Google Pack (Google Toolbar for Internet Explorer, Google Desktop, Picasa, Google Earth)
Bundled hardware					AC Adapter
Special features	Multimedia Bar with 6 Easy Keys (on/off function of white LED illuminated Touch Pad, Satellite logo and Easy Keys plus Rewind, Play, Stop, Forward, CD/DVD launcher), SM BIOS compliant, HD Audio support,
			ENERGY STAR qualified		integrated 1.3 megapixel web camera with microphone
	–		computer, Enhanced Intel®	–		ENERGY STAR qualified computer, Enhanced Intel® SpeedStep® Technology
			SpeedStep® Technology
Security features	Main hard disk (by screw), main memory (by screw), main battery pack (by sliding latch), slot for Kensington Cable Lock, BIOS password, supervisor password, user password, system password security, Wireless LAN switch
Physical dimensions				W x L x H: 314 x 229 x 27.5 (front) / 35 (back) mm, weight: starting at 1.97 kg
Warranty			1-year international warranty. Upgrade your standard warranty with Toshiba warranty extension and uplift packs. Contact your nearest Toshiba Authorised Reseller for details

trademarks are acknowledged. Product	shown. Errors and omissions excepted.
United States and/or other countries. All	without notice and may vary from those
Corporation in the	subject to change
and Windows Vista are either registered trademarks or trademarks of Microsoft	subject to change without notice. Product design specifications and colours are
Microsoft,Windows	availability are all

Wireless Mouse with Bluetooth™ – optical, silver/black

Compact and ergonomic wireless mouse with 3 buttons, scroll wheel and Bluetooth technology for ultimate cordless freedom.

Art. No. PA3573E-1ETA

Portable USB HDD 250 GB 2.5", alu case

To safely store and backup huge amounts of data Toshiba offers a wide range of 2.5"external USB HDD. The fanless design of the high quality and stylish aluminum housing makes them nearly silent. With capacities up to 320 GB, the 2.5" HDDs are a reliable and powerful companion when travelling. Since the power is supplied via the USB cable, no external power supply is necessary for the 2.5" HDDs.

Art. No. PX1275E-1G04

Backpack black

Style, storage and protection for your Toshiba notebook. Cushioned notebook compartment and separate compartment for documents. Additional front pocket for mobile accessories. Comfortable shoulder straps and back cushioning.

Art. No. PX1417E-1NCA

Basic options and services Satellite U400	PA number
POWER
AC Adapter, Batteries	contact dealer
CONNECTIVITY
Dynadock – USB Port Replicator DVI/VGA (UXGA)	PA3542E-2PRP
EXTERNAL DRIVES
External DVD Super Multi Drive – USB powered	PA3454U-1DV2
DESK BASED
Optical Tilt-Wheel Mouse – silver/black	PA3571E-1ETA
Wireless Mouse with Bluetooth™ – optical, silver/black	PA3573E-1ETA
Kensington Micro Saver – new version	PX1172E-2NAC
Universal Notebook Stand	PA3579E-1ETC
STORAGE - Flash Memory & USB HDD
Portable USB HDD 200 GB 2.5", alu case	PX1398E-2G20
Portable USB HDD 250 GB 2.5", alu case	PX1275E-1G04
USB HDD 500 GB, 3.5", alu case	PX1394E-3G50
USB Memory 2 GB, Ready Boost, Hi-Speed USB 2.0	PX1443E-1M2G
TOSHIBA Carry Cases
Neoprene Sleeve 13.3"	PX1439E-1NCA
Carry Case Value Edition 15,4"	PX1411E-1NCA
Backpack black	PX1417E-1NCA
Messenger Bag red with white Katakana logo	PX1390E-1NCA
SERVICE
International Warranty Extension & OnSite Service	contact dealer

EN SatU400 DataS Mar08.	and system, component/options
March 2008, Art. No.	configurations, prices
TEG	specifications,

Dealer stamp:

CPU performance may vary from specifications under certain conditions such as the use of battery instead of AC power, certain external peripherals, certain multimedia applications or network connections, complex modeling software and in areas with low air pressure at high altitude (1,000 metres above sea level) and/or certain temperatures. CPU performance may also vary from specifications due to design configuration. Under some conditions, your computer may automatically shut down as a normal protective measure. To avoid risk of lost data, please make periodic back-up copies. For optimum performance, use your computer only under recommended conditions. Please read detailed restrictions in the product resource guide, visit the Toshiba web site: computers.toshiba-europe.com and/or contact Toshiba Technical Support. • Graphics processor unit (GPU) performance may vary depending on product model, design configuration, applications, power management settings and features utilized. • Part of the main system memory may be used by the graphics system and therefore reduce the amount of main system memory available. • For PCs configured with 4 GB of system memory, the full system memory space for computing activities will be considerably less and will vary by model and system configuration. • For information about upgrading your system memory please refer to the user manual or contact your local Toshiba service provider. • One GB means one billion bytes, accessible capacity may be less. • Wired and wireless communication capabilities to be applied in countries where approved. • Battery life may vary depending on applications, power management settings and features utilized. Recharge time varies depending on usage. Battery may not charge while computer is consuming full power. After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries. To purchase a new battery pack, see your accessories information that shipped with your computer or visit the Toshiba web site at computers.toshiba-europe.com. • Small bright dots may appear on your TFT display when you turn on your PC. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology. • Weight may vary depending on product configuration, vendor components, manufacturing variability and options selected. • Please check your system specifications to ensure optimal results. • Certain notebook chassis are designed to accommodate all possible configurations for an entire product series. Your selected model may not have all the features and specifications corresponding to all of the icons or switches shown on the notebook chassis.

computers.toshiba-europe.com
