Craftsman LAP30ULV-CT manual User’S Guide, Intelligent, Laptop Computer Cart, Front View

ELECTRICAL: Avoid sparks. Avoid arcing Always turn OFF the power to the cart before plugging IN or OUT!

ELECTRICAL: For Safety Purposes, make sure all electrical components do not exceed the the maximum load rating of 12 amps.

ELECTRICAL: Risk of electrical shock. Do not plug the power cord into another extension cord or relocatable power tap.

ELECTRICAL: The Power Bars inside the laptop cart are only for charging laptop computers. Any other use may cause an overload for the Power Management System, causing the “Brain” to shutdown, resulting in the LED lights flashing on and off.

To reset the Brain, turn off the main power switch, unplug the non-laptop computer, then turn the main switch back on.

CAUTION: Ventilation is critical for laptop computer carts to operate correctly, providing the appropriate airflow so that heat-buildup is minimized during the battery-charging process, with the computers turned OFF. Be sure each laptop computer is turned OFF before plugging into the cart.

CAUTION: Do Not block the ventilation holes on the cart. Proper air flow is required for safe operation of equipment.

CAUTION: Cart with computers should be keep in a room with a maximum temperature not to exceed 77° F or 25° C.

CAUTION: Maximum weight of accessories on top of cabinet is 25 pounds. Do not block ventilation holes when charging batteries.

CAUTION: Avoid loading equipment in the cart in a uneven fashion. Uneven weight distribution could cause a hazardous condition.

How Does a Laptop Computer Manage Heat?

To manage the heat stress of the battery, computer engineers include sophisticated battery management functions in the design of the computers. They can be found in two places: the external charger & internal to the notebook computer itself. The transformer converts the alternating current from the wall socket to a lower voltage direct current. Besides charging the notebook’s battery these “bricks” as they’re sometimes called, can supply enough electricity to operate the laptop and charge the battery simultaneously.

Deep inside the computer a dedicated microcircuit continuously monitors and manages the charging current, voltage and temperature of the battery. If the temperature of the battery exceeds limits, the microcircuit will stop charging the battery until the temperature drops to acceptable levels.

Keeping the battery cooler while charging allows the battery to charge faster.

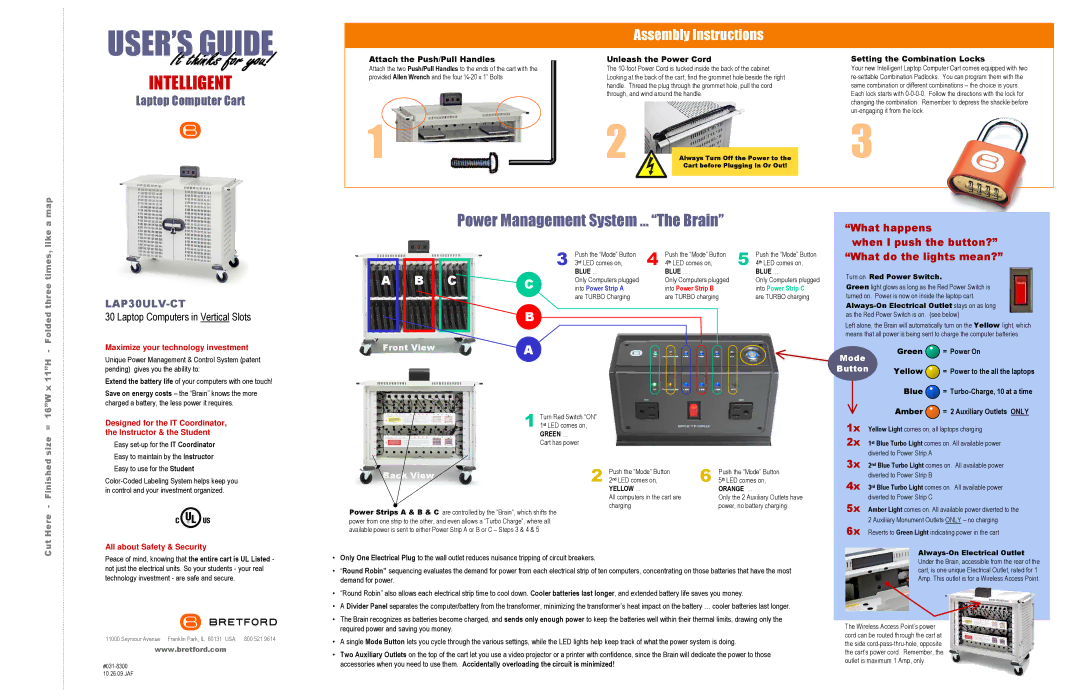

USER’S GUIDE

INTELLIGENT

Laptop Computer Cart

LAP30ULV-CT

30 Laptop Computers in Vertical Slots

Cable Management System … “The Cable Clutter Closet”

Labels inside the Cable Clutter Closet show you how to use the Color // Number Code labels for optimal advantage of the Brain and its Turbocharge Mode

Power Module keeps the constant flow of power from a single wall outlet charging batteries where needed.

LED Lights

on the Power Module keep you informed at a glance of what’s going on in the cart

Directional Locking Casters can be locked as a rigid caster for easy rolling down the hallway, unlocked to swivel for easily getting into tight spaces

Front View

3-point Security on both front & back doors with programmable combination padlocks, plus recessed doors make it difficult to pry them open

Doors fold back against the sides of the cart, out of the user’s way, both front & back

Clear Cable Lock in front of the Cable

“A place for everything, and everything in its place.”

Cord Winder on the handle, provides easy access up high, so that the cord does not get crimped under the

Hooks in the front of the cart slide left and right. Loosen the 3 thumb screws and slide the Cable Lock so that the computer power plugs can hang directly in front of the computer slot, making it easy to find the right connector for each computer. Then slide the Cable Lock so that the cables are locked in their slots. Tighten thumb screws.

You know from personal experience the value of keeping your closet neat and organized. You know exactly where everything is when you open the door. So Bretford developed a “closet” for all the cords and cables associated with Laptop Computers.

Your Intelligent Laptop Cart has its own “Cable Clutter Closet” – a lockable compartment at the back of the cart especially designed to keep all the cables away from the computers and the hands that retrieve those computers from the cart.

The interior Divider Panel separates the cart so that 75% of the cart is dedicated to the computers in the front and 25% is dedicated to cables and power adapters in the back. Holes in the Divider Panel allow the computer connector cables to pass thru and be easily connected to the computers for charging.

By separating the computer from its power adapter, you minimize the amount of heat beside the computer battery, allowing it to charge at a lower temperature,

…allowing the battery to charge faster. (see “How Does a Laptop Computer Manage Heat?” above)

Only the IT Administrator has access to the Cable Clutter Closet, since it has its own programmable Combination Padlock.

Fold-back doors for easy access and full view of the closet – you immediately know if something is missing or out of place.

Special Cable Bins for the power adapters and their cables provide nesting for cordsets.

Comes with appropriate stickers for color and number coding the computers, the slots and the cable sets.

wheel

Cable Clutter Closet keeps the cable sets and adapter

bricks organized,Back View everything in its place,

with easy access
