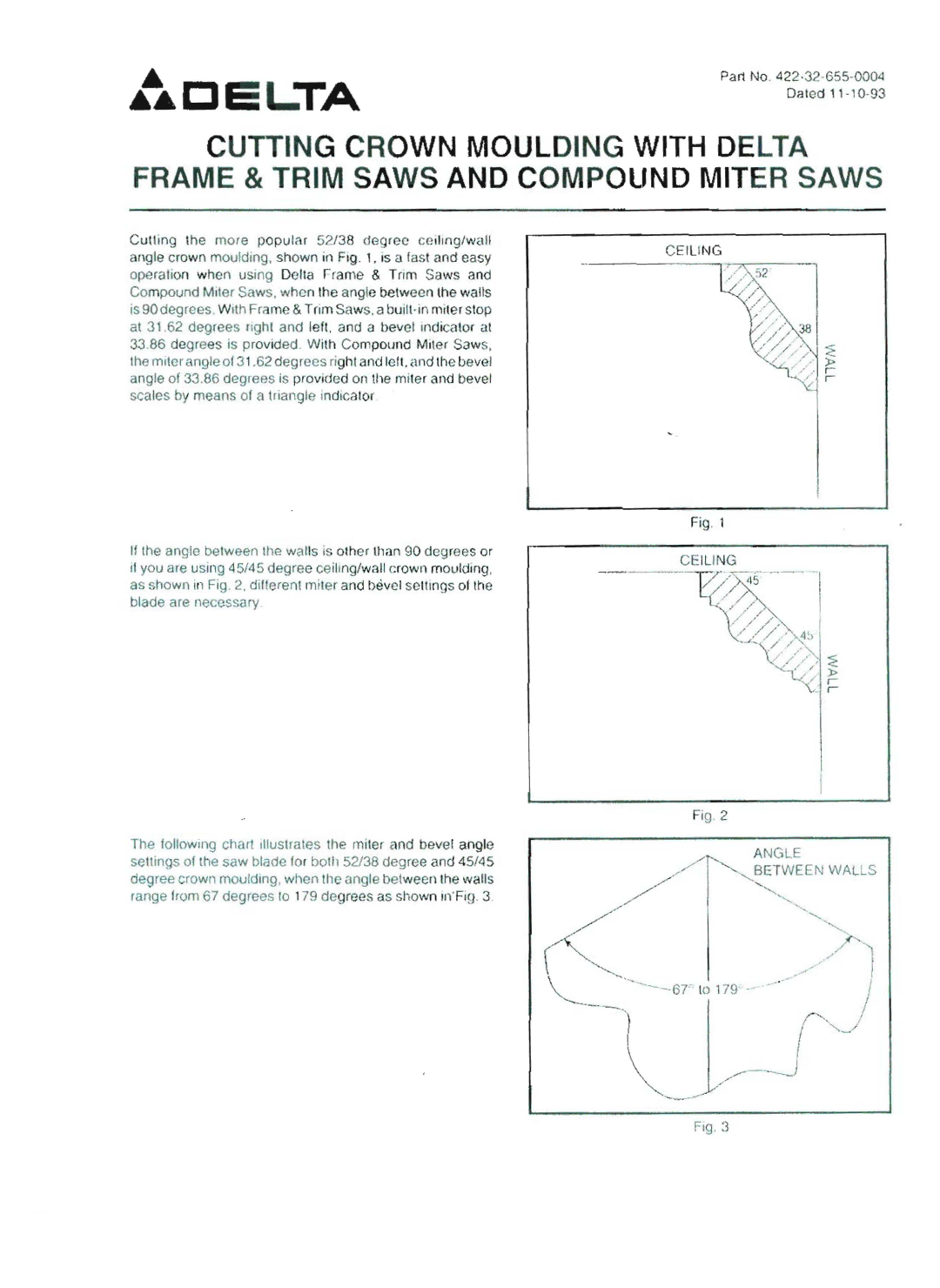

CUTTING CROWN MOULDING WITH DELTA

FRAME & TRIM SAWS AND COMPOliND MITER SAWS

Cutling the more populi1r 52/38 degree ceiling/wail angle crown moulding. shown in Fig. 1. is n last and easy operation when uSing Delta rrame & Trim Saws and Compound Miler Saws. when the angle between the waUs iS90degrees. With Frame & Trim Saws, a built, in mllerslop at 31,62 degrees fight and left, and a bevel Indicalor at

33.86degrees is provided. With Compound Miler Saws. lhe miler angle of 31.62 degrees right and left. and the bevel angle of 33.86 degrees is provirJed on (he miter and bevel scales by means of a triangle indicator

If Ihe angle between the walls is other Ulan 90 degrees or il you are using 45/45 degree ceiling/wall crown moulding, as shown in Fig. 2, different miter and bevel seltings of Ihe blade are necessary

CEILING

Fig,l

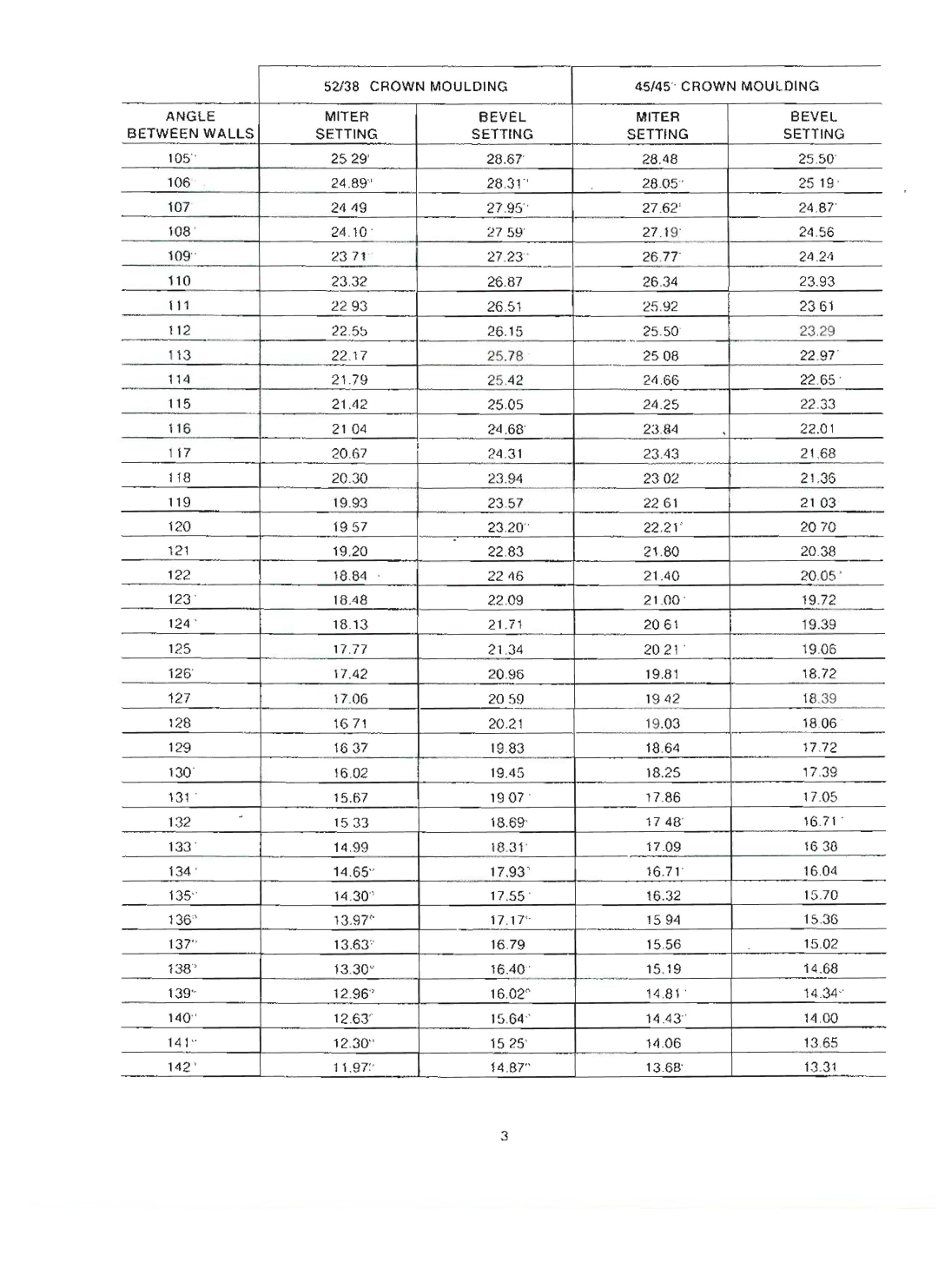

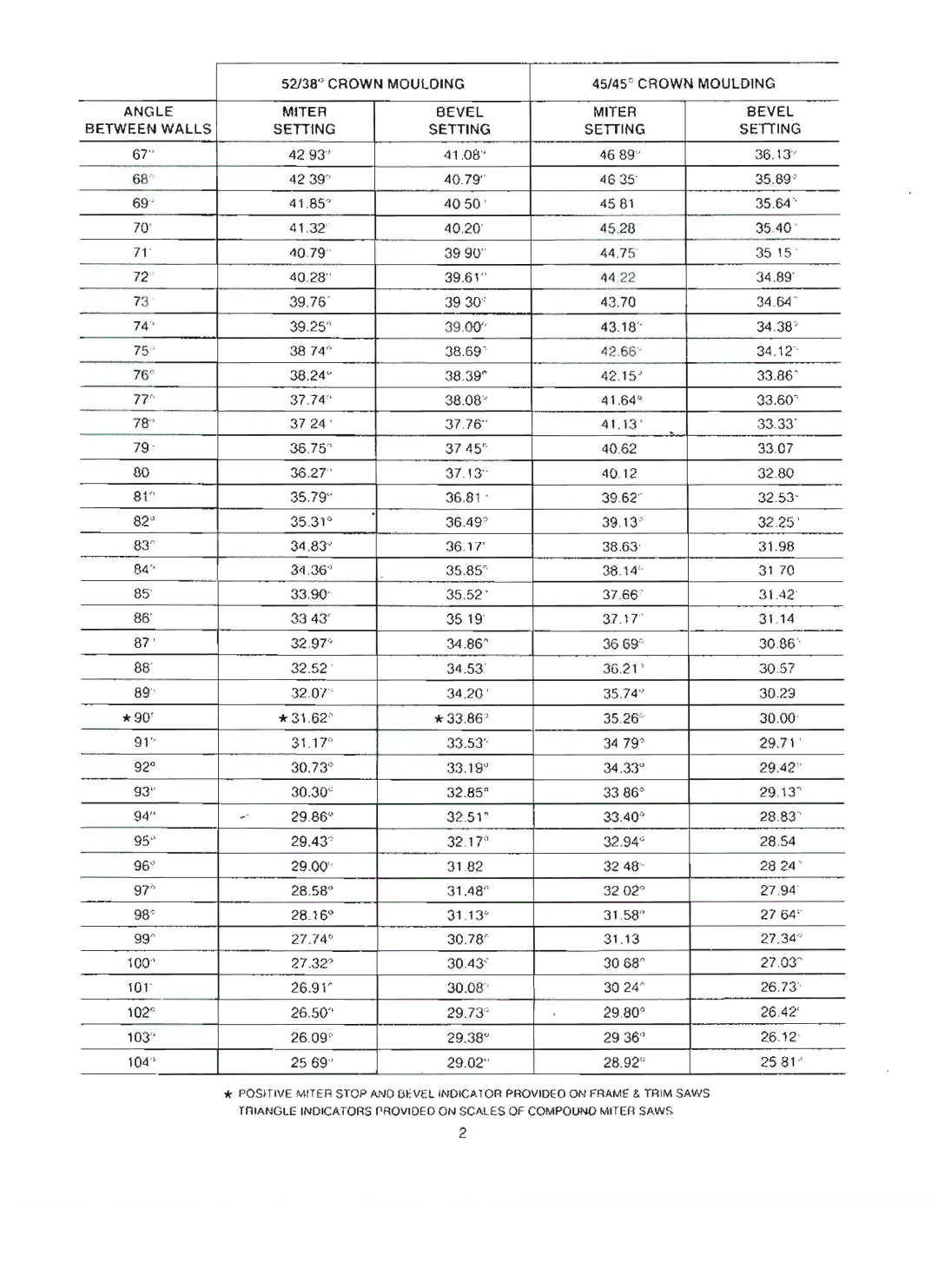

The following chart Illustrates the miter and bevel angle sellings of the saw blade for bolll 52/38 degree and 45/45 degree crown moulding, when the angle between the walls range from 67 degrees 10 179 degrees as shown IJYFig. 3

Fig 2

Fig. :3

Page 1 Page 2
Page 1
