ZET757WW, ZET737WW installation instructions GE Monogram Installation Instructions
Models:
ZET737BW
ZET757BW
ZET757WW
ZET737WW
1
1
20
20
Download
20 pages
6.77 Kb
1
2
3
4
5
6
7
8
<
>
Install
Dimension
Securely fasten oven to cabinet using the
Page 1
Image 1
GE Monogram
®

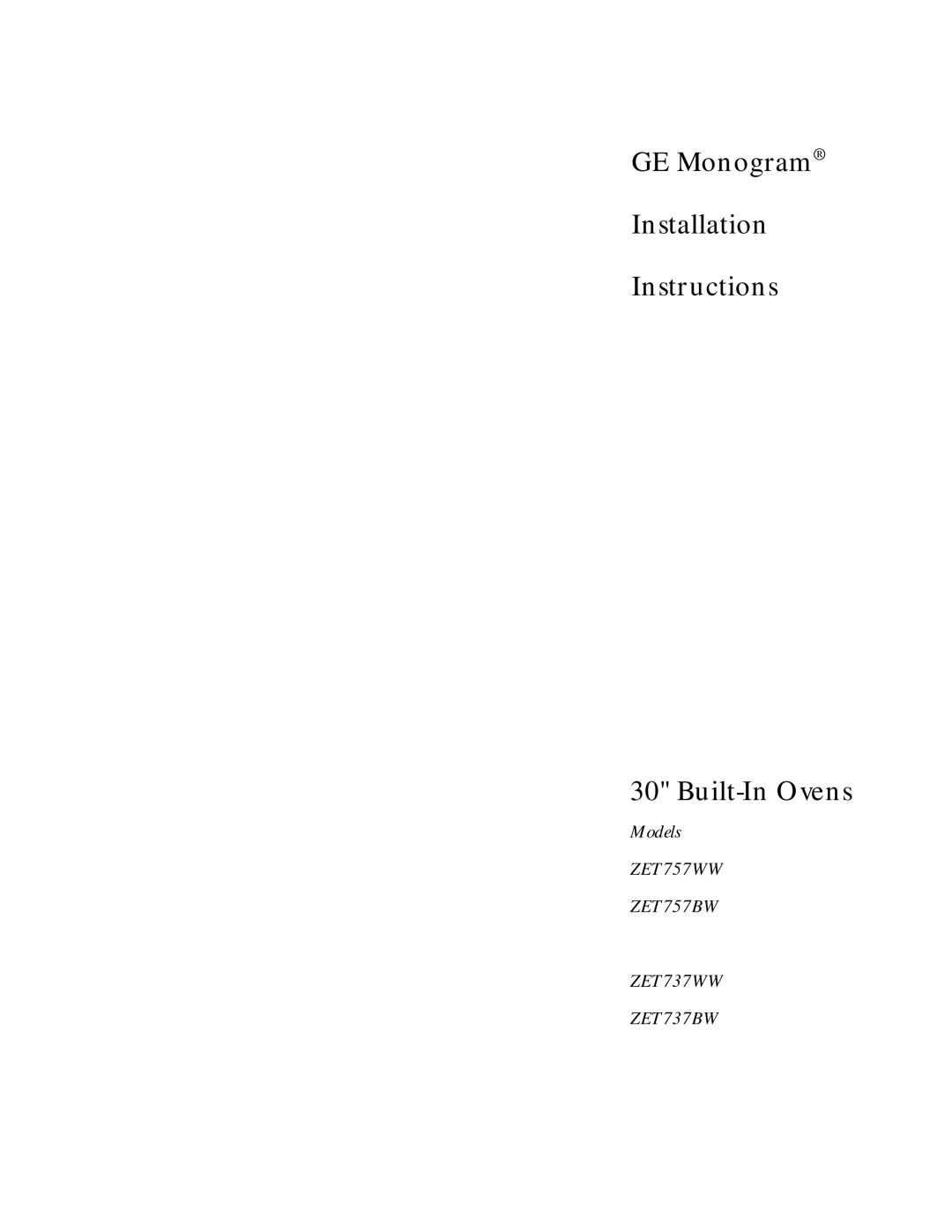

Installation
Instructions
30"
Built-In
Ovens
Models
ZET757WW
ZET757BW
ZET737WW
ZET737BW
Page 2
Page 1
Image 1
Page 2

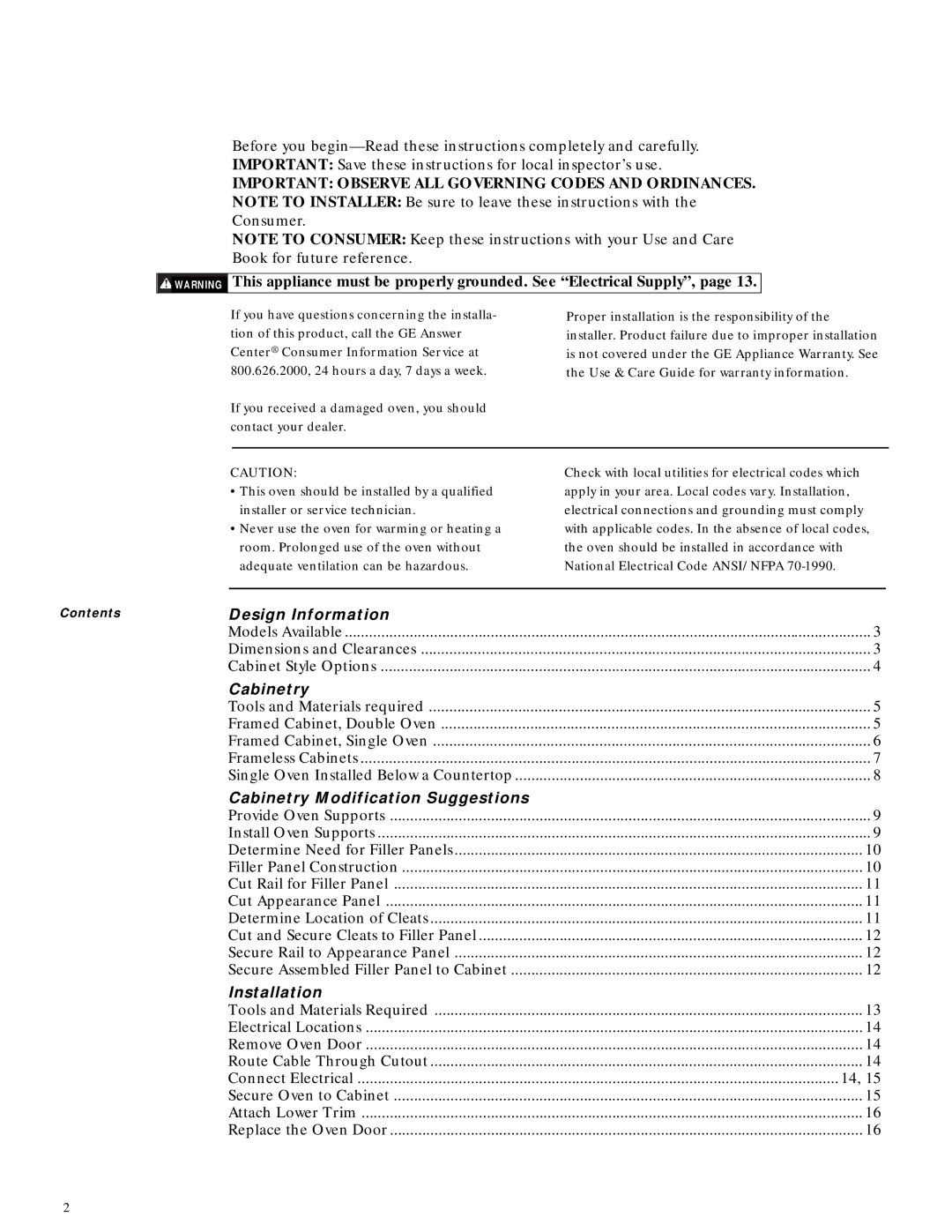

Contents
30 Built-InOvens
GE Monogram Installation Instructions
Models ZET757WW ZET757BW
ZET737WW ZET737BW
Design Information
Installation
Cabinetry
Cabinetry Modification Suggestions
Built-InOvens
Design Information

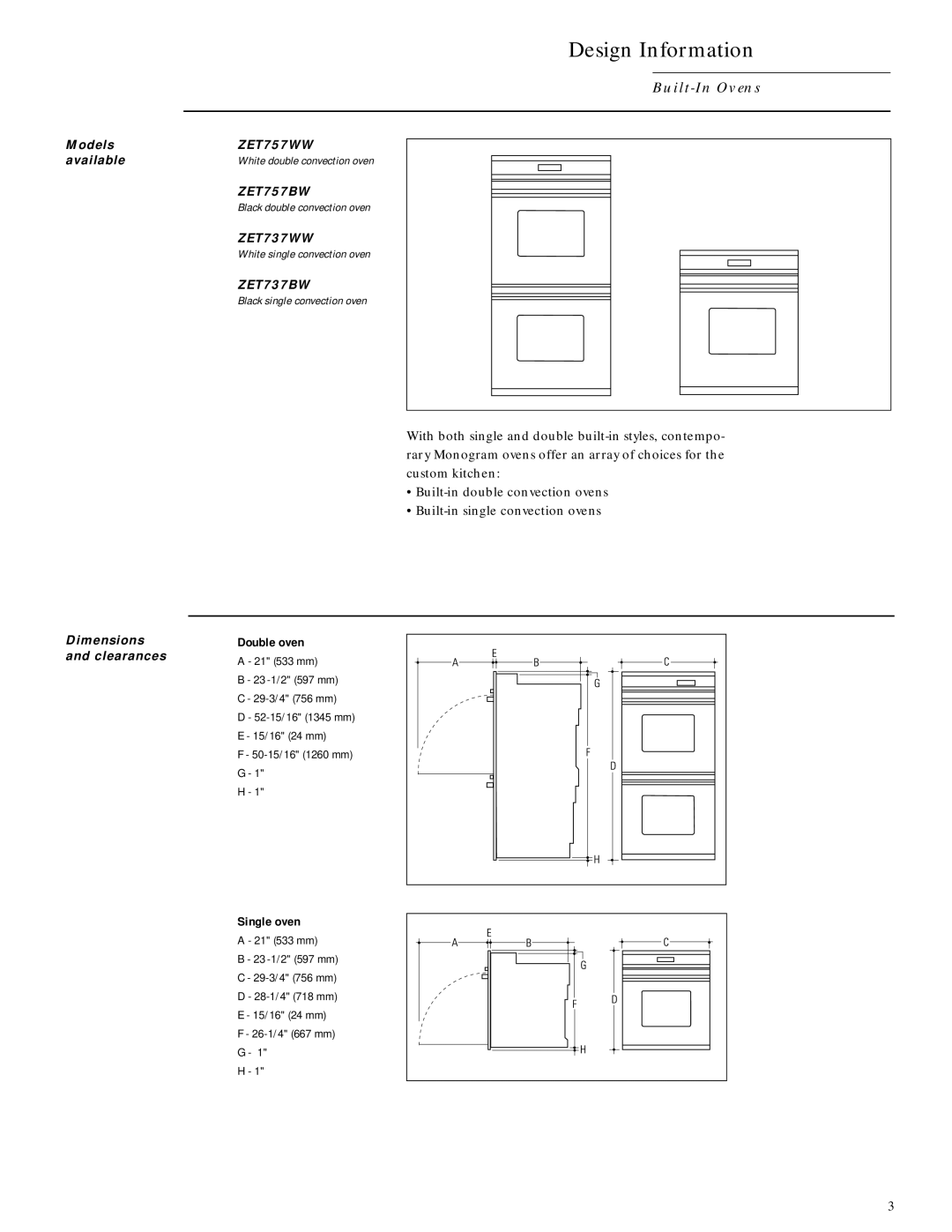

Dimensions and clearances
Models
Built-InOvens
Design Information

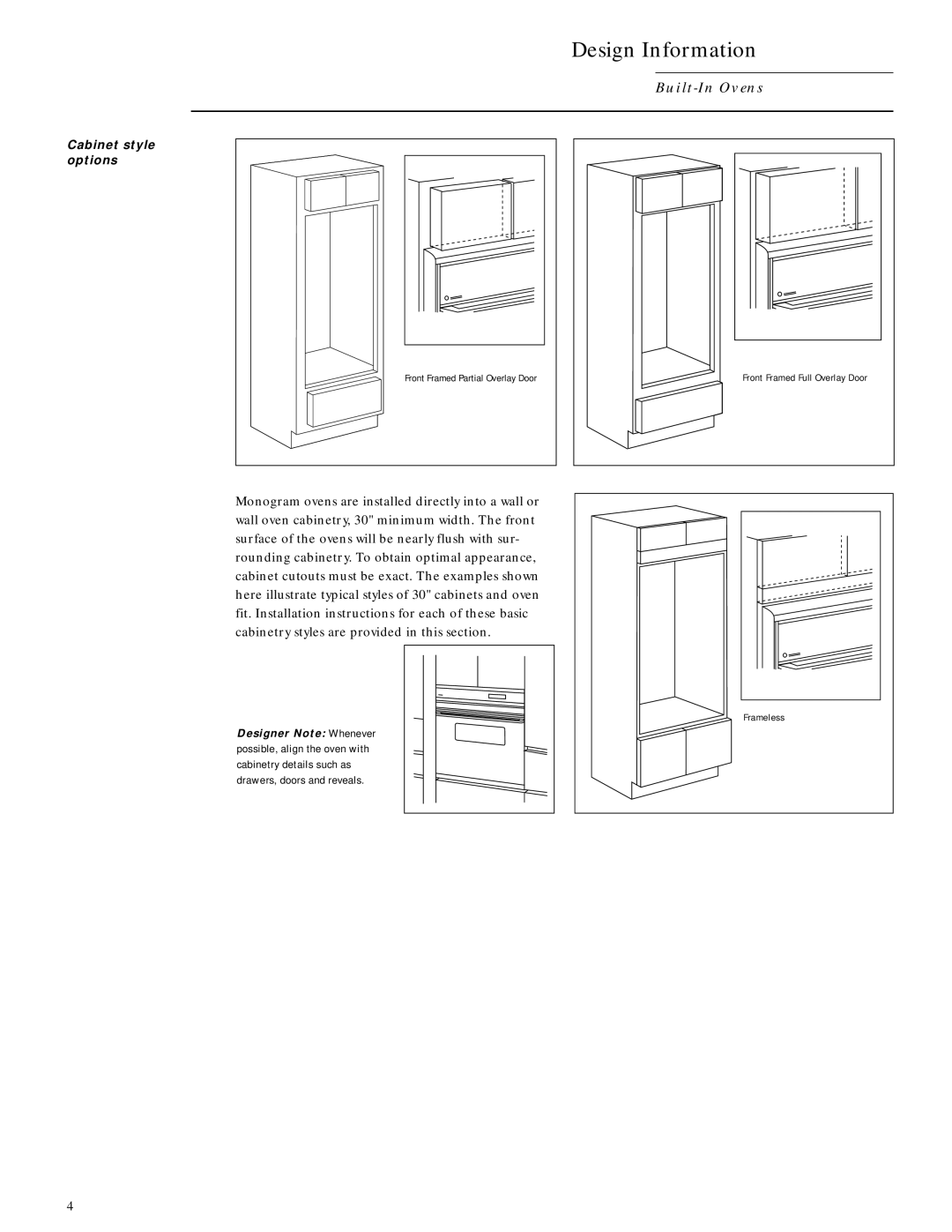

Cabinet style options
Built-InOvens
Cabinetry
Tools and materials required
Framed cabinet double oven
Built-InOvens
Cabinetry
Framed cabinet single oven
Built-InOvens
Cabinetry
Frameless
cabinets
Cabinetry
Single oven installed below a countertop
Built-InOvens
Provide oven supports Install oven supports
Cabinetry Modification Suggestions
Built-InOvens
Built-InOvens
Cabinetry Modifications Suggestions
Determine need for filler panels
Filler panel construction
Built-InOvens
Cabinetry Modification Suggestions
Cut rail for filler panel Cut appearance panel
Determine location of cleats
Built-InOvens
Cabinetry Modification Suggestions
Cut and secure cleats to filler panel
Secure rail to appearance panel
Built-InOvens
Installation
Tools and materials required Electrical locations
Built-InOvens
Installation
Remove oven door Connect electrical
Securely fasten oven to cabinet using the
Installation
Built-InOvens
Secure oven to cabinet
Built-InOvens
Installation
Attach lower trim
Built-InOvens
Built-InOvens
Built-InOvens
