GE Monogram ZET737WW, ZET757WW Cabinetry, Built-InOvens, Single oven installed below a countertop

Single oven installed below a countertop

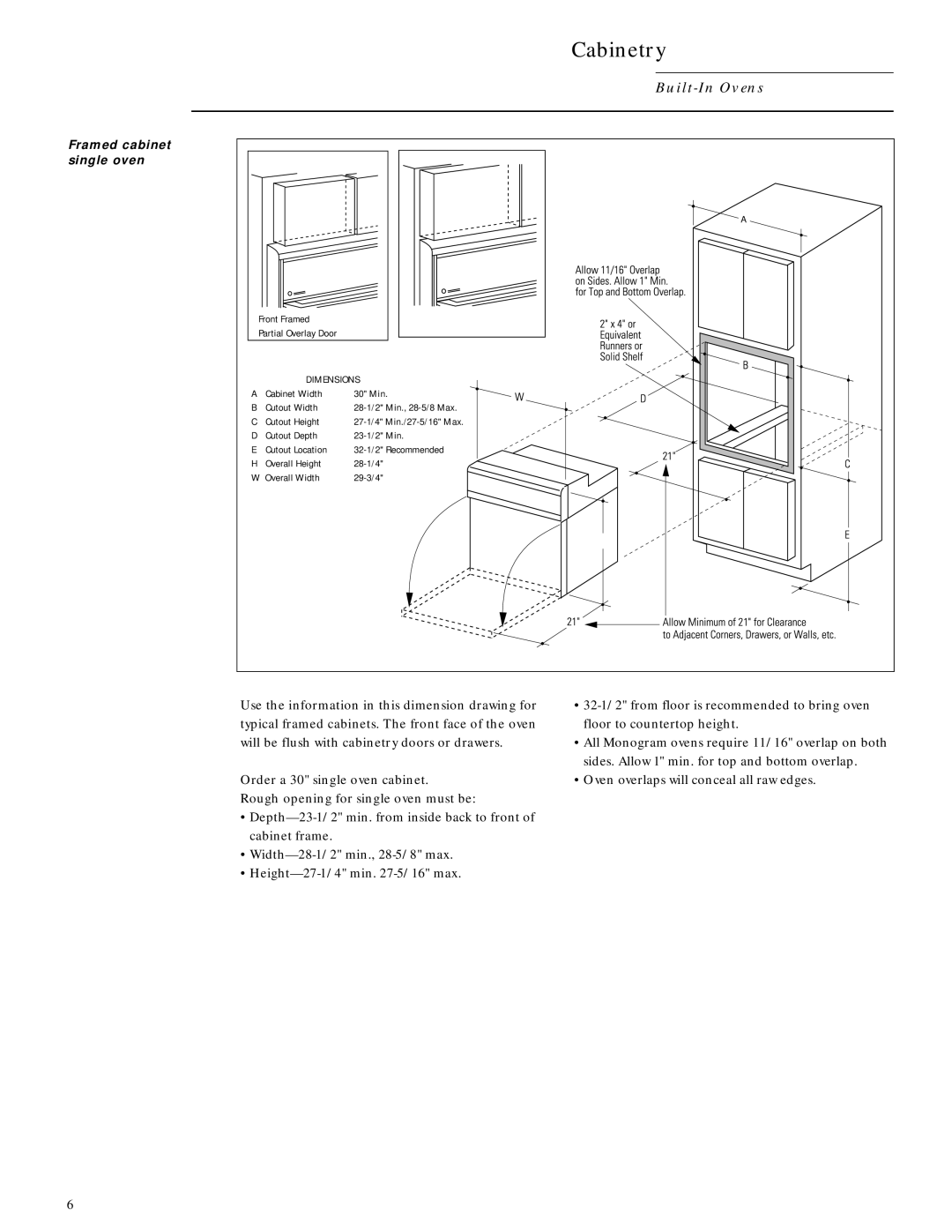

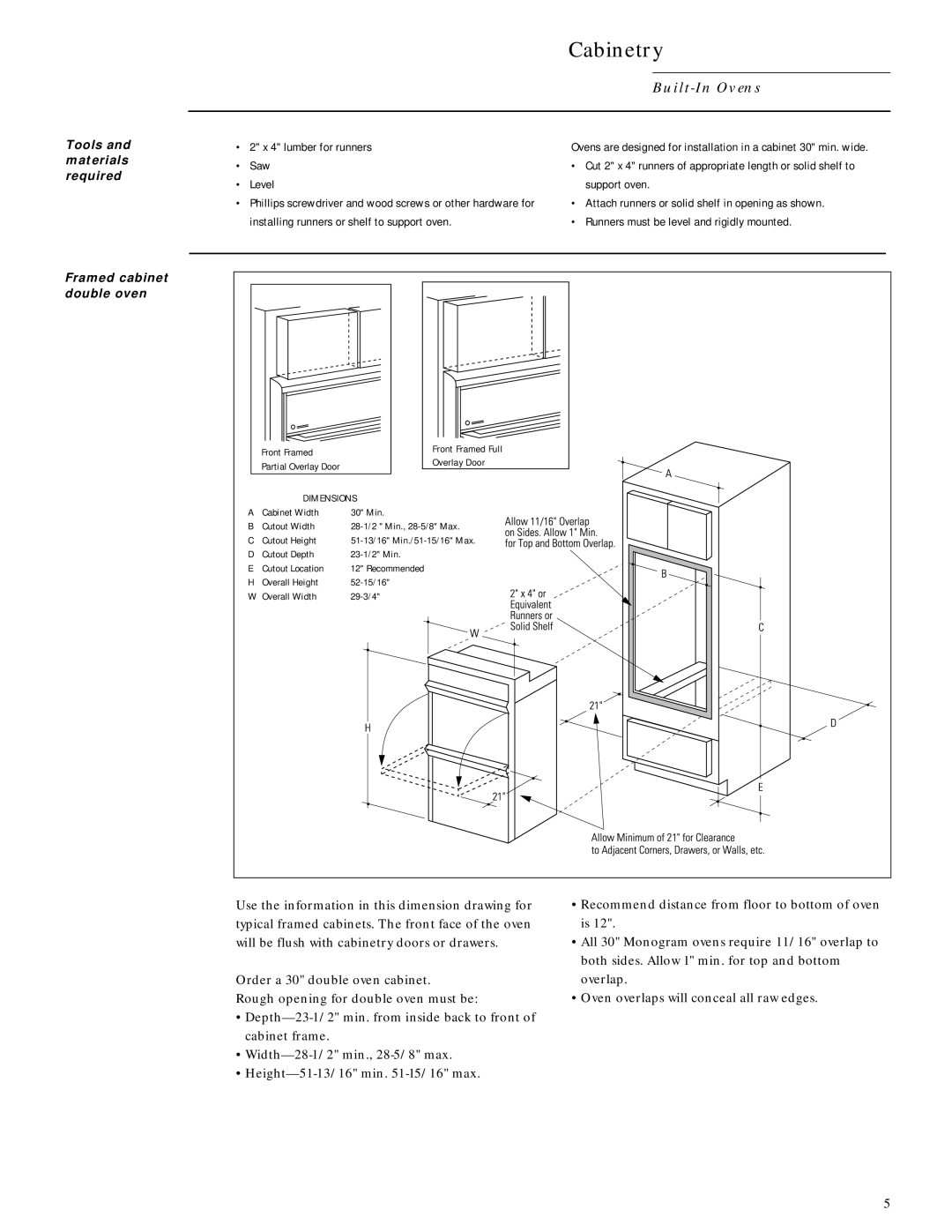

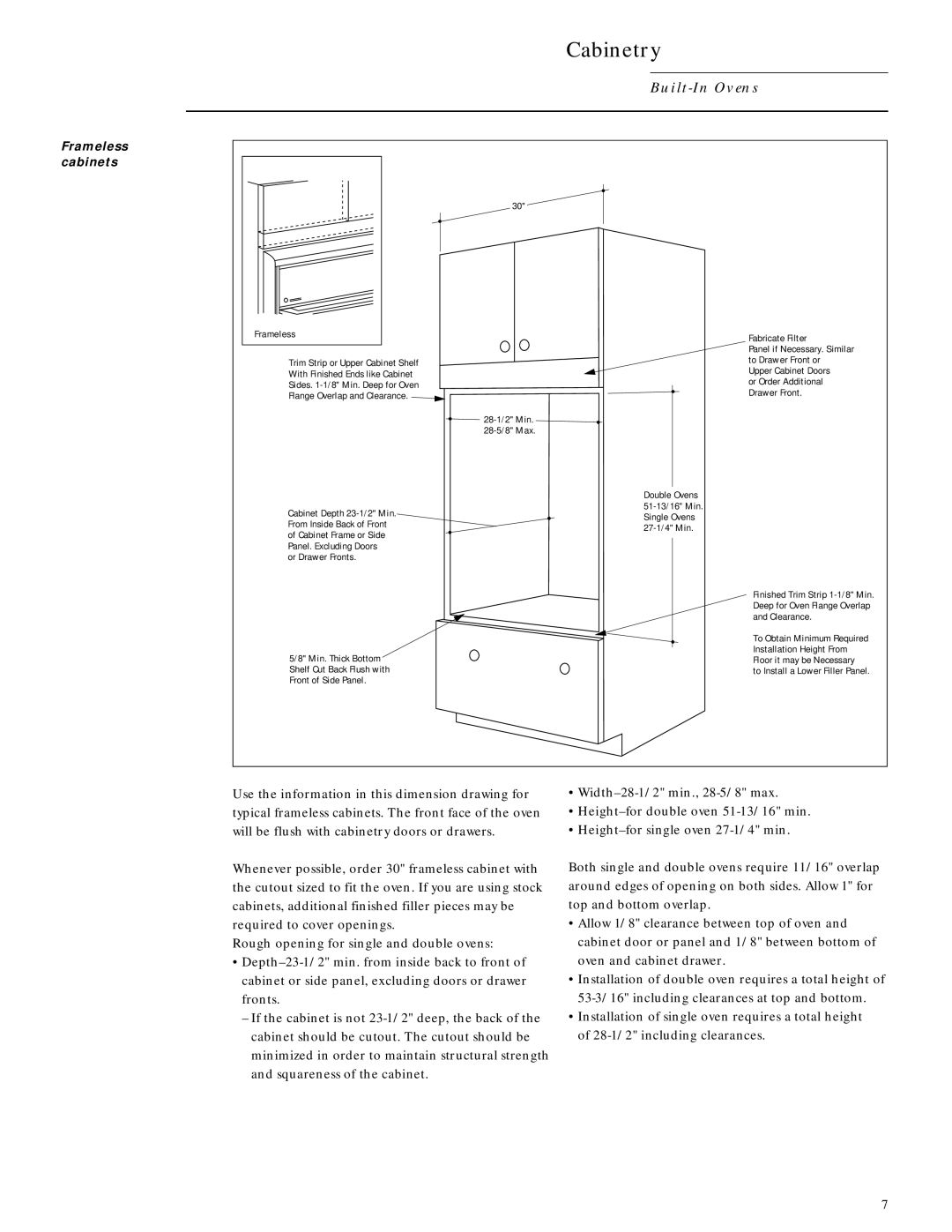

Cabinetry

Built-In Ovens

See Cooktop
Installation Instructions	1-1/2" Cabinet Top
For Cutout
	25"

5"

36" Min.

28-1/2" Min.

Junction28-5/8" Max.

Box

22" Min.

Above

Platform

Floor

24" Min.

27-1/4" Min.

27-5/16" Max.

3/4" Support Platform and 2 x 4‘s Required, Must Support 150 lbs.

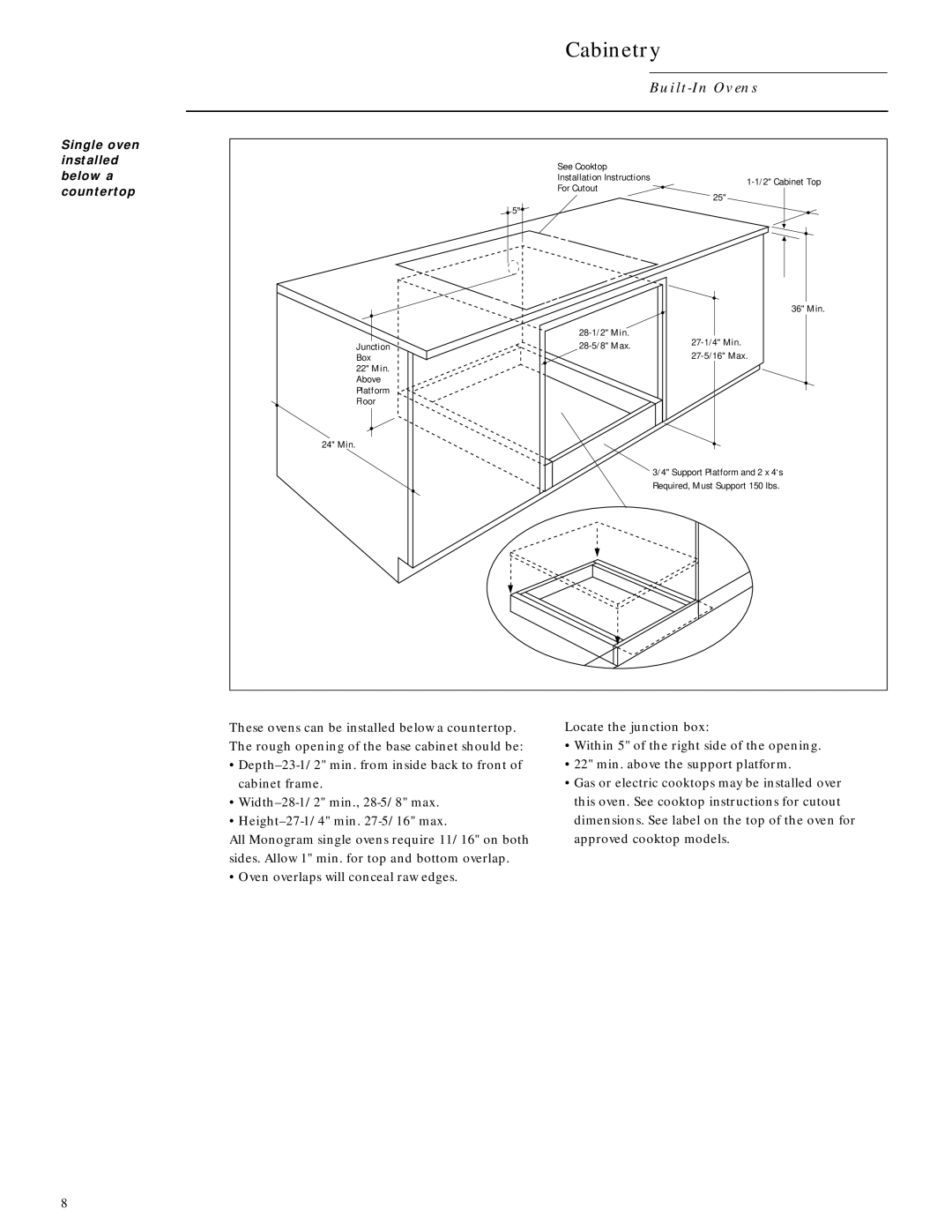

These ovens can be installed below a countertop. The rough opening of the base cabinet should be:

•Depth–23-1/2" min. from inside back to front of cabinet frame.

•Width–28-1/2" min., 28-5/8" max.

•Height–27-1/4" min. 27-5/16" max.

All Monogram single ovens require 11/16" on both sides. Allow 1" min. for top and bottom overlap.

• Oven overlaps will conceal raw edges.

Locate the junction box:

•Within 5" of the right side of the opening.

•22" min. above the support platform.

•Gas or electric cooktops may be installed over this oven. See cooktop instructions for cutout dimensions. See label on the top of the oven for approved cooktop models.

8
