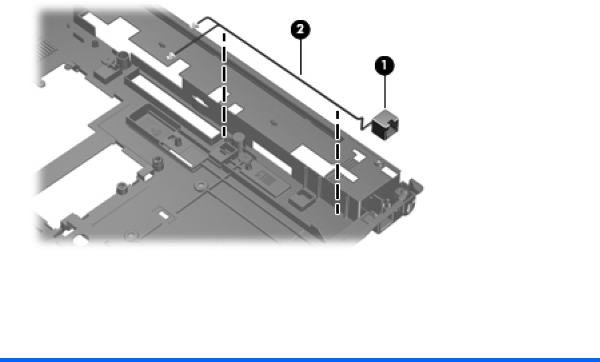

3.Remove the RJ-11 connector cable from the clips and routing channel (2) built into the base enclosure.

4.Remove the RJ-11 connector cable from the base enclosure. Reverse this procedure to install the RJ-11 connector cable.

ExpressCard assembly

Description

Spare part number





ExpressCard assembly

495085-001





Before removing the ExpressCard assembly, follow these steps:

1.Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2.Disconnect all external devices connected to the computer.

3.Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4.Remove the battery (see Battery on page 44).

5.Remove the following components:

a.Hard drive (see Hard drive on page 50)

b.Optical drive (see Optical drive on page 46)

c.Keyboard (see Keyboard on page 60)

d.Switch cover (see Switch cover on page 65)

e.Display assembly (see Display assembly on page 68)

f.Top cover (see Top cover on page 74)

g.Fan (see Fan on page 79)
