Kramer Electronics user manual Overview, Defining the VS-88HN 8x8 Hdmi Matrix Switcher

3 Overview

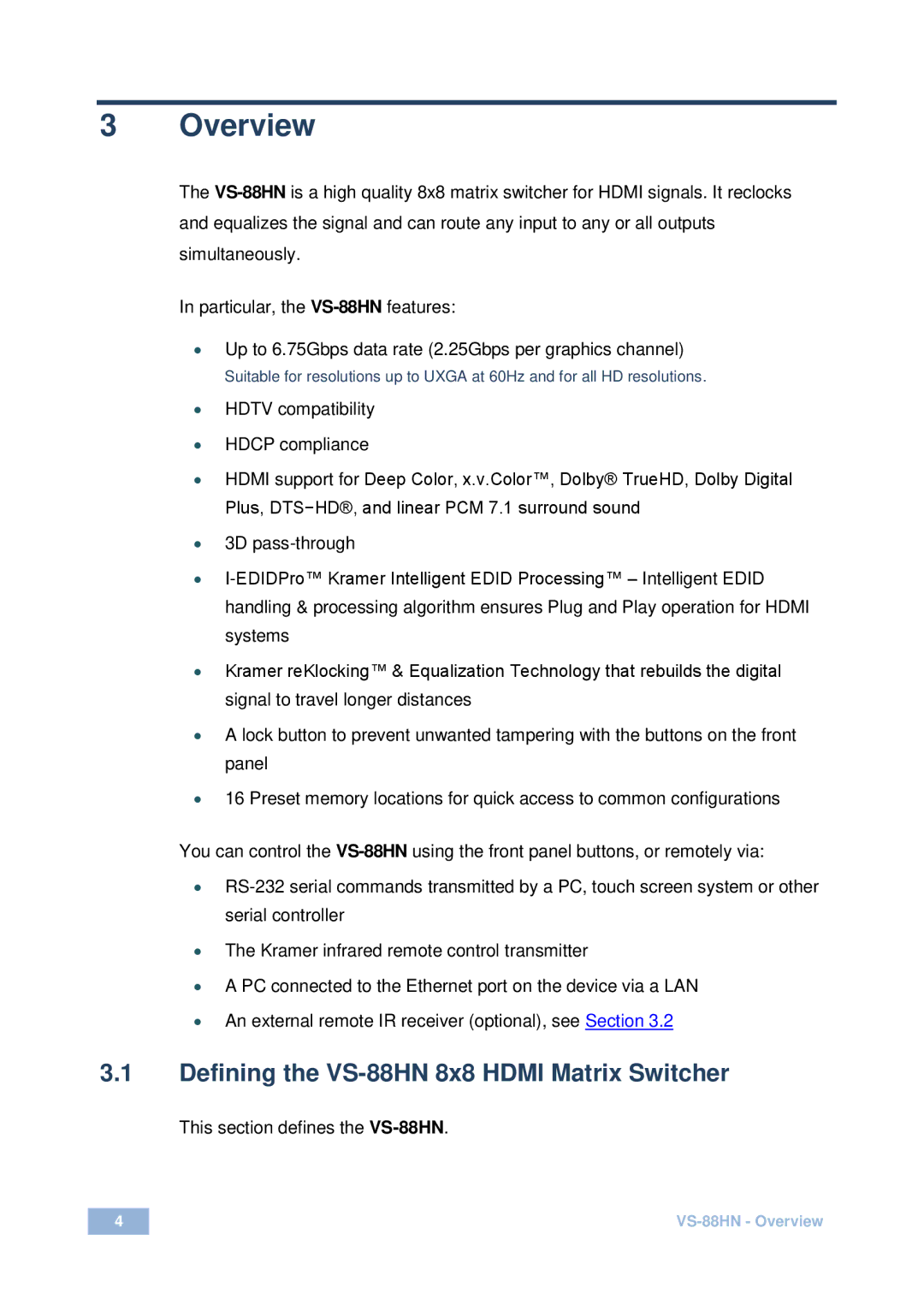

The VS-88HNis a high quality 8x8 matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.

In particular, the VS-88HNfeatures:

∙Up to 6.75Gbps data rate (2.25Gbps per graphics channel)

Suitable for resolutions up to UXGA at 60Hz and for all HD resolutions.

∙HDTV compatibility

∙HDCP compliance

∙HDMI support for Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS−HD®, and linear PCM 7.1 surround sound

∙3D pass-through

∙I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems

∙Kramer reKlocking™ & Equalization Technology that rebuilds the digital signal to travel longer distances

∙A lock button to prevent unwanted tampering with the buttons on the front panel

∙16 Preset memory locations for quick access to common configurations

You can control the VS-88HNusing the front panel buttons, or remotely via:

∙RS-232 serial commands transmitted by a PC, touch screen system or other serial controller

∙The Kramer infrared remote control transmitter

∙A PC connected to the Ethernet port on the device via a LAN

∙An external remote IR receiver (optional), see Section 3.2

3.1Defining the VS-88HN 8x8 HDMI Matrix Switcher

This section defines the VS-88HN.

4 VS-88HN - Overview
