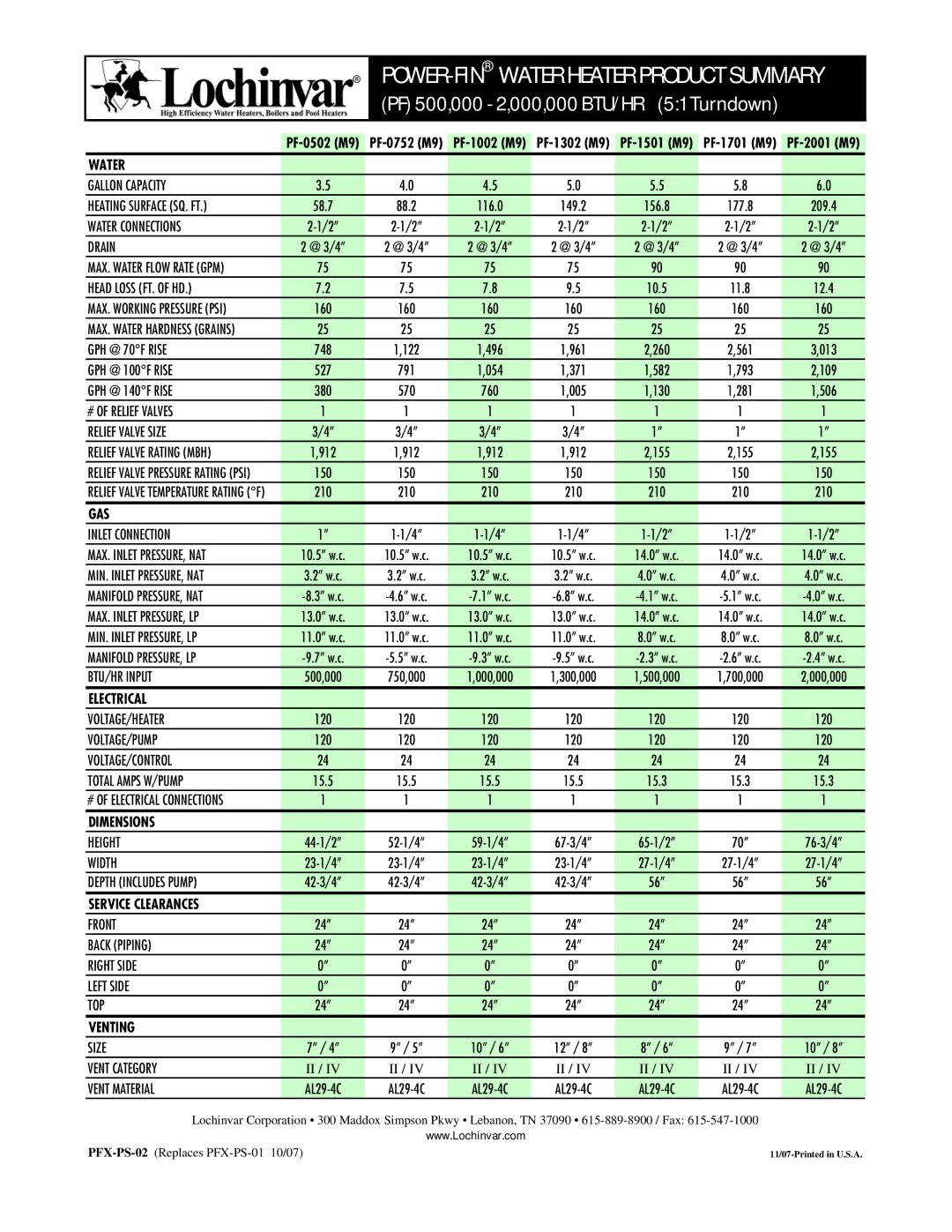

POWER-FIN®WATER HEATER PRODUCT SUMMARY

(PF) 500,000 - 2,000,000 BTU/HR (5:1 Turndown)



PF-0502 (M9)

PF-0752 (M9)

PF-1002 (M9)

PF-1302 (M9)

PF-1501 (M9)

PF-1701 (M9)

PF-2001 (M9)

WATER















GALLON CAPACITY

3.5

4.0

4.5

5.0

5.5

5.8

6.0

HEATING SURFACE (SQ. FT.)

58.7

88.2

116.0

149.2

156.8

177.8

209.4

WATER CONNECTIONS

2-1/2”

2-1/2”

2-1/2”

2-1/2”

2-1/2”

2-1/2”

2-1/2”

DRAIN

2 @ 3/4”

2 @ 3/4”

2 @ 3/4”

2 @ 3/4”

2 @ 3/4”

2 @ 3/4”

2 @ 3/4”

MAX. WATER FLOW RATE (GPM)

75

75

75

75

90

90

90

HEAD LOSS (FT. OF HD.)

7.2

7.5

7.8

9.5

10.5

11.8

12.4

MAX. WORKING PRESSURE (PSI)

160

160

160

160

160

160

160

MAX. WATER HARDNESS (GRAINS)

25

25

25

25

25

25

25

GPH @ 70°F RISE

748

1,122

1,496

1,961

2,260

2,561

3,013

GPH @ 100°F RISE

527

791

1,054

1,371

1,582

1,793

2,109

GPH @ 140°F RISE

380

570

760

1,005

1,130

1,281

1,506

# OF RELIEF VALVES

1

1

1

1

1

1

1

RELIEF VALVE SIZE

3/4”

3/4”

3/4”

3/4”

1”

1”

1”

RELIEF VALVE RATING (MBH)

1,912

1,912

1,912

1,912

2,155

2,155

2,155

RELIEF VALVE PRESSURE RATING (PSI)

150

150

150

150

150

150

150

RELIEF VALVE TEMPERATURE RATING (°F)

210

210

210

210

210

210

210

GAS















INLET CONNECTION

1”

1-1/4”

1-1/4”

1-1/4”

1-1/2”

1-1/2”

1-1/2”

MAX. INLET PRESSURE, NAT

10.5” w.c.

10.5” w.c.

10.5” w.c.

10.5” w.c.

14.0” w.c.

14.0” w.c.

14.0” w.c.

MIN. INLET PRESSURE, NAT

3.2” w.c.

3.2” w.c.

3.2” w.c.

3.2” w.c.

4.0” w.c.

4.0” w.c.

4.0” w.c.

MANIFOLD PRESSURE, NAT

-8.3” w.c.

-4.6” w.c.

-7.1” w.c.

-6.8” w.c.

-4.1” w.c.

-5.1” w.c.

-4.0” w.c.

MAX. INLET PRESSURE, LP

13.0” w.c.

13.0” w.c.

13.0” w.c.

13.0” w.c.

14.0” w.c.

14.0” w.c.

14.0” w.c.

MIN. INLET PRESSURE, LP

11.0” w.c.

11.0” w.c.

11.0” w.c.

11.0” w.c.

8.0” w.c.

8.0” w.c.

8.0” w.c.

MANIFOLD PRESSURE, LP

-9.7” w.c.

-5.5” w.c.

-9.3” w.c.

-9.5” w.c.

-2.3” w.c.

-2.6” w.c.

-2.4” w.c.

BTU/HR INPUT

500,000

750,000

1,000,000

1,300,000

1,500,000

1,700,000

2,000,000

ELECTRICAL















VOLTAGE/HEATER

120

120

120

120

120

120

120

VOLTAGE/PUMP

120

120

120

120

120

120

120

VOLTAGE/CONTROL

24

24

24

24

24

24

24

TOTAL AMPS W/PUMP

15.5

15.5

15.5

15.5

15.3

15.3

15.3

# OF ELECTRICAL CONNECTIONS

1

1

1

1

1

1

1

DIMENSIONS















HEIGHT

44-1/2”

52-1/4”

59-1/4”

67-3/4”

65-1/2”

70”

76-3/4”

WIDTH

23-1/4”

23-1/4”

23-1/4”

23-1/4”

27-1/4”

27-1/4”

27-1/4”

DEPTH (INCLUDES PUMP)

42-3/4”

42-3/4”

42-3/4”

42-3/4”

56”

56”

56”

SERVICE CLEARANCES















FRONT

24”

24”

24”

24”

24”

24”

24”

BACK (PIPING)

24”

24”

24”

24”

24”

24”

24”

RIGHT SIDE

0”

0”

0”

0”

0”

0”

0”

LEFT SIDE

0”

0”

0”

0”

0”

0”

0”

TOP

24”

24”

24”

24”

24”

24”

24”

VENTING















SIZE

7” / 4”

9” / 5”

10” / 6”

12” / 8”

8” / 6”

9” / 7”

10” / 8”

VENT CATEGORY

II / IV

II / IV

II / IV

II / IV

II / IV

II / IV

II / IV

VENT MATERIAL

AL29-4C

AL29-4C

AL29-4C

AL29-4C

AL29-4C

AL29-4C

AL29-4C

Lochinvar Corporation • 300 Maddox Simpson Pkwy • Lebanon, TN 37090 • 615-889-8900 / Fax: 615-547-1000

www.Lochinvar.com

PFX-PS-02(Replaces PFX-PS-01 10/07)

11/07-Printed in U.S.A.
