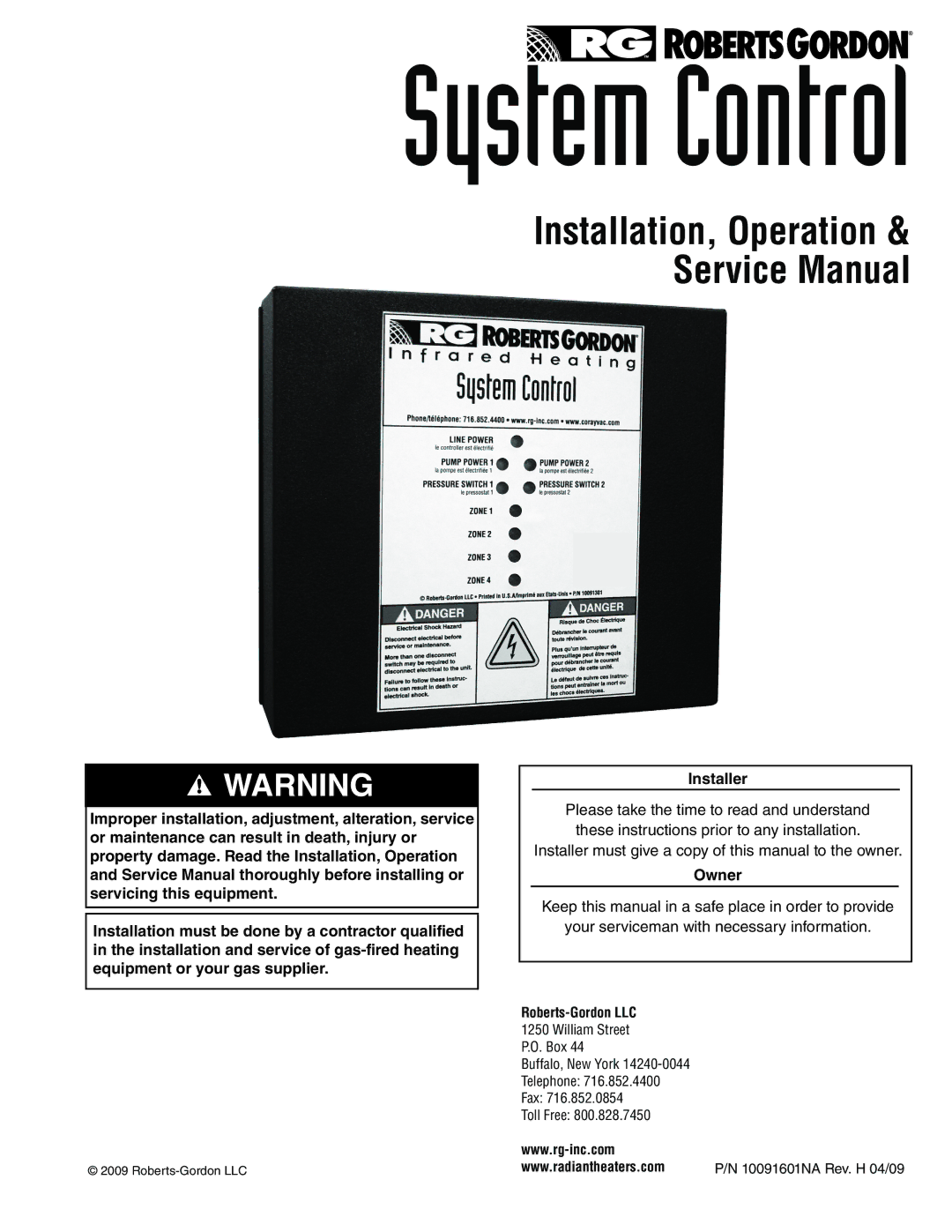

SystemControl

WARNING

Improper installation, adjustment, alteration, service or maintenance can result in death, injury or property damage. Read the Installation, Operation and Service Manual thoroughly before installing or servicing this equipment.

Installation must be done by a contractor qualified in the installation and service of gas-fired heating equipment or your gas supplier.

Installation, Operation & Service Manual

Installer

Please take the time to read and understand these instructions prior to any installation.

Installer must give a copy of this manual to the owner.

Owner

Keep this manual in a safe place in order to provide

your serviceman with necessary information.

Roberts-Gordon LLC

1250 William Street

P.O. Box 44

Buffalo, New York 14240-0044

Telephone: 716.852.4400

Fax: 716.852.0854

Toll Free: 800.828.7450

www.rg-inc.com

www.radiantheaters.com

P/N 10091601NA Rev. H 04/09

Page 1

Image 1

Roberts Gorden HP 208 V 3, HP 208 V 1, HP 230 V 1, HP 460 V 3, HP 230 V 3 service manual SystemControl, Installer, Owner

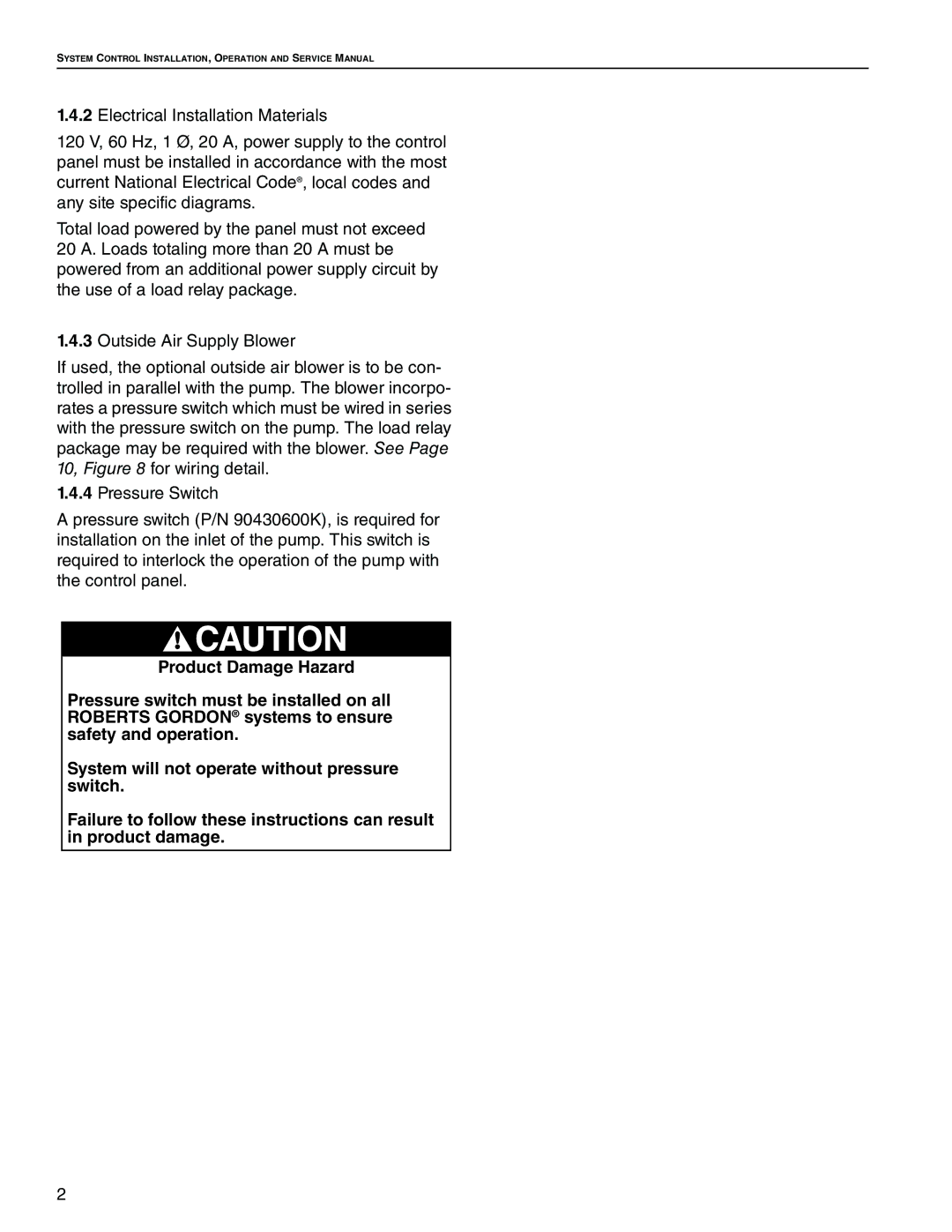

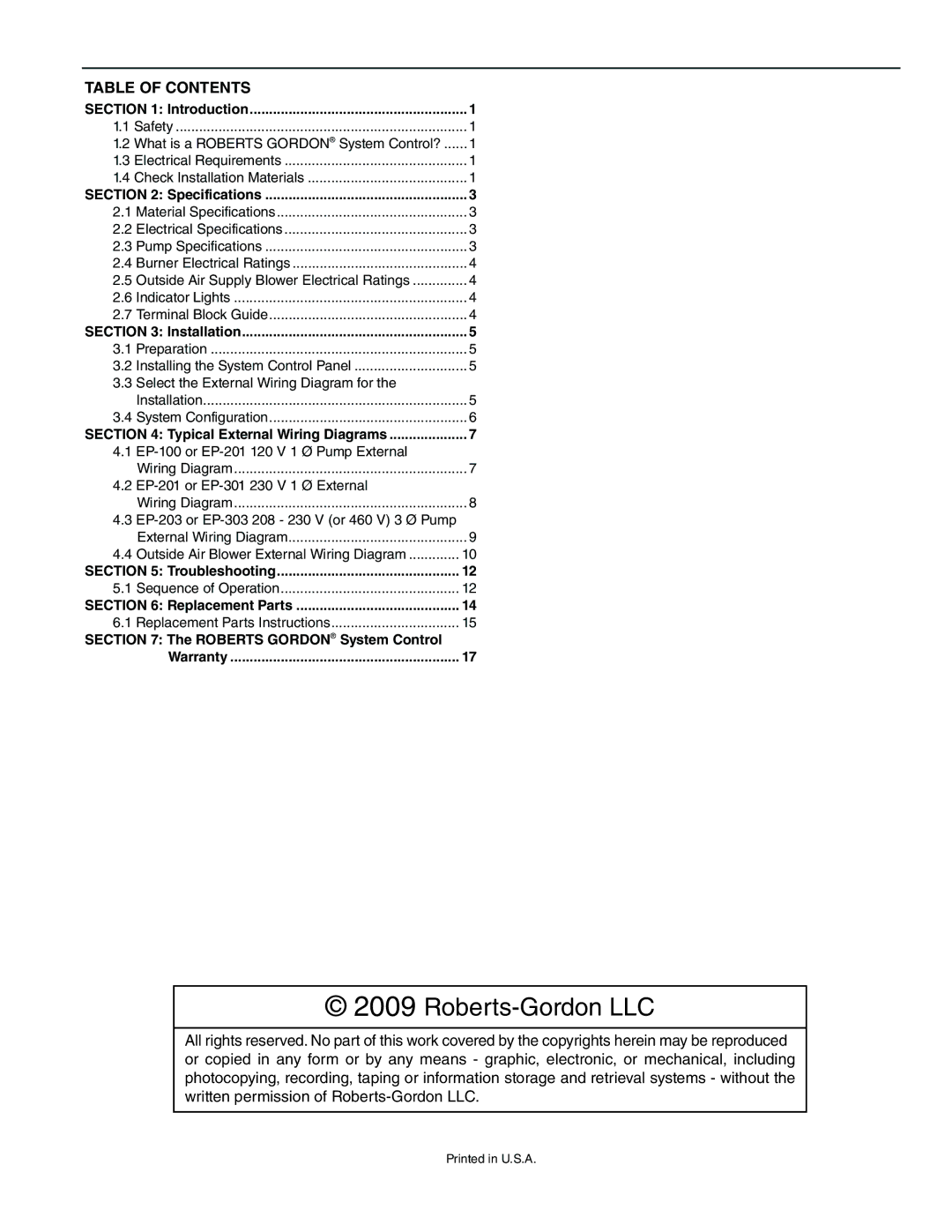

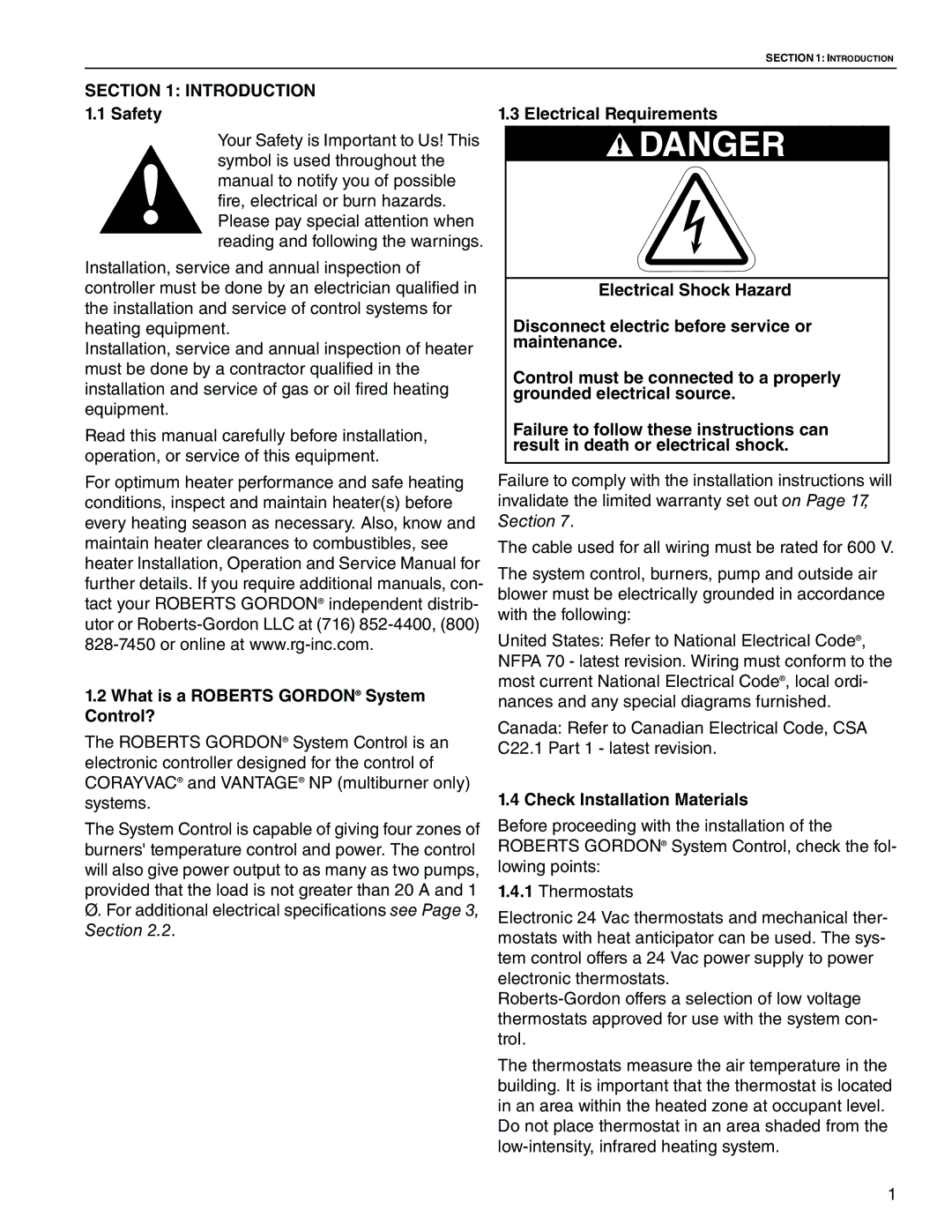

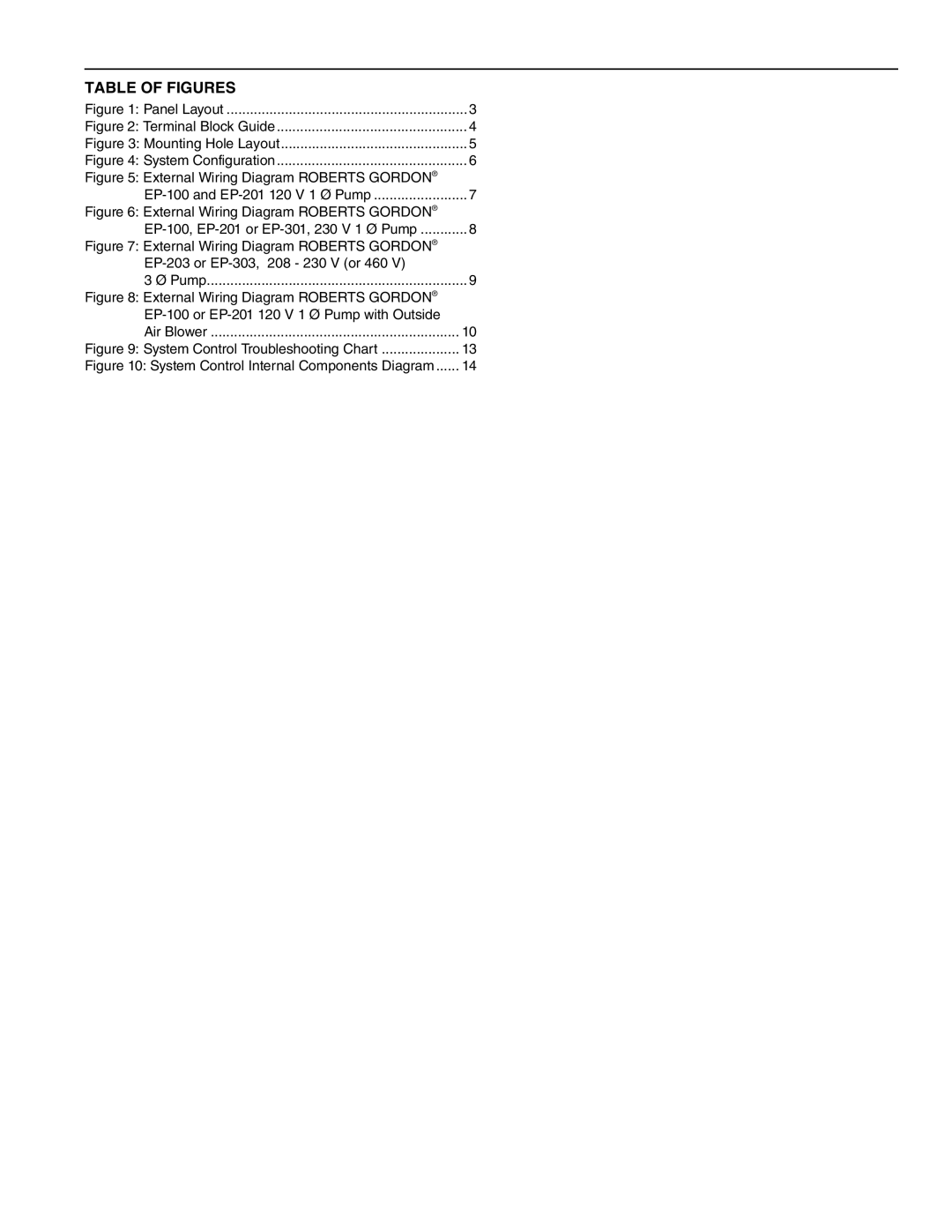

Contents
