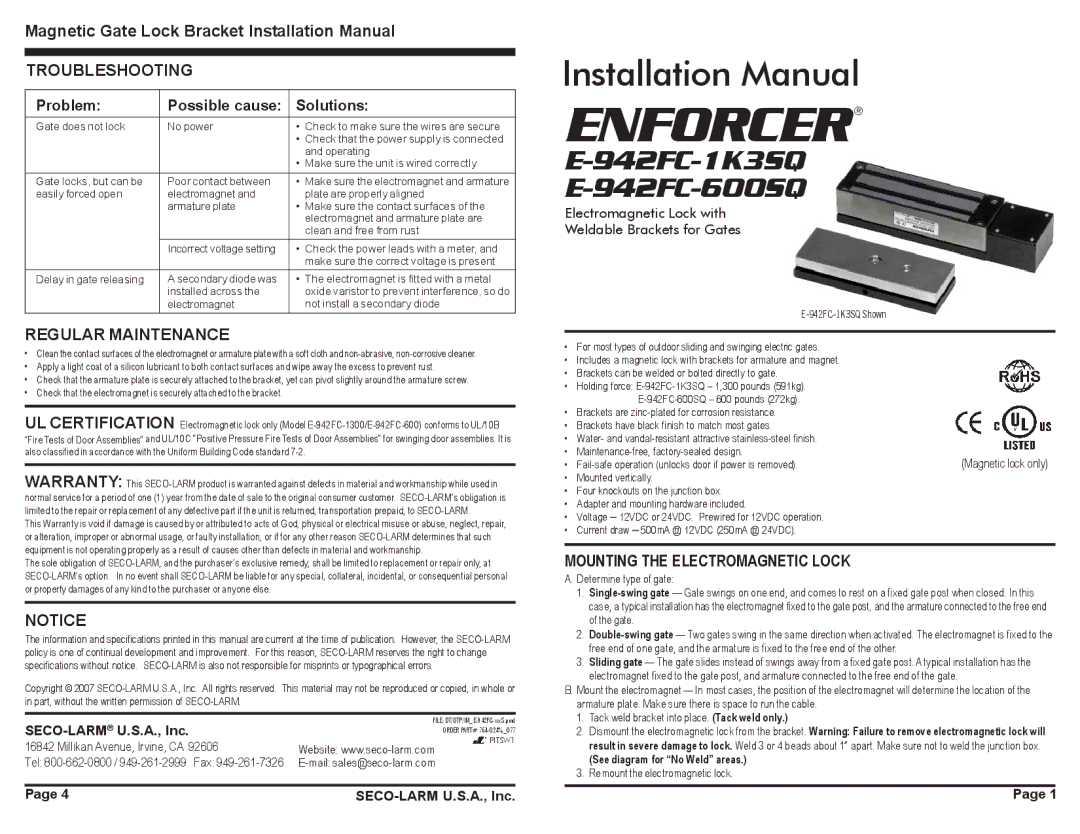

SECO-LARM USA E-942FC-600SQ installation manual Magnetic Gate Lock Bracket Installation Manual

Magnetic Gate Lock Bracket Installation Manual

TROUBLESHOOTING

Problem:	Possible cause:	Solutions:
Gate does not lock	No power	• Check to make sure the wires are secure
		• Check that the power supply is connected
		and operating
		• Make sure the unit is wired correctly
Gate locks, but can be	Poor contact between	• Make sure the electromagnet and armature
easily forced open	electromagnet and	plate are properly aligned
	armature plate	• Make sure the contact surfaces of the
		electromagnet and armature plate are
		clean and free from rust
	Incorrect voltage setting	• Check the power leads with a meter, and
		make sure the correct voltage is present
Delay in gate releasing	A secondary diode was	• The electromagnet is fitted with a metal
	installed across the	oxide varistor to prevent interference, so do
	electromagnet	not install a secondary diode

REGULAR MAINTENANCE

•Clean the contact surfaces of the electromagnet or armature plate with a soft cloth and non-abrasive, non-corrosive cleaner.

•Apply a light coat of a silicon lubricant to both contact surfaces and wipe away the excess to prevent rust.

•Check that the armature plate is securely attached to the bracket, yet can pivot slightly around the armature screw.

•Check that the electromagnet is securely attached to the bracket.

UL CERTIFICATION Electromagnetic lock only (Model E-942FC-1300/E-942FC-600) conforms to UL/10B “Fire Tests of Door Assemblies” and UL/10C “Positive Pressure Fire Tests of Door Assemblies” for swinging door assemblies. It is also classified in accordance with the Uniform Building Code standard 7-2.

WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.

This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.

The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else.

NOTICE

The information and specifications printed in this manual are current at the time of publication. However, the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.

Copyright © 2007 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of SECO-LARM.

SECO-LARM®U.S.A., Inc.	FILE: DT/DTP/IM_E-942FC-xxxS.pmd
	ORDER PART# 764-024%_077
16842 Millikan Avenue, Irvine, CA 92606	PITSW1
	Website: www.seco-larm.com
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326	E-mail: sales@seco-larm.com

Magnetic Gate Lock Bracket Installation Manual

Installation Manual

ENFORCER®

E-942FC-1K3SQ

E-942FC-600SQ

Electromagnetic Lock with

Weldable Brackets for Gates

E-942FC-1K3SQ Shown

•For most types of outdoor sliding and swinging electric gates.

•Includes a magnetic lock with brackets for armature and magnet.

•Brackets can be welded or bolted directly to gate.

•Holding force: E-942FC-1K3SQ – 1,300 pounds (591kg).

E-942FC-600SQ – 600 pounds (272kg).

•Brackets are zinc-plated for corrosion resistance.

•Brackets have black finish to match most gates.

•Water- and vandal-resistant attractive stainless-steel finish.

•Maintenance-free, factory-sealed design.

• Fail-safe operation (unlocks door if power is removed). (Magnetic lock only)

•Mounted vertically.

•Four knockouts on the junction box.

•Adapter and mounting hardware included.

•Voltage — 12VDC or 24VDC. Prewired for 12VDC operation.

•Current draw — 500mA @ 12VDC (250mA @ 24VDC).

MOUNTING THE ELECTROMAGNETIC LOCK

A.Determine type of gate:

1.Single-swing gate — Gate swings on one end, and comes to rest on a fixed gate post when closed. In this case, a typical installation has the electromagnet fixed to the gate post, and the armature connected to the free end of the gate.

2.Double-swing gate — Two gates swing in the same direction when activated. The electromagnet is fixed to the free end of one gate, and the armature is fixed to the free end of the other.

3.Sliding gate — The gate slides instead of swings away from a fixed gate post. A typical installation has the electromagnet fixed to the gate post, and armature connected to the free end of the gate.

B.Mount the electromagnet — In most cases, the position of the electromagnet will determine the location of the armature plate. Make sure there is space to run the cable.

1.Tack weld bracket into place. (Tack weld only.)

2.Dismount the electromagnetic lock from the bracket. Warning: Failure to remove electromagnetic lock will result in severe damage to lock. Weld 3 or 4 beads about 1” apart. Make sure not to weld the junction box.

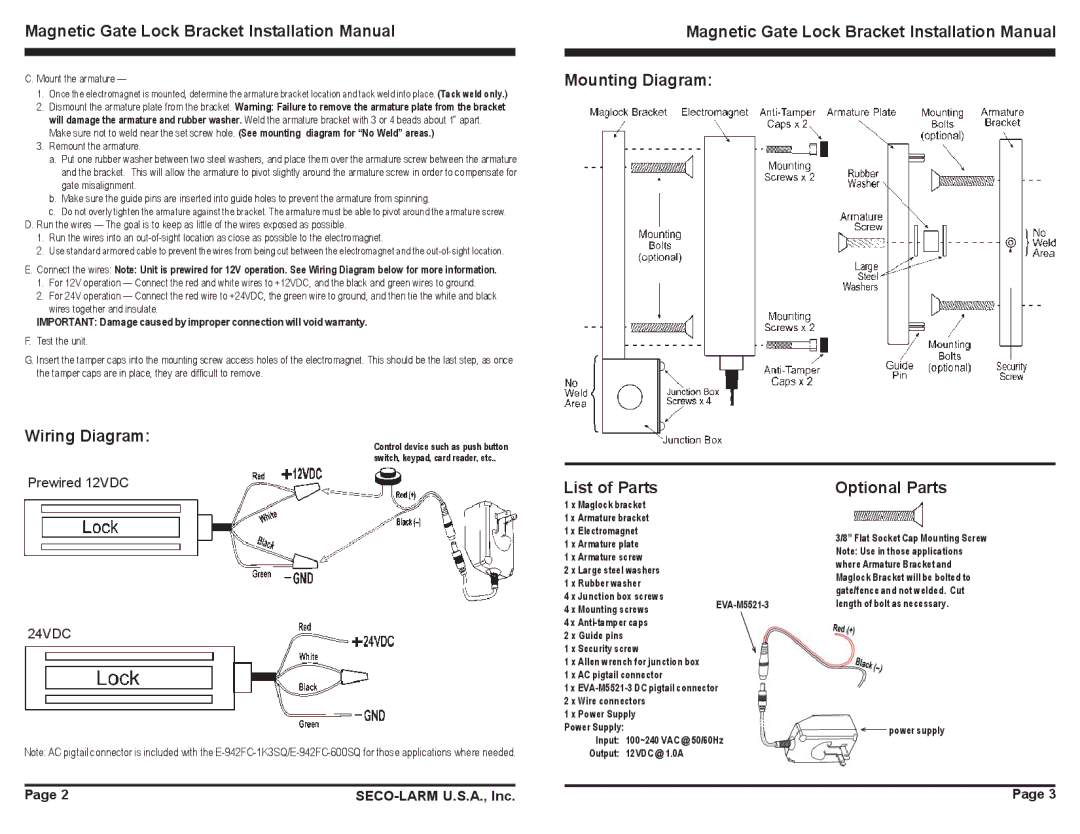

(See diagram for “No Weld” areas.)

3.Remount the electromagnetic lock.
