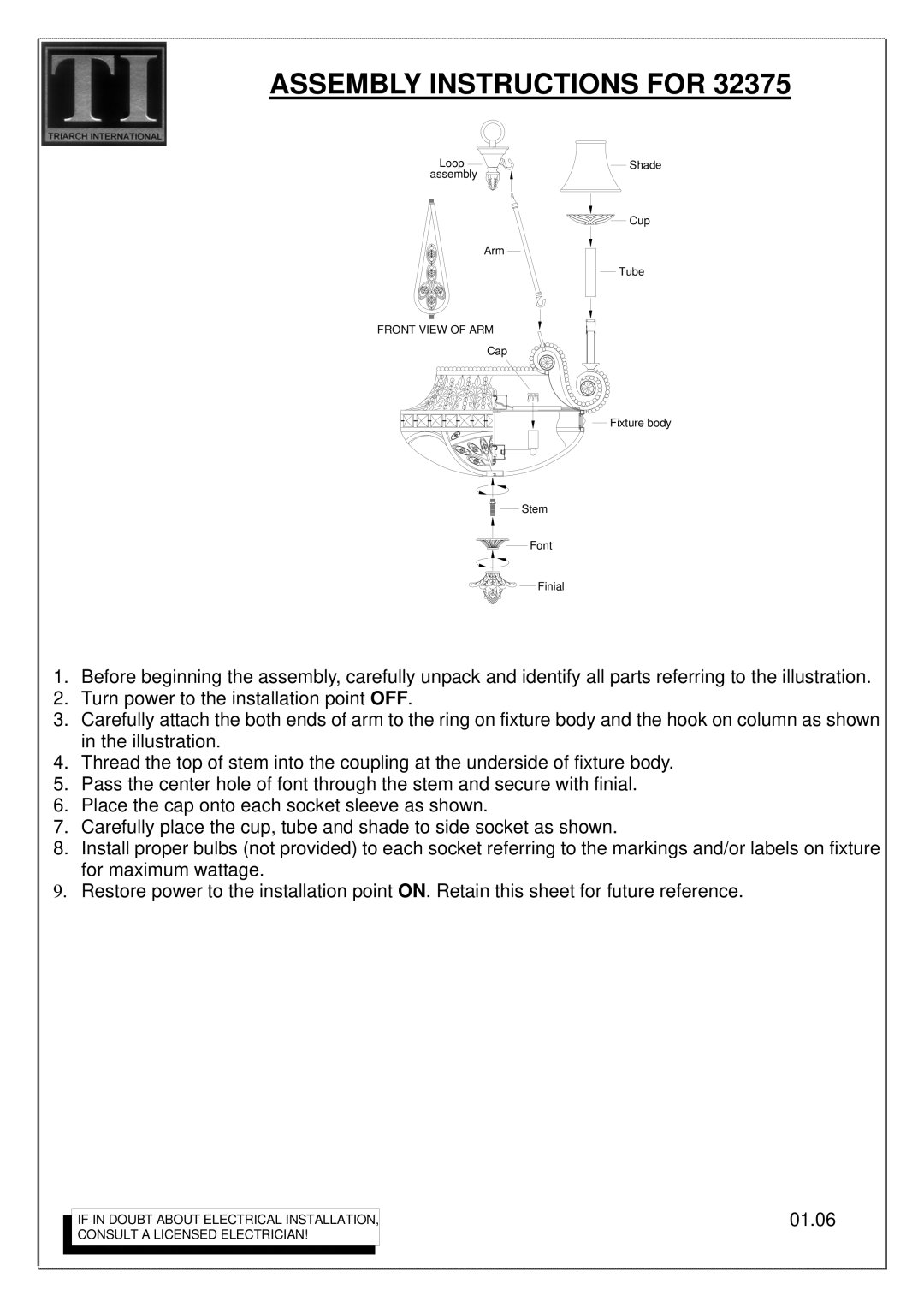

ASSEMBLY INSTRUCTIONS FOR 32375
Loop | Shade |
assembly |
|
| Cup |
| Arm |
| Tube |
FRONT VIEW OF ARM
Cap
Fixture body
Stem
Font
Finial
1.Before beginning the assembly, carefully unpack and identify all parts referring to the illustration.
2.Turn power to the installation point OFF.
3.Carefully attach the both ends of arm to the ring on fixture body and the hook on column as shown in the illustration.
4.Thread the top of stem into the coupling at the underside of fixture body.
5.Pass the center hole of font through the stem and secure with finial.
6.Place the cap onto each socket sleeve as shown.
7.Carefully place the cup, tube and shade to side socket as shown.
8.Install proper bulbs (not provided) to each socket referring to the markings and/or labels on fixture for maximum wattage.
9.Restore power to the installation point ON. Retain this sheet for future reference.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION, CONSULT A LICENSED ELECTRICIAN!
