True Food Service Equipment, Inc.

SAFETY INFORMATION

WARNING!

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the ground prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a grounding plug which mates with a standard grounding wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

If the outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with the properly grounded wall outlet.

The refrigerator should always be plugged into it’s own individual electrical circuit, which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading building wiring circuits which could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

When removing the refrigerator away from the wall, be careful not to roll over or damage the power cord.

USE OF ADAPTER PLUGS

NEVER USE AN ADAPTER PLUG! Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

(North America Use Only!)

NEMA plugs

TRUE uses these types of plugs. If you do not have the right outlet have a certified electrician install the correct power source.

3

www.truemfg.com

3

Page 5
Image 5

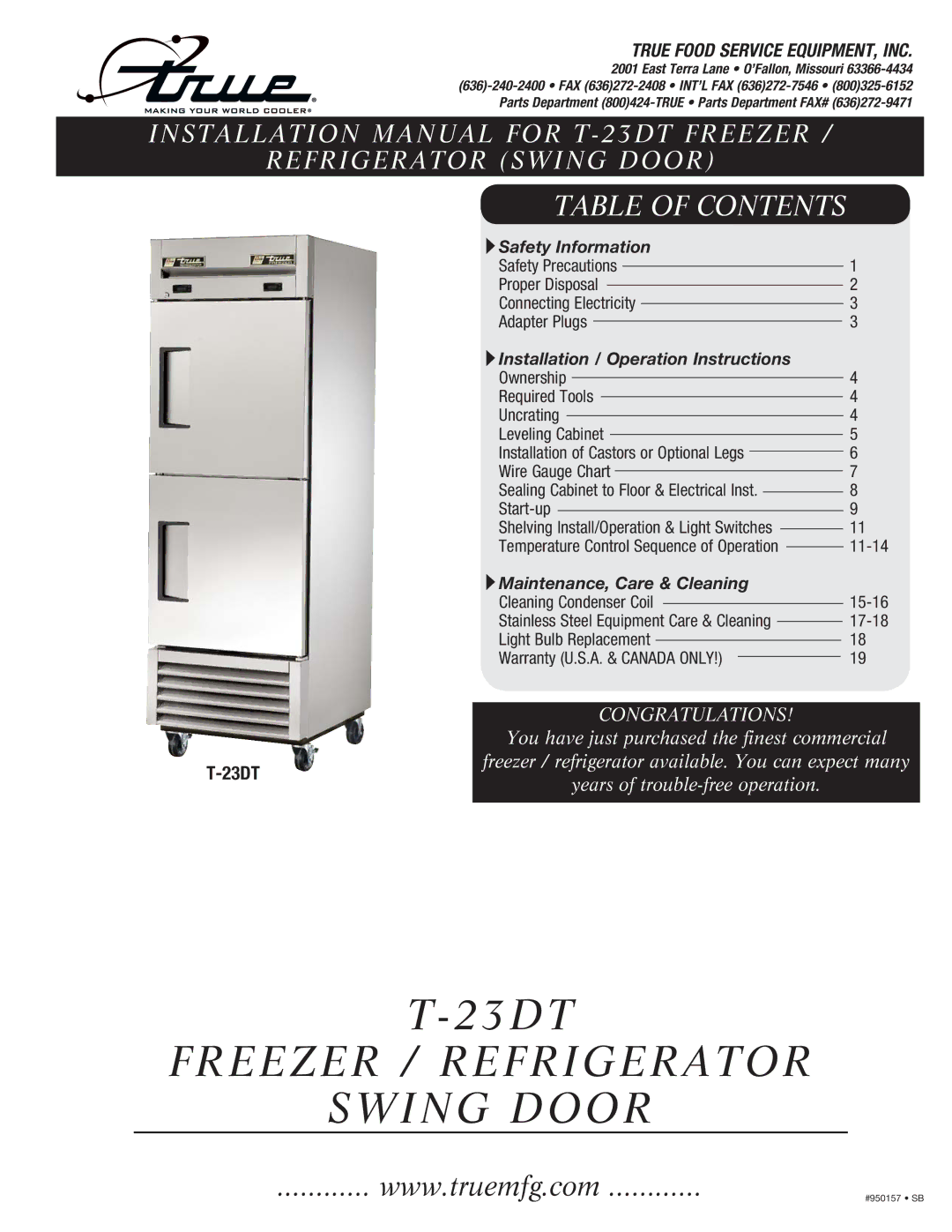

True Manufacturing Company T-23DT installation manual HOW to Connect Electricity

T-23DT specifications

True Manufacturing Company has long been a trusted name in the refrigeration industry, known for its commitment to quality, durability, and innovation. One of the standout offerings in their product line is the True T-23DT, a versatile two-door refrigerator that caters to the needs of commercial kitchens, restaurants, and convenience stores.

The True T-23DT is designed with efficiency and performance in mind, boasting a sturdy construction that ensures longevity. The cabinet is made from high-quality stainless steel, offering not only an attractive appearance but also resistance to corrosion and easy cleaning. The interior features aluminum walls that facilitate optimal airflow and temperature retention, contributing to its reliable cooling performance.

One of the key features of the T-23DT is its state-of-the-art refrigeration system. It utilizes environmentally-friendly R290 hydrocarbon refrigerant, which not only helps reduce energy consumption but also supports superior temperature control. The refrigerator operates within a range of 33°F to 38°F, ensuring that perishable items are stored at safe temperatures. Additionally, the self-contained capillary tube system efficiently circulates refrigerant, resulting in minimal fluctuations in temperature.

The T-23DT also incorporates a digital temperature control system with an external display, allowing users to monitor and adjust settings with ease. The system includes an automatic defrost feature that reduces the risk of ice buildup, thus lowering maintenance needs and enhancing efficiency. True's commitment to user-friendly design is evident in the easy-to-use interface and the clear visibility of temperature readings.

Another notable characteristic of the True T-23DT is its spacious interior. With ample storage capacity, this refrigerator is equipped with heavy-duty, adjustable shelving that allows for customizable configurations to accommodate diverse items and inventory. The doors are designed to remain open beyond 90 degrees for easy access, while magnetic door gaskets ensure a secure seal that enhances energy efficiency.

For added convenience, the T-23DT features 20-gauge stainless steel shelves and LED interior lighting, which provides excellent visibility of stored products without generating excessive heat. The unit is also equipped with 4-inch casters for easy mobility, allowing for flexibility in layout and cleaning.

In summary, the True Manufacturing Company T-23DT is a robust, energy-efficient two-door refrigerator that integrates cutting-edge technology with user-friendly features. Its durability, spacious interior, and reliable performance make it an essential asset for any commercial kitchen looking to maintain food safety and quality. With True, businesses can trust they are investing in a product that will meet their refrigeration needs for years to come.
