Stardance Firebox and Stove Shell/Door

Installation Instructions

for Models:

SDFBVT/SDFBVTC,

SDFBDVR/SDFBVRC

CAUTION: Handle porcelain enamel castings gen- tly. The finish is fragile and can be easily dam- aged. Place castings on a towel, carpet or other protective surface.

To complete installation of your Stardance gas stove, you must first assemble the outer cast shell. Follow the directions for each model. Refer to Homeowner’s Manual for complete installation instructions.

Unpacking the Shell

The Stardance shell is comprised of three cast iron plates plus the front with operable doors. The top plate for the top vent models is a single piece. The top plate for the rear vent models has three (3) pieces, the plate, screen and grate. Compare parts recieved with those shown in Figures 1 & 2. Carefully inspect all parts and immediately report any damaged or missing parts to your dealer/distributor.

Stardance Rear



Vent

Grate





Screen



Stardance

Top

Top Vent



Left Side

Right Side

CAR207

Stardance Front

Front



































w/Doors Package













































































































































































































































Right Door

Left Door

CAR208

Fig. 2 Carton contents for operable door package.

Assembly Instructions

1.Attach the rear skirt to the left side by aligning the key holes with the two wingbolts in the side. If nec- essary, turn the wingbolts to orient the blades verti- cally. (Fig. 3) Slide the skirt downward to engage it behind two washers on the side plate bolts and then tighten both wingbolts.

Side

RibWingbolt

Left

Side

Steel

Tabs

Wingbolt

Rear Skirt

ST470



Fig. 3 Attach rear skirt to the left side.

2.Attach the right side to the rear skirt. (Fig. 4) Move this assembly close to the stove’s final position. Align the two sides at right angles to the back panel as shown in Figure 5.

NOTE: The firebox is shipped with three bolts and spacers on the bottom to prevent any damage to the bottom assembly. The two front bolts should be removed after installation. Use a 7/16” wrench.

Fig. 1 Carton contents for Stardance shell.

30004220 7/07 Rev. 0



Page 1

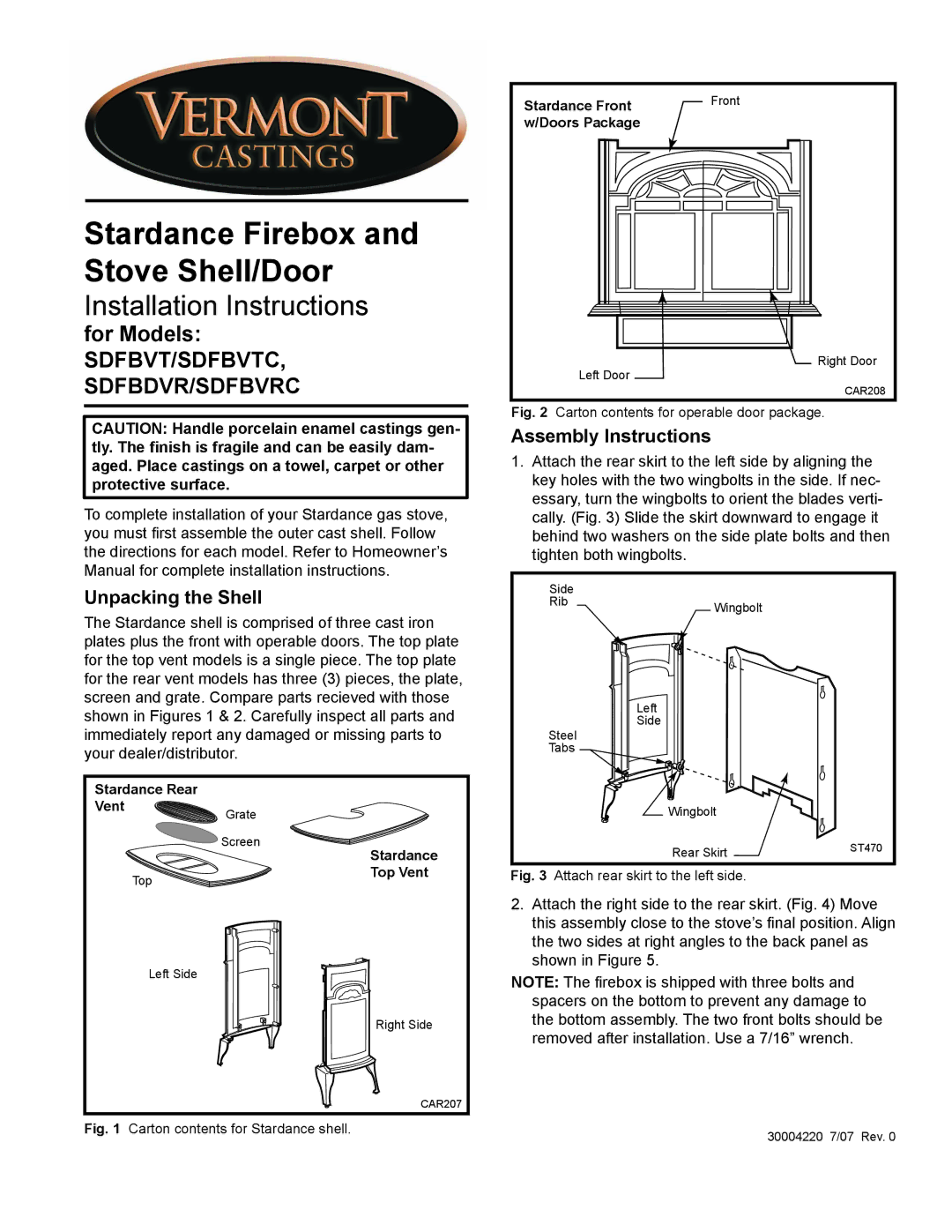

Image 1
