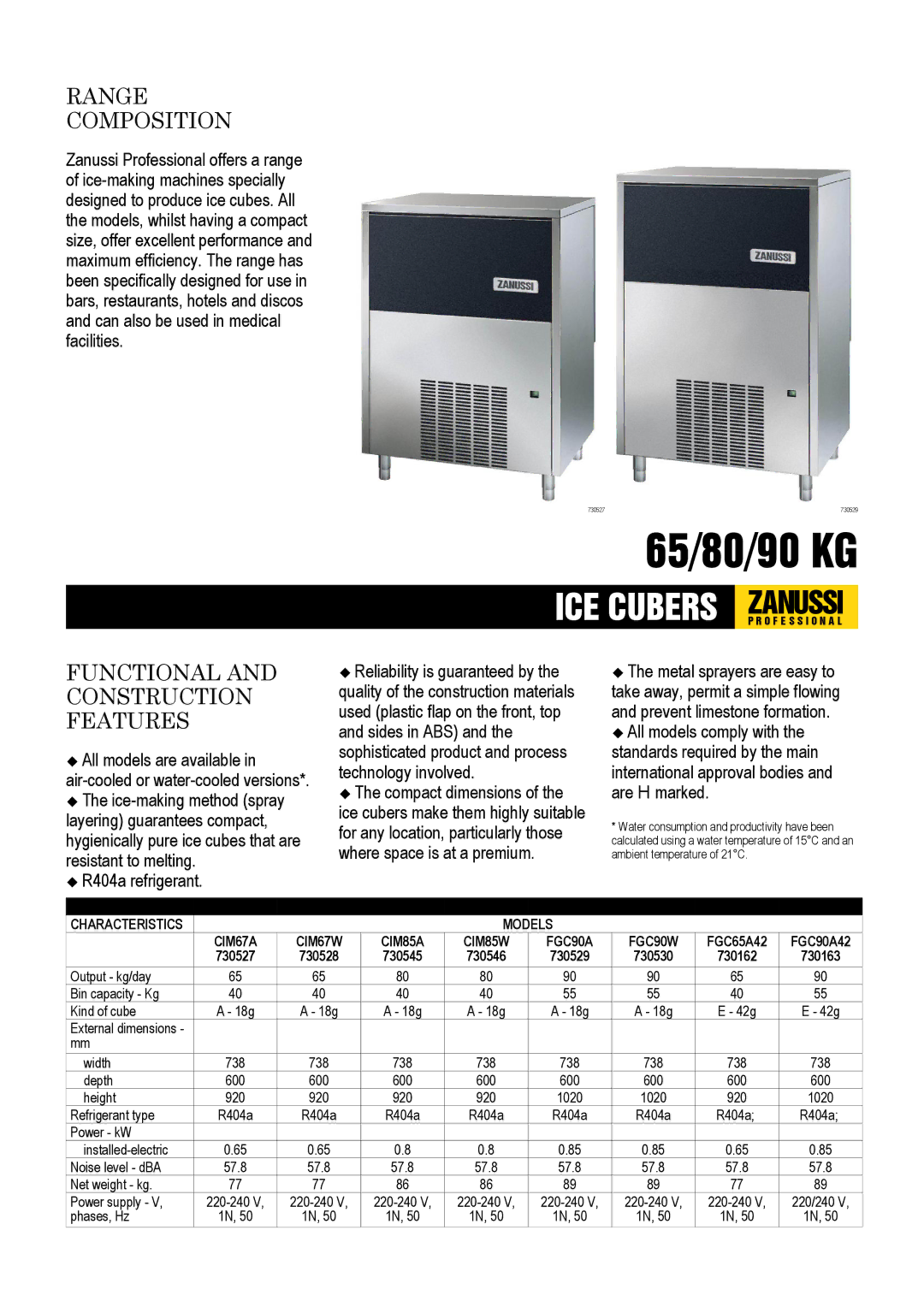

Zanussi FGC90W, CIM85A, FGC65A42, CIM67A, CIM85W, CIM67W, FGC90A42, 730545 dimensions 65/80/90 KG

RANGE

COMPOSITION

Zanussi Professional offers a range of ice-making machines specially designed to produce ice cubes. All the models, whilst having a compact size, offer excellent performance and maximum efficiency. The range has been specifically designed for use in bars, restaurants, hotels and discos and can also be used in medical facilities.

730527730529

65/80/90 KG

ICE CUBERS ZANUSSIP R O F E S S I O N A L

FUNCTIONAL AND CONSTRUCTION FEATURES

�All models are available in

air-cooled or water-cooled versions*.

�The ice-making method (spray layering) guarantees compact, hygienically pure ice cubes that are resistant to melting.

�R404a refrigerant.

�Reliability is guaranteed by the

quality of the construction materials used (plastic flap on the front, top and sides in ABS) and the sophisticated product and process technology involved.

�The compact dimensions of the ice cubers make them highly suitable for any location, particularly those where space is at a premium.

�The metal sprayers are easy to take away, permit a simple flowing and prevent limestone formation.

�All models comply with the standards required by the main international approval bodies and are H marked.

*Water consumption and productivity have been calculated using a water temperature of 15°C and an ambient temperature of 21°C.

TECHNICAL DATA
CHARACTERISTICS				MODELS
	CIM67A	CIM67W	CIM85A	CIM85W	FGC90A	FGC90W	FGC65A42	FGC90A42
	730527	730528	730545	730546	730529	730530	730162	730163
Output - kg/day	65	65	80	80	90	90	65	90
Bin capacity - Kg	40	40	40	40	55	55	40	55
Kind of cube	A - 18g	A - 18g	A - 18g	A - 18g	A - 18g	A - 18g	E - 42g	E - 42g
External dimensions -
mm
width	738	738	738	738	738	738	738	738
depth	600	600	600	600	600	600	600	600
height	920	920	920	920	1020	1020	920	1020
Refrigerant type	R404a	R404a	R404a	R404a	R404a	R404a	R404a;	R404a;
Power - kW
installed-electric	0.65	0.65	0.8	0.8	0.85	0.85	0.65	0.85
Noise level - dBA	57.8	57.8	57.8	57.8	57.8	57.8	57.8	57.8
Net weight - kg.	77	77	86	86	89	89	77	89
Power supply - V,	220-240 V,	220-240 V,	220-240 V,	220-240 V,	220-240 V,	220-240 V,	220-240 V,	220/240 V,
phases, Hz	1N, 50	1N, 50	1N, 50	1N, 50	1N, 50	1N, 50	1N, 50	1N, 50
