Spark Arrester

MAINTENANCE

STRING REPLACEMENT

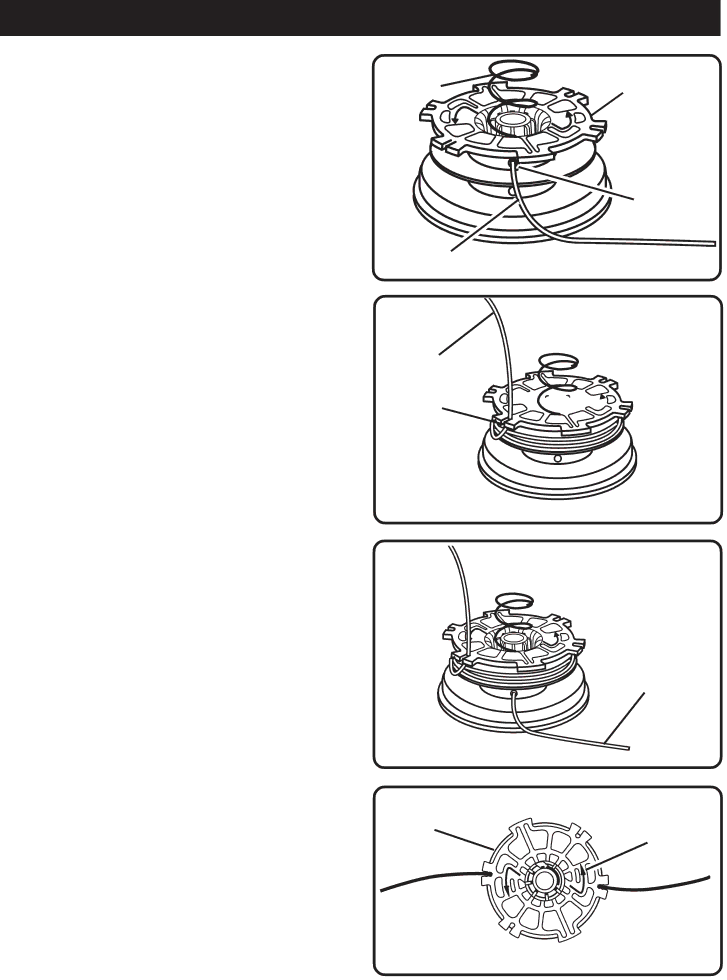

See Figures 12, 13, 14 and 15.

1.Stop the engine, disconnect the sparking plug wire. Hold the string head and unscrew the spool retainer. Turn anticlockwise.

2.Remove the spool from the string head. NOTE: Keep the spring attached to the spool. Remove any old string remaining on the spool.

3.Cut two pieces of string, each being approximately 2.7 m (9 ft) long.

4.Insert the first string into the anchor hole in the upper part of the spool. Wind the first string round the upper part of the spool anticlockwise, as shown by the arrows on the spool. Place string in the slot on upper spool flange, leaving about 152 mm (6 in) extended beyond the slot. Do not overfill. After winding the string, there should be at least 6 mm (1/4 in) between the wound string and the outside edge of the spool.

5.Repeat above step with second string, using the bottom part of spool. Do not overfill.

6.Replace the spool and the spool retainer. Refer to “Spool Replacement“ earlier in this manual.

CLEANING THE EXHAUST PORT AND SILENCER

Depending on the type of fuel used, the type and amount of oil used and/or your operating conditions, the exhaust port and silencer may become blocked with carbon deposits. If you notice a power loss with your petrol-powered tool, a qualified service technician will need to remove these deposits to restore performance.

The spark arrester must be cleaned or replaced every

25 hours or yearly to ensure proper performance of your product. Spark arresters may be in different locations depending on the model purchased. Please contact your nearest service dealer for the location of the spark arrester for your model.

Cleaning Instructions:

■Remove the spark arrester from the silencer.

■If your spark arrester is made of fibreglass, discard and replace.

■If your spark arrester is made of metal, follow these cleaning instructions:

1.Spray the spark arrester with a quality carbon cleaner.

2.Gently clean using a wire brush.

3.Install the new or cleaned spark arrester and reas- semble completely before use.

SPRING

SPOOL

ARROWS ON

SPOOL

ANCHOR

HOLE

FIRST STRING

Fig. 12

FIRST STRING

SLOT

Fig. 13

SECOND

STRING

Fig. 14

SLOT	ARROWS ON
	SPOOL

Fig. 15
