Craftsman 4200 Watt Generator Maintenance and Specifications
Page 11

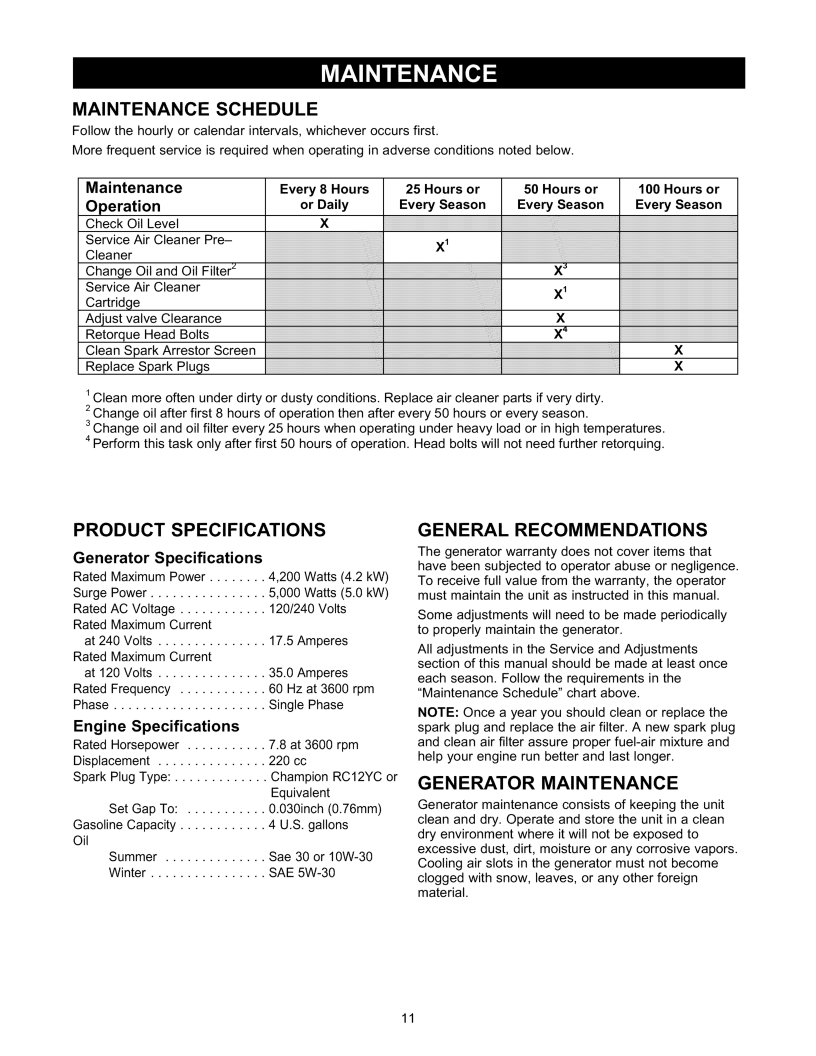

MAINTENANCE SCHEDULE

Follow the hourly or calendar intervals, whichever occurs first.

More frequent service is required when operating in adverse conditions noted below.

Maintenance

Operation

Check Oil Level

Service Air Cleaner Pre- Cleaner

Change Oil and Oil Filter z Service Air Cleaner Cartridge

Adjust valve Clearance Retorque Head Bolts Clean Spark Arrestor Screen Replace Spark Plugs

Every 8 Hours

25 Hours or

50 Hours or

100 Hours or

or Daily

Every Season

Every Season

Every Season

XI

X1

X _

X 1

X

X 4

X

X

1Clean more often under dirty or dusty conditions. Replace air cleaner parts if very dirty. 2Change oil after first 8 hours of operation then after every 50 hours or every season.

3Change oil and oil filter every 25 hours when operating under heavy load or in high temperatures. 4Perform this task only after first 50 hours of operation. Head bolts will not need further retorquing.

PRODUCT

SPECIFICATIONS

Generator

Specifications



Rated Maximum Power

4,200 Watts (4.2 kW)

Surge Power

5,000 Watts (5.0 kW)

Rated AC Voltage

120/240 Volts

Rated Maximum Current



at 240 Volts

...............

17.5 Amperes

Rated Maximum Current



at 120 Volts

...............

35.0 Amperes

Rated Frequency

60 Hz at 3600 rpm

Phase

Single Phase

Engine Specifications



Rated Horsepower

7.8 at 3600 rpm

Displacement

...............

220 cc

Spark Plug Type:

Champion RC12YC or





Equivalent

Set Gap To:

0.030inch (0.76mm)

Gasoline Capacity

4 U.S. gallons

Oil





Summer

..............

Sae 30 or 10W-30

Winter

SAE 5W-30

GENERAL RECOMMENDATIONS

The generator warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain the unit as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain the generator.

All adjustments in the Service and Adjustments section of this manual should be made at least once

each season. Follow the requirements in the "Maintenance Schedule" chart above.

NOTE: Once a year you should clean or replace the spark plug and replace the air filter. A new spark plug and clean air filter assure proper fuel-air mixture and help your engine run better and last longer.

GENERATOR MAINTENANCE

Generator maintenance consists of keeping the unit clean and dry. Operate and store the unit in a clean dry environment where it will not be exposed to excessive dust, dirt, moisture or any corrosive vapors. Cooling air slots in the generator must not become clogged with snow, leaves, or any other foreign material.

11
